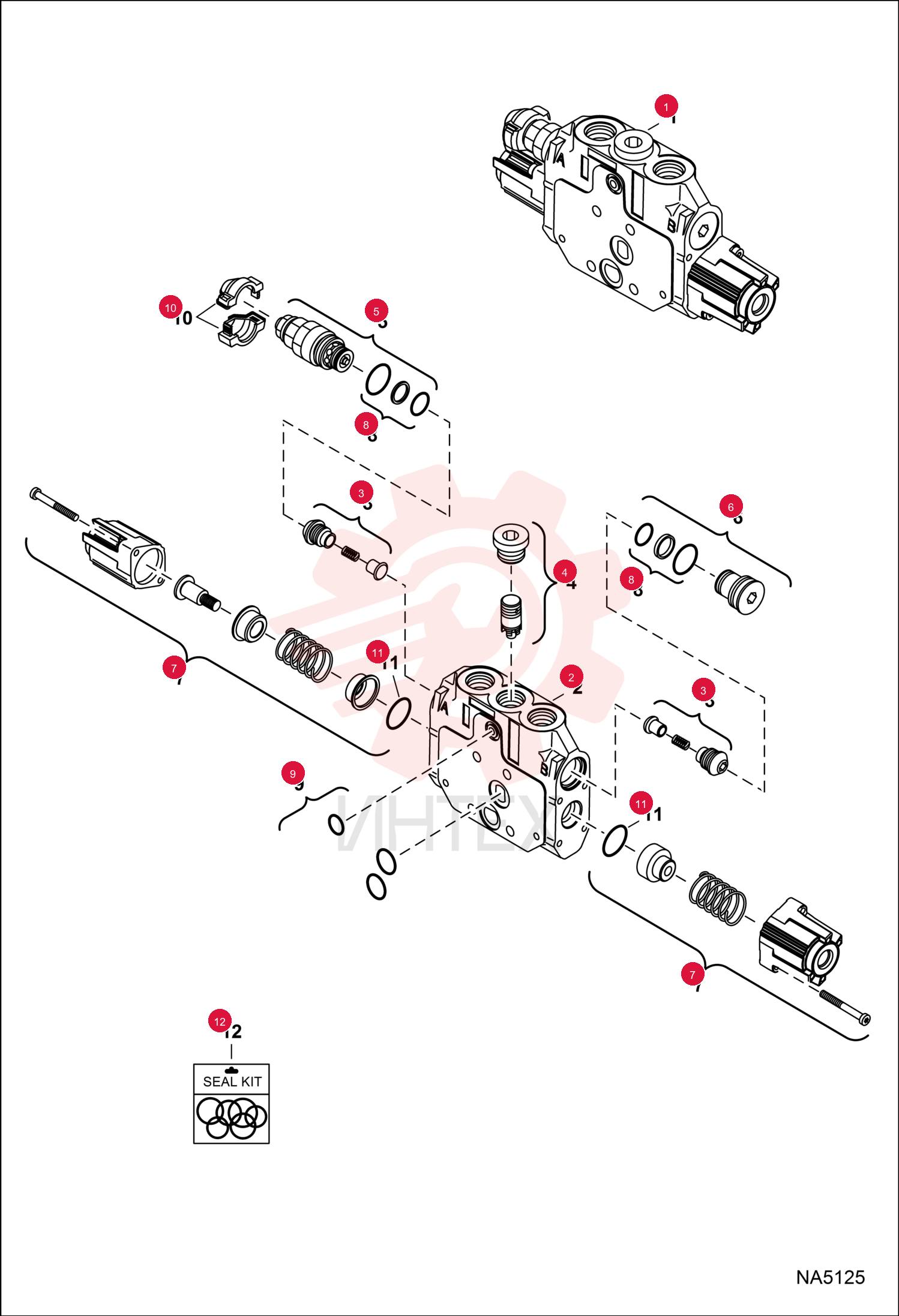

SECTION, VALVE 7016128 (1)

SECTION, VALVE 7016128 (1)

SECTION, VALVE 7016128 (1)

1 7016128

  • 7016128 - SECTION
  • VALVE
  • Ref. 2-12

2 6677689

  • 6677689 - CHECK VALVE

3 6677690

  • 6677690 - KIT
  • COMPENSATOR

4 6685249

  • 6685249 - VALVE
  • RELIEF

5 6677471

  • 6677471 - PLUG

6 7016143

  • 7016143 - KIT
  • CAP
  • includes both sides

7 6910713

  • 6910713 - SEAL KIT

8 6677467

  • 6677467 - KIT
  • SEAL

9 6687072

  • 6687072 - CAP

10 6677470

  • 6677470 - SEAL KIT
  • Ref. 9 & 11
