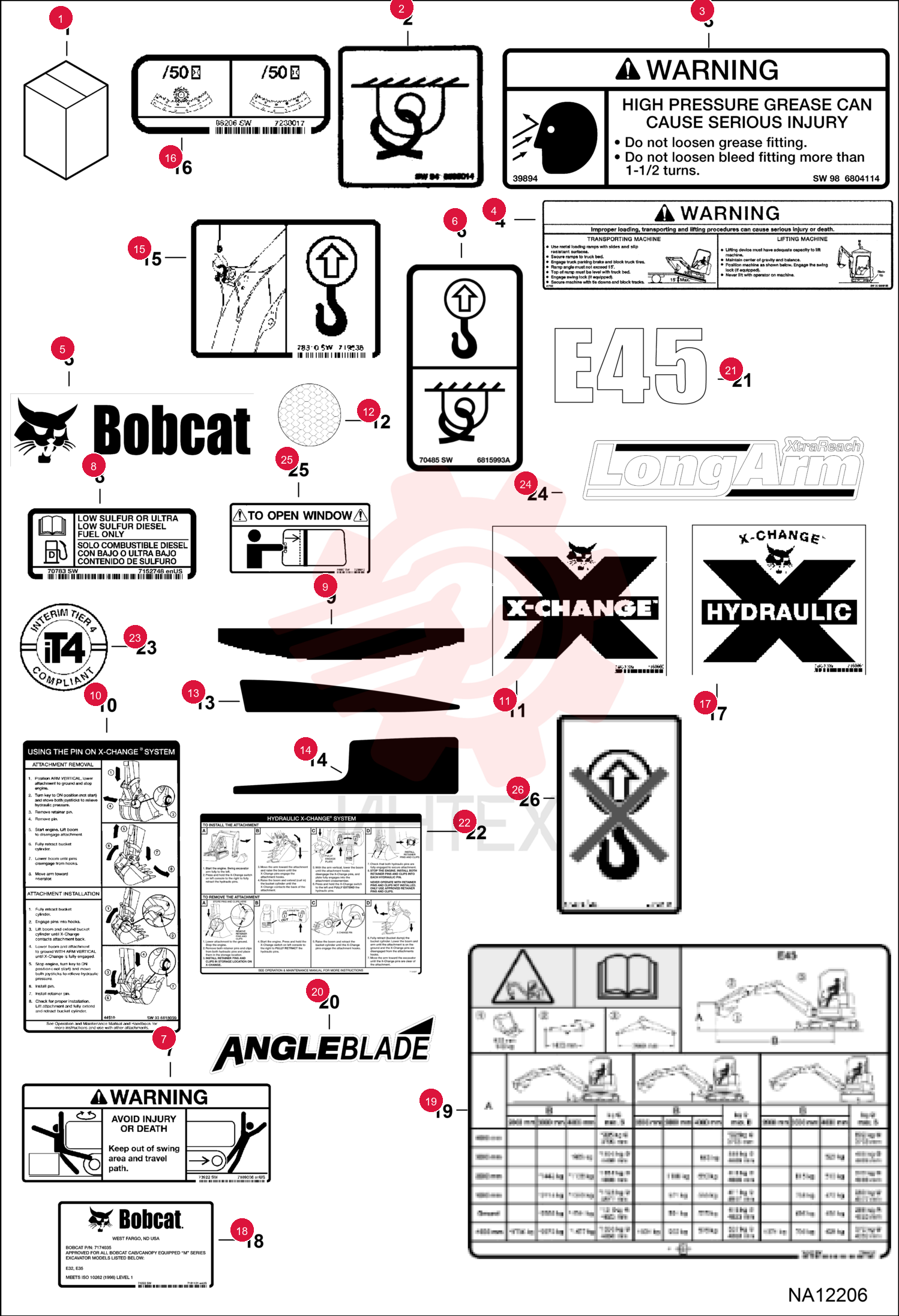

KIT, DECAL 7186636CA (3)

KIT, DECAL 7186636CA (3)

KIT, DECAL 7186636CA (3)

1 7186636CA

  • 7186636CA - KIT
  • DECAL

2 7186636BR

  • 7186636BR - KIT
  • DECAL

3 7186636AR

  • 7186636AR - KIT
  • DECAL
  • Includes Ref. 4
  • 7-8
  • 10
  • 19
  • & 22. Also includes Ref. 5-6
  • 11-12
  • 14-16
  • & 21 on Ill. NA12204.

4 6595014

  • 6595014 - DECAL
  • tie down

5 7168039

  • 7168039 - DECAL
  • WARNING
  • - high pressure grease - Was 6804114

6 7178178

  • 7178178 - DECAL
  • WARNING

7 6727324

  • 6727324 - DECAL
  • LOGO BOBCAT AND HEAD
  • 210 mm (8.25") long

8 7167716

  • 7167716 - DECAL
  • LOGO
  • 338 mm (13.32") long

9 6815993

  • 6815993 - DECAL
  • LIFT
  • tie down

10 7169006

  • 7169006 - DECAL
  • STAY CLEAR

11 7152748

  • 7152748 - DECAL
  • FUEL DIESEL

12 7180283

  • 7180283 - TREAD
  • SAFETY

13 6818059

  • 6818059 - DECAL
  • Using Pin-On X-Change

14 7160880

  • 7160880 - DECAL
  • X-CHANGE
  • Pin-On

15 7106627

  • 7106627 - DECAL
  • REFLECTIVE
  • reflective

16 7200747

  • 7200747 - DECAL
  • COVER
  • Was 7178412

17 7178413

  • 7178413 - DECAL
  • COVER
  • left

18 7195361

  • 7195361 - DECAL
  • BOOM LIFT
  • clevis mount

19 7238017

  • 7238017 - DECAL
  • GREASE REMOTE

20 7160881

  • 7160881 - DECAL
  • X-CHANGE
  • hydraulic - not in kit

21 7181128

  • 7181128 - DECAL
  • GUARD TOP
  • cab - not in kit

22 7181127

  • 7181127 - DECAL
  • GUARD TOP
  • canopy - not in kit

23 7355636

  • 7355636 - DECAL SPECIAL APPLICATIONS
  • not in kit - Was 7181121

24 7304857

  • 7304857 - DECAL LIFT CAPACITY
  • no text - std arm - transparent window sticker

25 7304858

  • 7304858 - DECAL LIFT CAPACITY
  • no text - long arm - transparent window sticker

26 7188431

  • 7188431 - DECAL
  • CAPACITY LIFT
  • std arm

27 7304553

  • 7304553 - DECAL
  • LIFT
  • no text - std arm W/heavy counterweight

28 7221251

  • 7221251 - DECAL
  • CAPACITY LIFT
  • extendable arm

29 7188441

  • 7188441 - DECAL
  • CAPACITY LIFT
  • std arm W/heavy counterweight

30 7188433

  • 7188433 - DECAL
  • CAPACITY LIFT
  • long arm

31 7308510

  • 7308510 - DECAL LIFT CAPACITY
  • no text - std arm W/heavy counterweight - transparent window sticker

32 7177956

  • 7177956 - DECAL
  • BLADE ANGLE
  • not in kit

33 7181022

  • 7181022 - DECAL
  • MODEL
  • not in kit

34 7220131

  • 7220131 - DECAL
  • X-CHANGE
  • using hydraulic X-Change W/O retainer pin

35 7204037

  • 7204037 - DECAL
  • interim tier 4 - not in kit

36 7147433

  • 7147433 - DECAL
  • ARM LONG
  • not in kit

37 7235842

  • 7235842 - DECAL
  • WINDOW
  • not in kit

38 7282101

  • 7282101 - DECAL
  • LIFT NO
  • no-text
