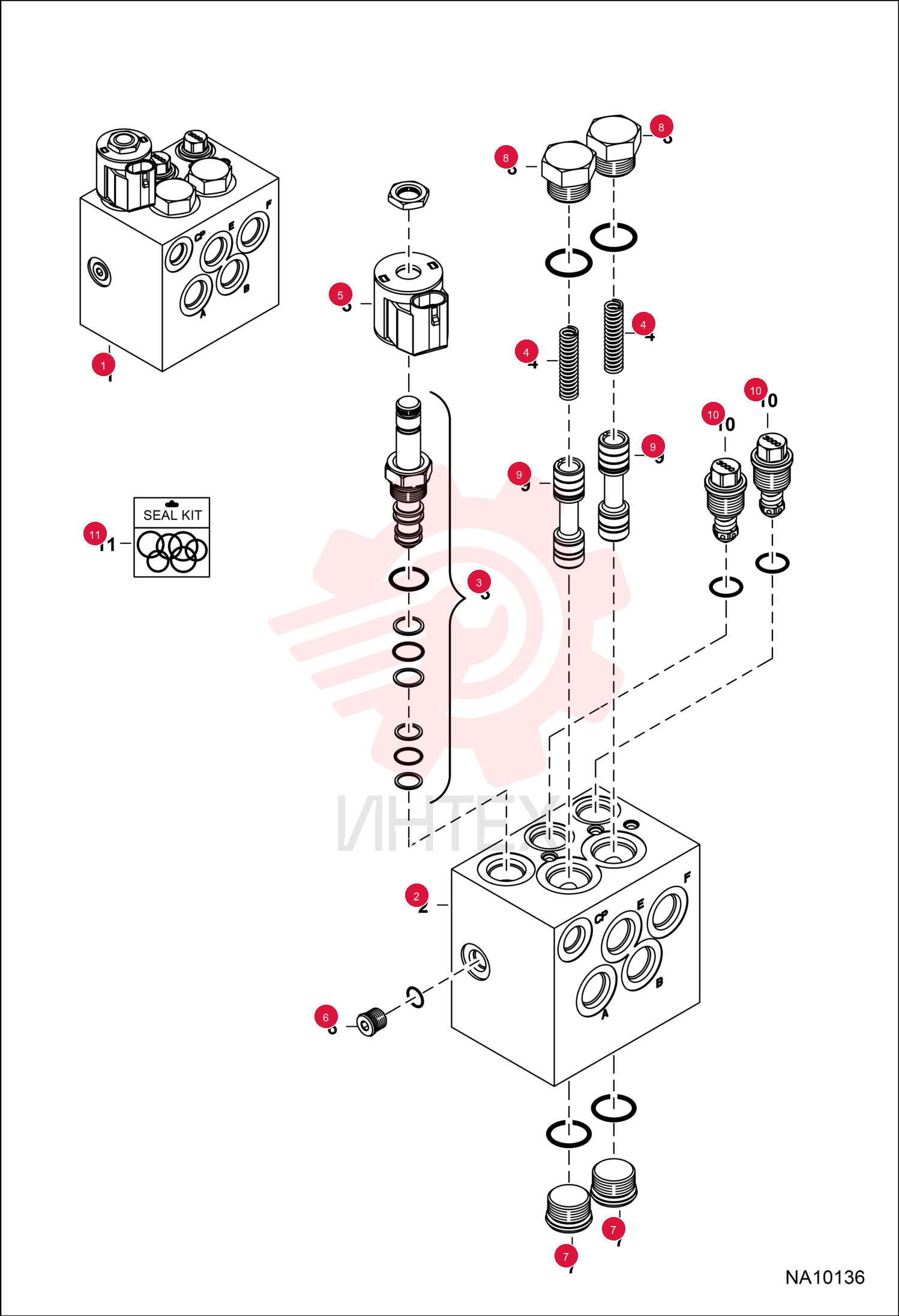

MANIFOLD, HYD ASSY 7245840 (4)

MANIFOLD, HYD ASSY 7245840 (4)

MANIFOLD, HYD ASSY 7245840 (4)

1 7245840

  • 7245840 - MANIFOLD
  • HYD ASSY
  • Ref. 2-10

2 79K12

  • 79K12 - O RING 10

3 6680957

  • 6680957 - VALVE

4 7232334

  • 7232334 - SPRING
  • COMPRESSION

5 6688356

  • 6688356 - COIL
  • Was 7232804

6 79K4

  • 79K4 - O RING 10

7 7235664

  • 7235664 - PLUG

8 79K10

  • 79K10 - O RING 10

9 7235667

  • 7235667 - PLUG
  • SOCKET

10 79K10

  • 79K10 - O RING 10

11 7267121

  • 7267121 - PLUG
  • Was 7235860

12 79K8

  • 79K8 - O RING 10

13 7245853

  • 7245853 - VALVE
  • RELIEF

14 6673188

  • 6673188 - SEAL KIT
  • Use W/Ref. 3 - (3) O-rings & (4) back-up rings
