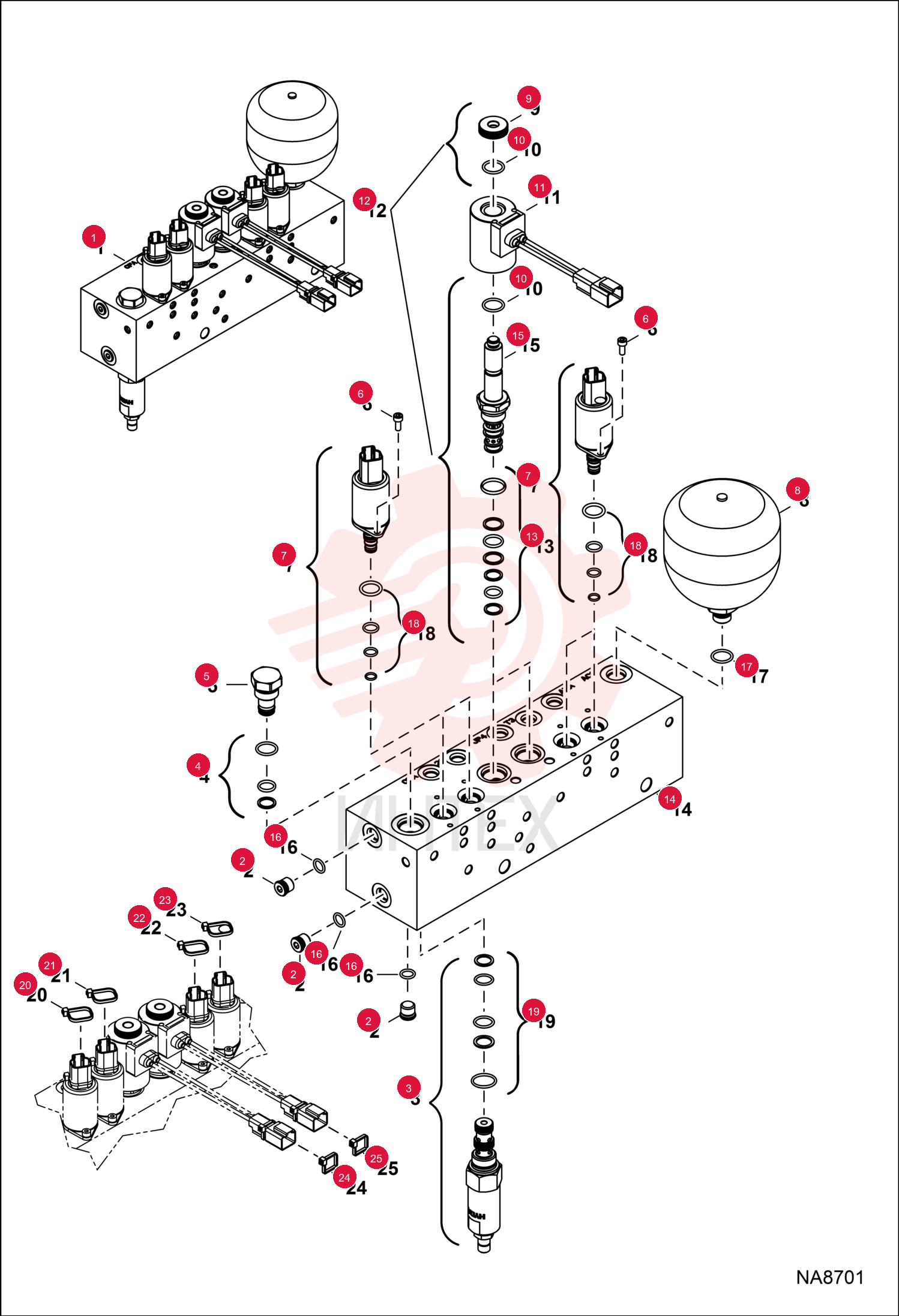

MANIFOLD, HYD ASSY 7231545 (1)

MANIFOLD, HYD ASSY 7231545 (1)

MANIFOLD, HYD ASSY 7231545 (1)

1 7231545

  • 7231545 - MANIFOLD
  • HYD ASSY
  • Ref. 2-25

2 7235664

  • 7235664 - PLUG
  • W/Ref. 16

3 7232748

  • 7232748 - VALVE

4 7232750

  • 7232750 - VALVE
  • CHECK
  • Was 6664026

5 3GM410

  • 3GM410 - BOLT

6 7369457

  • 7369457 - KIT SEAL

7 7232745

  • 7232745 - VALVE
  • PROPORTIONAL

8 6669537

  • 6669537 - ACCUMULATOR
  • W/Ref. 17

9 6679076

  • 6679076 - NUT
  • Was 6688625

10 6679509

  • 6679509 - O-RING

11 7010625

  • 7010625 - COIL
  • SOLENOID

12 6678988

  • 6678988 - ASSY
  • VALVE
  • does not include Ref. 11

13 6679078

  • 6679078 - KIT
  • SEAL

14 79K6

  • 79K6 - O RING 10
