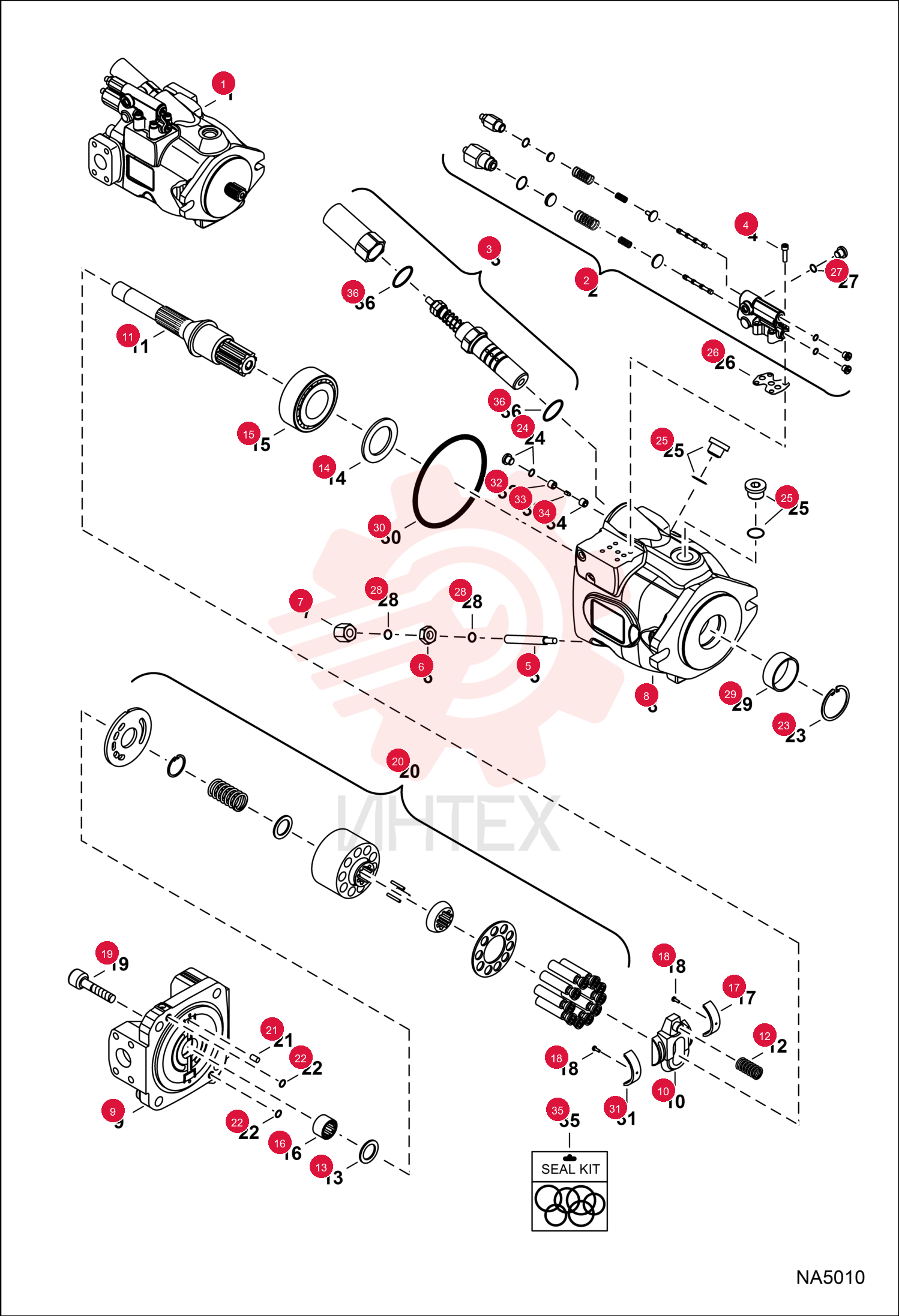

PUMP, HYD PISTON 7010203 (3)
1 7010203
- 7010203 - PUMP
- HYD PISTON
- Ref. 2-34 & 36
2 7010203REM
- 7010203REM - PUMP
- HYD PISTON
- Ref. 2-34 & 36
3 6691520
- 6691520 - CONTROLLER
4 7015986
- 7015986 - VALVE
- CONTROL
5 6672255
- 6672255 - BOLT
6 6690386
- 6690386 - SCREW
7 6690387
- 6690387 - NUT
8 6690388
- 6690388 - CAP NUT
9 6682879
- 6682879 - PIN
- - Was 6688039
10 6682879
- 6682879 - PIN
- - Was 6688039
11 7015989
- 7015989 - SWASHPLATE
12 6686747
- 6686747 - SHAFT DRIVE
- Was 7015990
13 7015991
- 7015991 - SPRING
14 6691449
- 6691449 - SHIM
15 6691461
- 6691461 - RING
16 6672228
- 6672228 - BEARING
- Was 7015992
17 6691452
- 6691452 - BEARING
18 7015993
- 7015993 - BEARING
19 6690404
- 6690404 - SCREW
20 7015995
- 7015995 - BOLT
21 7015988
- 7015988 - GROUP
- ROTATING
22 6672235
- 6672235 - DOWEL PIN
23 6690407
- 6690407 - SEAL
- O-RING
24 6691458
- 6691458 - RING
25 6690107
- 6690107 - PLUG
- Was 6671832
26 6690385
- 6690385 - SCREW
27 6691519
- 6691519 - GASKET
28 6691491
- 6691491 - PLUG
29 6691457
- 6691457 - O-RING
30 7015994
- 7015994 - SEAL
- SHAFT
31 6691455
- 6691455 - O-RING
32 7015993
- 7015993 - BEARING
33 7015987
- 7015987 - KIT
- SEAL
- Ref. 22-30
34 6691456
- 6691456 - O-RING
