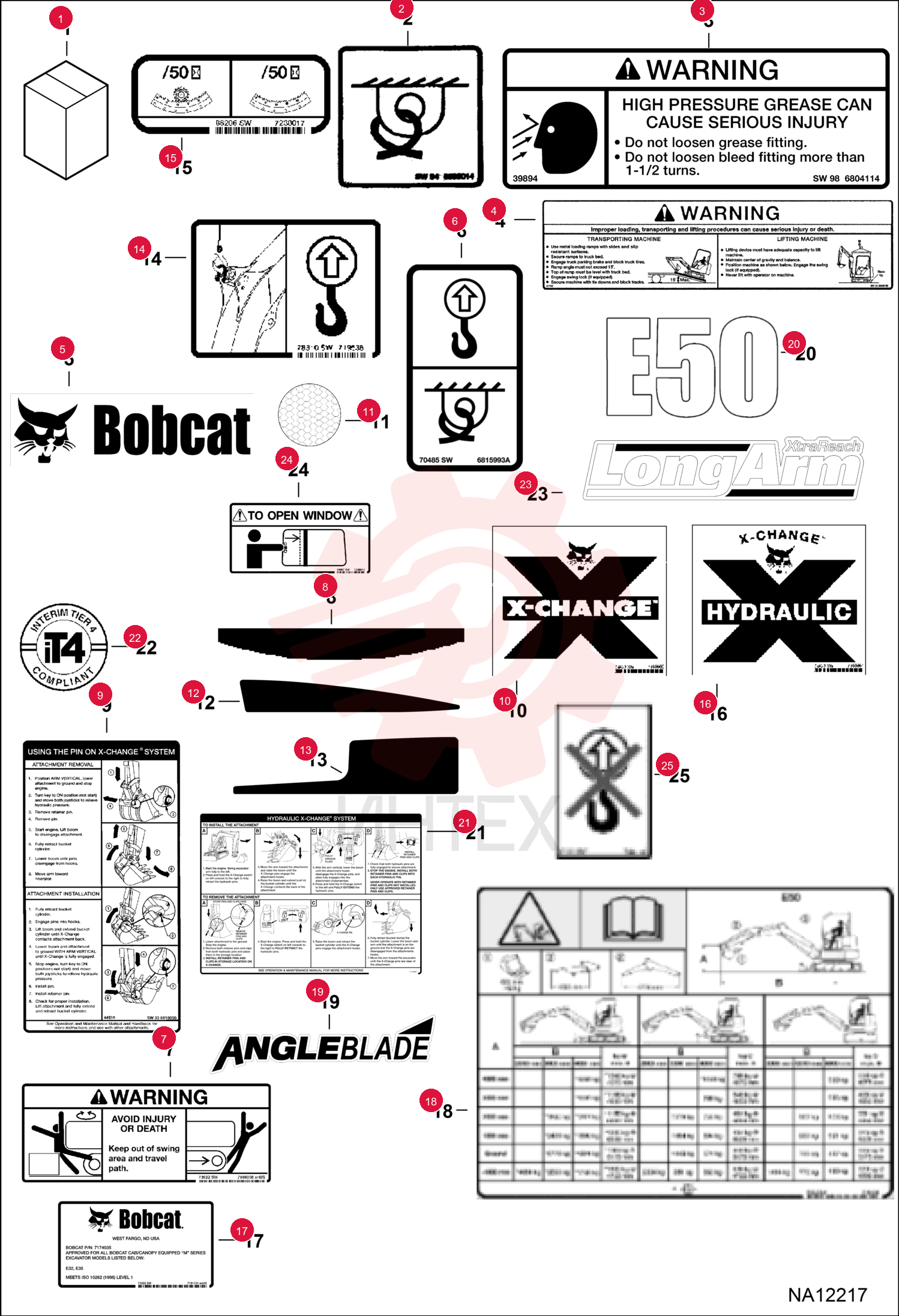

KIT, DECAL 7186636CA (5)

KIT, DECAL 7186636CA (5)

KIT, DECAL 7186636CA (5)

1 7186636CA

  • 7186636CA - KIT
  • DECAL

2 7186636BR

  • 7186636BR - KIT
  • DECAL

3 7186636AR

  • 7186636AR - KIT
  • DECAL
  • Includes Ref. 4
  • 7
  • 9
  • 18
  • & 21. Also Includes Ref. 11
  • 13
  • & 18 on Ill. NA12215.

4 6595014

  • 6595014 - DECAL
  • tie down

5 7168039

  • 7168039 - DECAL
  • WARNING
  • - high pressure grease

6 7178178

  • 7178178 - DECAL
  • WARNING

7 6815489

  • 6815489 - DECAL
  • LOGO BOBCAT AND HEAD

8 6727324

  • 6727324 - DECAL
  • LOGO BOBCAT AND HEAD
  • 210 mm (8.25") long

9 7167716

  • 7167716 - DECAL
  • LOGO
  • 338 mm (13.32") long

10 6815993

  • 6815993 - DECAL
  • LIFT
  • tie down

11 7169006

  • 7169006 - DECAL
  • STAY CLEAR

12 7180283

  • 7180283 - TREAD
  • SAFETY

13 6818059

  • 6818059 - DECAL
  • Using Pin-On X-Change

14 7160880

  • 7160880 - DECAL
  • X-CHANGE
  • Pin-On

15 7106627

  • 7106627 - DECAL
  • REFLECTIVE
  • reflective

16 7200747

  • 7200747 - DECAL
  • COVER
  • Was 7178412

17 7178413

  • 7178413 - DECAL
  • COVER
  • left

18 7195361

  • 7195361 - DECAL
  • BOOM LIFT
  • clevis mount

19 7238017

  • 7238017 - DECAL
  • GREASE REMOTE

20 7160881

  • 7160881 - DECAL
  • X-CHANGE
  • hydraulic - not in kit

21 7181128

  • 7181128 - DECAL
  • GUARD TOP
  • cab - not in kit

22 7181127

  • 7181127 - DECAL
  • GUARD TOP
  • canopy - not in kit

23 7355636

  • 7355636 - DECAL SPECIAL APPLICATIONS
  • not in kit - Was 7181121

24 7304554

  • 7304554 - DECAL
  • LIFT
  • no text - std arm W/heavy counterweight

25 7282109

  • 7282109 - DECAL
  • CAPACITY LIFT
  • no text

26 7188442

  • 7188442 - DECAL
  • CAPACITY LIFT
  • std arm W/heavy counterweight

27 7188436

  • 7188436 - DECAL
  • CAPACITY LIFT
  • long arm

28 7188435

  • 7188435 - DECAL
  • CAPACITY LIFT
  • std arm

29 7304859

  • 7304859 - DECAL LIFT CAPACITY
  • no text - long arm - transparent window decal

30 7308511

  • 7308511 - DECAL LIFT CAPACITY
  • no text - std arm - transparent window decal

31 7177956

  • 7177956 - DECAL
  • BLADE ANGLE
  • not in kit

32 7175347

  • 7175347 - DECAL
  • MODEL
  • not in kit

33 7220131

  • 7220131 - DECAL
  • X-CHANGE
  • using hydraulic X-Change W/O retainer pin

34 7204037

  • 7204037 - DECAL
  • interim tier 4 - not in kit

35 7147433

  • 7147433 - DECAL
  • ARM LONG
  • not in kit

36 7235842

  • 7235842 - DECAL
  • WINDOW
  • not in kit

37 7282101

  • 7282101 - DECAL
  • LIFT NO
