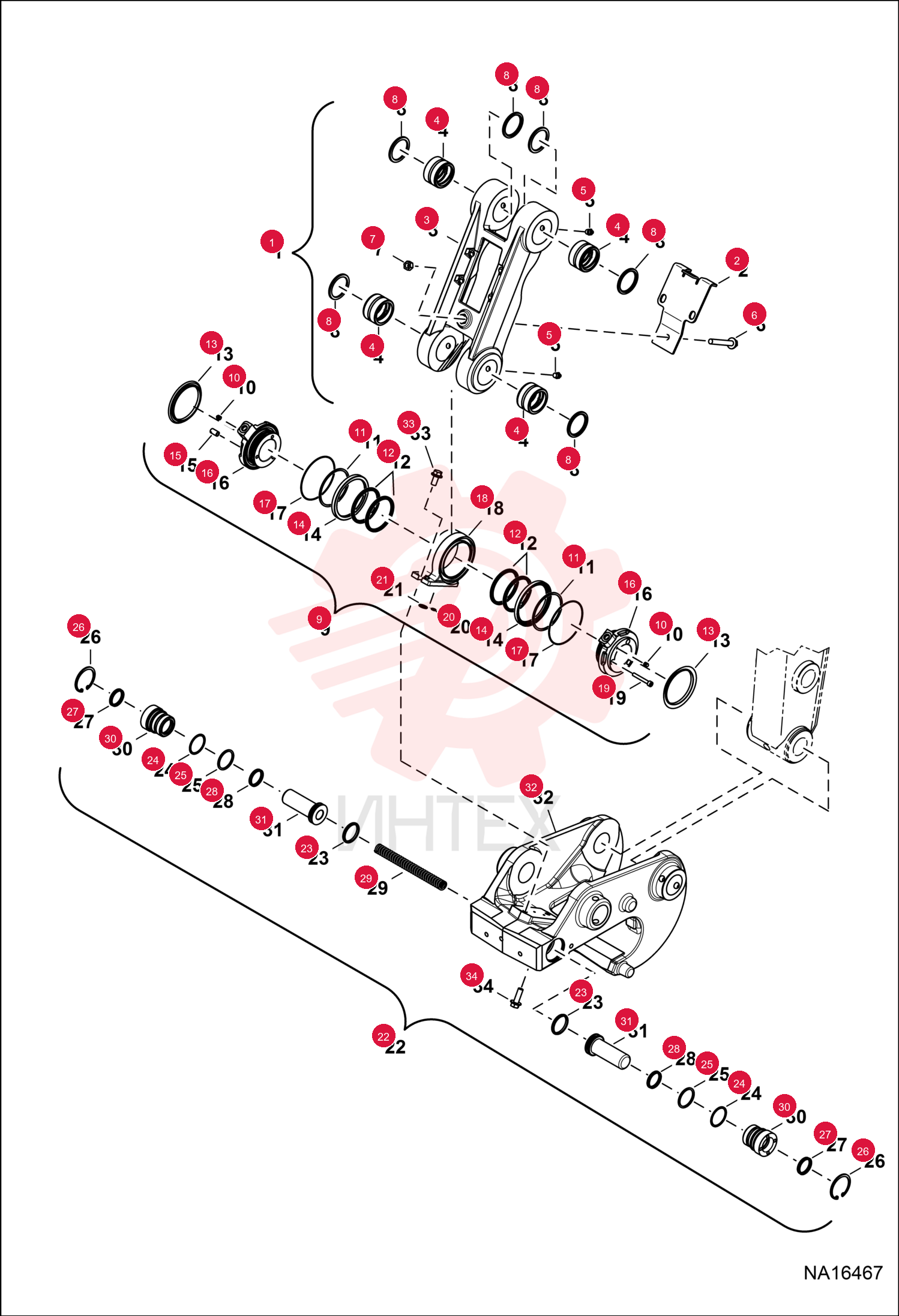

LINK ASSY PXCH 7359222 (1)

LINK ASSY PXCH 7359222 (1)

LINK ASSY PXCH 7359222 (1)

1 7359222

  • 7359222 - LINK ASSY PXCH
  • Ref. 2-8

2 7355440

  • 7355440 - PLATE X-CHANGE LARGE

3 7173292

  • 7173292 - BUSHING
  • WEAR

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 59CM1070

  • 59CM1070 - BOLT
  • FLANGE

6 4DM10

  • 4DM10 - NUT HEX

7 6669287

  • 6669287 - SEAL

8 7172955

  • 7172955 - SWIVEL
  • HYD ASSY
  • Ref. 10-21

9 6686678

  • 6686678 - PLUG

10 6686681

  • 6686681 - RING

11 6688745

  • 6688745 - SEAL

12 6688850

  • 6688850 - SEAL

13 6689565

  • 6689565 - SEAL

14 6816599

  • 6816599 - NUT

15 7120821

  • 7120821 - SWIVEL

16 7121281

  • 7121281 - O-RING

17 3GM645

  • 3GM645 - SCREW

18 58K10

  • 58K10 - O RING 10

19 58K015

  • 58K015 - O-RING 10

20 7368556

  • 7368556 - X-CHANGE HYDRAULIC
  • - Was 7353931

21 6680402

  • 6680402 - SEAL

22 6690161

  • 6690161 - SEAL PIN

23 6680998

  • 6680998 - RING

24 23J32

  • 23J32 - RING SNAP
  • Was - 21GM810

25 6688634

  • 6688634 - SEAL PIN

26 6683233

  • 6683233 - O-RING

27 6815592

  • 6815592 - SPRING

28 7344288

  • 7344288 - HEAD X-CHANGE

29 7345192

  • 7345192 - PISTON PIN

30 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

31 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP
