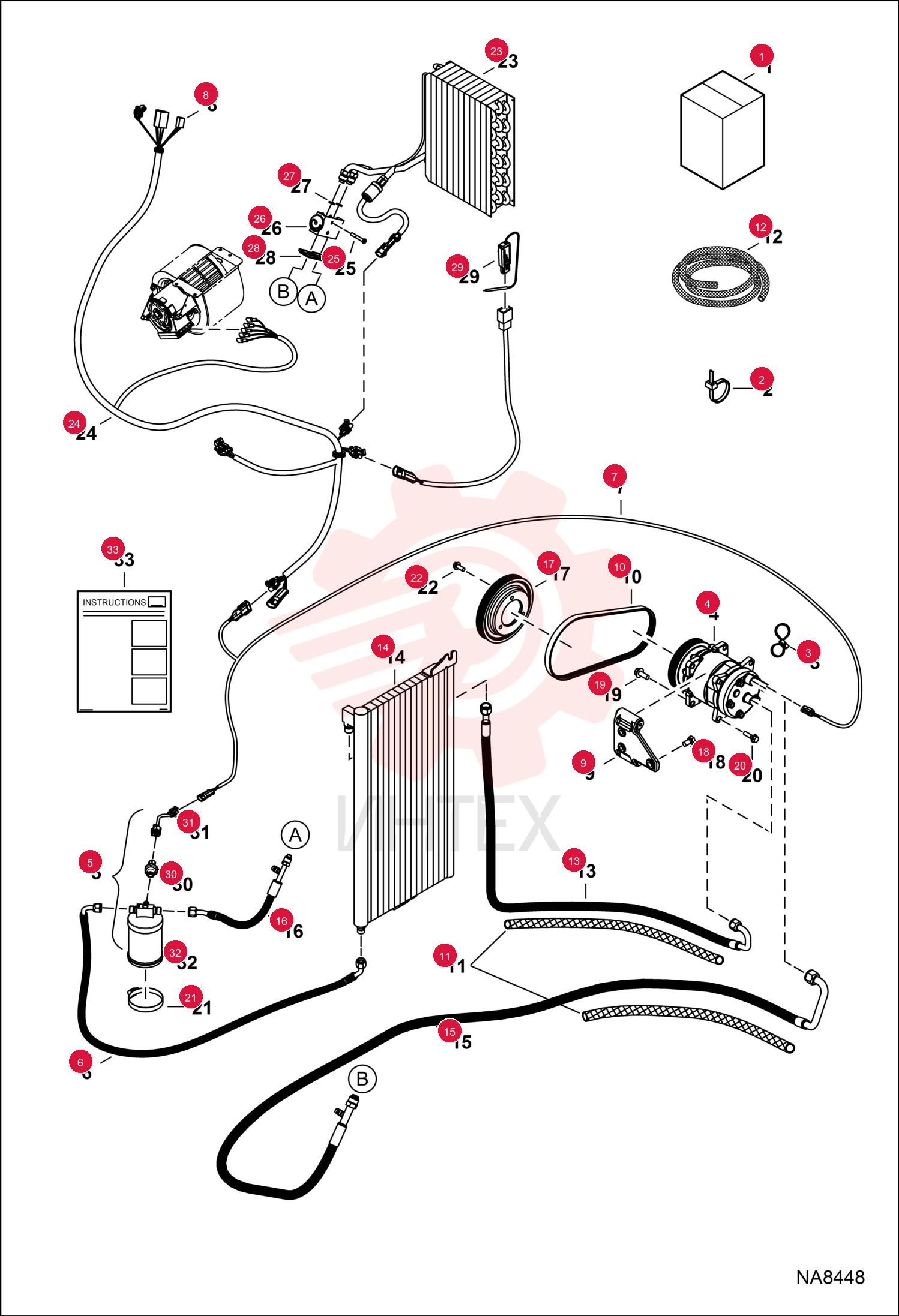

KIT, A/C 7242848

KIT, A/C 7242848

KIT, A/C 7242848

1 7242848

  • 7242848 - KIT
  • A/C
  • Ref. 2-29 & 33

2 6624289

  • 6624289 - STRAP
  • TIE

3 7009540

  • 7009540 - STRAP
  • DOUBLE

4 7279139

  • 7279139 - COMPRESSOR
  • A/C
  • Was 7023585

5 7286432

  • 7286432 - DRIER
  • A/C ASSY
  • Ref. 30-32

6 7156286

  • 7156286 - HOSE
  • A/C ASSY

7 7168895

  • 7168895 - HARNESS
  • AC CLUTCH

8 7169112

  • 7169112 - SWITCH
  • ROCKER A/C

9 7178319

  • 7178319 - MOUNT
  • COMPRESSOR A/C

10 7178328

  • 7178328 - BELT
  • COMPRESSOR A/C

11 7187433

  • 7187433 - COVER
  • HOSE BULK/FT
  • sold per foot

12 7220718

  • 7220718 - HOSE
  • A/C ASSY

13 7220720

  • 7220720 - CONDENSER
  • A/C

14 7009978

  • 7009978 - O-RING
  • #10

15 7220899

  • 7220899 - HOSE
  • A/C ASSY

16 7009976

  • 7009976 - O-RING
  • #6

17 7223708

  • 7223708 - HOSE
  • A/C ASSY

18 7181153

  • 7181153 - PULLEY
  • A/C
  • Was 7239092

19 1CM1020

  • 1CM1020 - SCREW HEX CAP

20 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

21 29CM830

  • 29CM830 - SCREW HEX

22 42H48

  • 42H48 - CLAMP 5

23 59CM816

  • 59CM816 - BOLT

24 7031403

  • 7031403 - EVAPORATOR

25 7240761

  • 7240761 - HARNESS
  • HVAC

26 7031404

  • 7031404 - SCREW

27 6675534

  • 6675534 - BLOCK
  • VALVE A/C
  • Was 7193538

28 7240092

  • 7240092 - O-RING
  • Was 7009977

29 7193533

  • 7193533 - GROMMET

30 7286436

  • 7286436 - SWITCH
  • PRESS

31 7286434

  • 7286434 - HARNESS
  • A/C

32 6990890ENUS

  • 6990890ENUS - INSTRUCTIONS
  • Was 6990890
