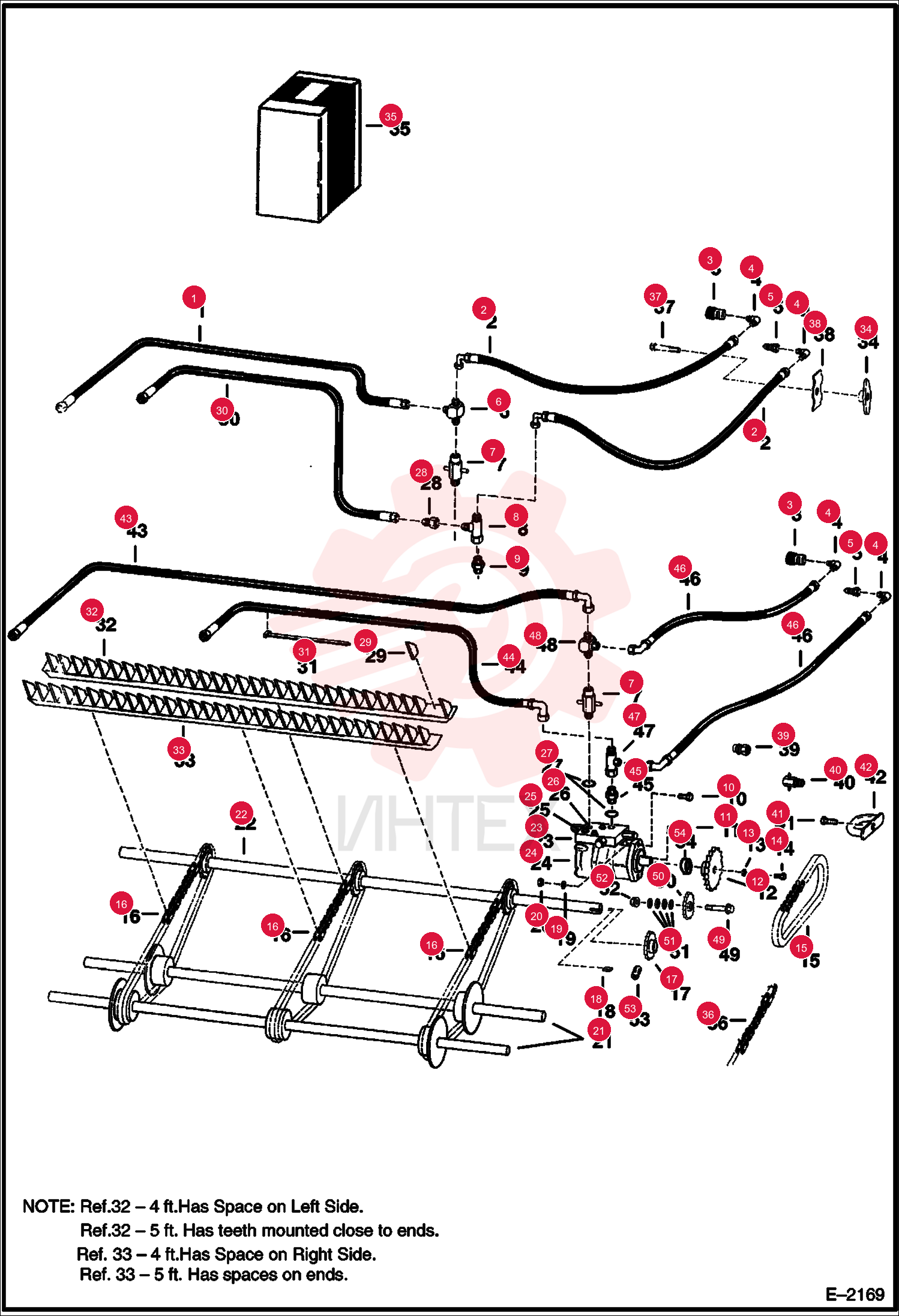

HOSE 6531679
1 6531679
- 6531679 - HOSE
- Was 6529553
2 6531677
- 6531677 - HOSE
- 70
3 48K16
- 48K16 - O RING 10
- for poppet couplers
4 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
5 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
6 6598758
- 6598758 - COUPLER FF FEMALE
- straight
7 17KB1012
- 17KB1012 - FITTING
- HYD ELBOW
- Use with flush face couplers - Was 1302104B
8 17K7
- 17K7 - ELBOW
- Use with poppet couplers
9 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
10 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
11 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
12 6529554
- 6529554 - TEE
13 6635878
- 6635878 - VALVE
- CHECK
14 13K7
- 13K7 - FITTING
15 731793
- 731793 - CONNECTR
16 9G832
- 9G832 - CAPSCREW
- Countersunk
17 17C828
- 17C828 - BOLT
- Hex Head
18 7J4100
- 7J4100 - KEY
19 6594497
- 6594497 - SPROCKET
- SWEEPER BRUSHED
- 17 teeth
20 6594643
- 6594643 - SPROCKET
- 5 ft.(1524mm) 10 GPM - 17 teeth
21 6594452
- 6594452 - SPROCKET
- 4 ft.(1219
- 2mm) 5 GPM - 22 teeth
22 872229
- 872229 - WASHER
- Was 4E000006B
23 17C616
- 17C616 - BOLT 5
- Was 17C000620B
24 6632444
- 6632444 - OFFSTLINK
- offset - maximum Qty. of 4
25 6632387
- 6632387 - LINK
- CONNECTING
- connector - 60H (.75") pitch W/ keeper
26 6594642
- 6594642 - CHAIN
- DRIVE
- .75" pitch
27 6675307
- 6675307 - LINK
- CONN.
- connector - 2060H (1.5" pitch) - W/cotter pin
28 6707729
- 6707729 - LINK
- connector - 2060H (1.5" pitch) - W/flat keeper
29 6707727
- 6707727 - CHAIN
- 2060
- All 2060H (1.5" pitch)
30 6515191
- 6515191 - LINK
- connector - 60H (.75" pitch) - peened
31 6594453
- 6594453 - CHAIN
- 60H (.75" pitch) & 2060H (1.5" pitch) - combination
32 6594498
- 6594498 - SPROCKET
- 5 ft. (1524mm) & 6 ft. (1829mm) 10 GPM-20 teeth
33 6594417
- 6594417 - SPROCKET
- 4 ft. (1219
- 2mm) 5 GPM-12 teeth
34 7J5104
- 7J5104 - KEY
35 4E8
- 4E8 - WASHER
36 61D8
- 61D8 - NUT 5
37 6704582
- 6704582 - SHAFT
- intermediate & adjusting - 6 ft. (1829mm)
38 6704580
- 6704580 - SHAFT
- intermediate & adjusting - 5 ft. (1524mm) - Was 6594622
39 6704579
- 6704579 - SHAFT
- intermediate & adjusting - 4 ft. (1219
- 2mm) - Was 6594441
40 6594448
- 6594448 - SHAFT DRV
- drive - 4 ft. (1219
- 2mm)
41 6594627
- 6594627 - SHAFT
- RAKE DRIVE
- drive - 5 ft. (1524mm)
42 6594730
- 6594730 - SHAFT
- DRIVE
- drive - 6 ft. (1829mm)
43 25E17
- 25E17 - WASHER FLAT PLAIN
44 17C632
- 17C632 - BOLT 5
45 79K8
- 79K8 - O RING 10
46 784244
- 784244 - ADAPTOR
47 6704959
- 6704959 - TOOTH
- Was 6594457
48 6704671
- 6704671 - HOSE
49 6531678
- 6531678 - HOSE
- Was 6529552
50 6624289
- 6624289 - STRAP
- TIE
51 6707730
- 6707730 - BAR"A"6A
- A - 6 ft. (1829mm) - (39) of Ref. 29 & (3) of Ref. 36 - W/2060H
52 6594690
- 6594690 - BAR ASSY
- A - 6 ft. (1829mm) - (39) of Ref. 29 & (3) of Ref. 36
53 6708524
- 6708524 - BAR"A"5A
- A - 5 ft. (1524mm) - W/2060H Chain & Link - W/Qty. 32 of Ref. 29 & Qty. 3 of Ref. 36
54 6594688
- 6594688 - BAR ASSY
- A - 5 ft. (1524mm) - W/Qty. 32 of Ref. 29 & Qty. 3 of Ref. 36
55 6594686
- 6594686 - BAR ASSY
- A - 4 ft.(1219
- 2mm) - W/Qty. 25 of - Ref. 29 - SEE NOTE
56 6707731
- 6707731 - BAR"A"6A
- B - 6 ft. (1829mm) - (38) of Ref. 29 & (3) of Ref. 36 - W/2060H
57 6594689
- 6594689 - BAR ASSY
- B - 6 ft. (1829mm) - (38) of Ref. 29 & (3) of Ref. 36
58 6708525
- 6708525 - BAR"B"5A
- B - 5 ft. (1524mm) - W/2060H Chain & Link - W/Qty. 31 of Ref. 29 & Qty. 3 of Ref. 36
59 6594687
- 6594687 - BAR ASSY
- B - 5 ft. (1524mm) - W/Qty. 31 of Ref. 29 & Qty. 3 of Ref. 36
60 6594685
- 6594685 - BAR ASSY
- B - 4 ft.(1219
- 2mm) - W/Qty. 25 of - Ref. 29 - SEE NOTE
61 6647668
- 6647668 - KNOB
- plastic
62 6594733
- 6594733 - RAKE
- LANDSCAPE CHAIN ASSY
- W/Ref. 16
- 29
- 32 & 33 - 6 ft. (1829 mm)
63 6594629
- 6594629 - RAKE
- LANDSCAPE CHAIN ASSY
- W/Ref. 16
- 29
- 32 & 33 - 5 ft. (1524 mm)
64 6594451
- 6594451 - RAKE ASSEMBLY
- W/Ref. 16
- 29
- 32 & 33 - 4 FT. (1219
- 2 mm)
65 6594599
- 6594599 - CHAIN DRIVE
- service - 7 Pitches-60H & 2060H
66 6707728
- 6707728 - CHAIN
- RAKE LANDSCAPE
- service - 5 Pitches-2060H chain
67 17C680
- 17C680 - BOLT
68 6563353
- 6563353 - CLAMP
69 1312113
- 1312113 - FTG
70 6631698
- 6631698 - VALVE
- RESTRICTOR
- 3000 PSI (20684 kPa) installs in tilt cylinder rod end
71 37C652
- 37C652 - BOLT
72 6706160
- 6706160 - GUIDE
- HOSE ASSY
73 6704672
- 6704672 - HOSE
74 6704671
- 6704671 - HOSE
75 15K6
- 15K6 - ADAPTER
76 6537669
- 6537669 - HOSE
- 64"(1625
- 6mm) long
77 13K6
- 13K6 - TEE
78 21K6
- 21K6 - FITTING
79 31C1036
- 31C1036 - SCREW
80 6661615
- 6661615 - SPROCKET
81 25E24
- 25E24 - WASHER
82 57D10
- 57D10 - NUT
83 33G608
- 33G608 - SCREW
- Was 34G000506B
84 6704852
- 6704852 - BUSHING
