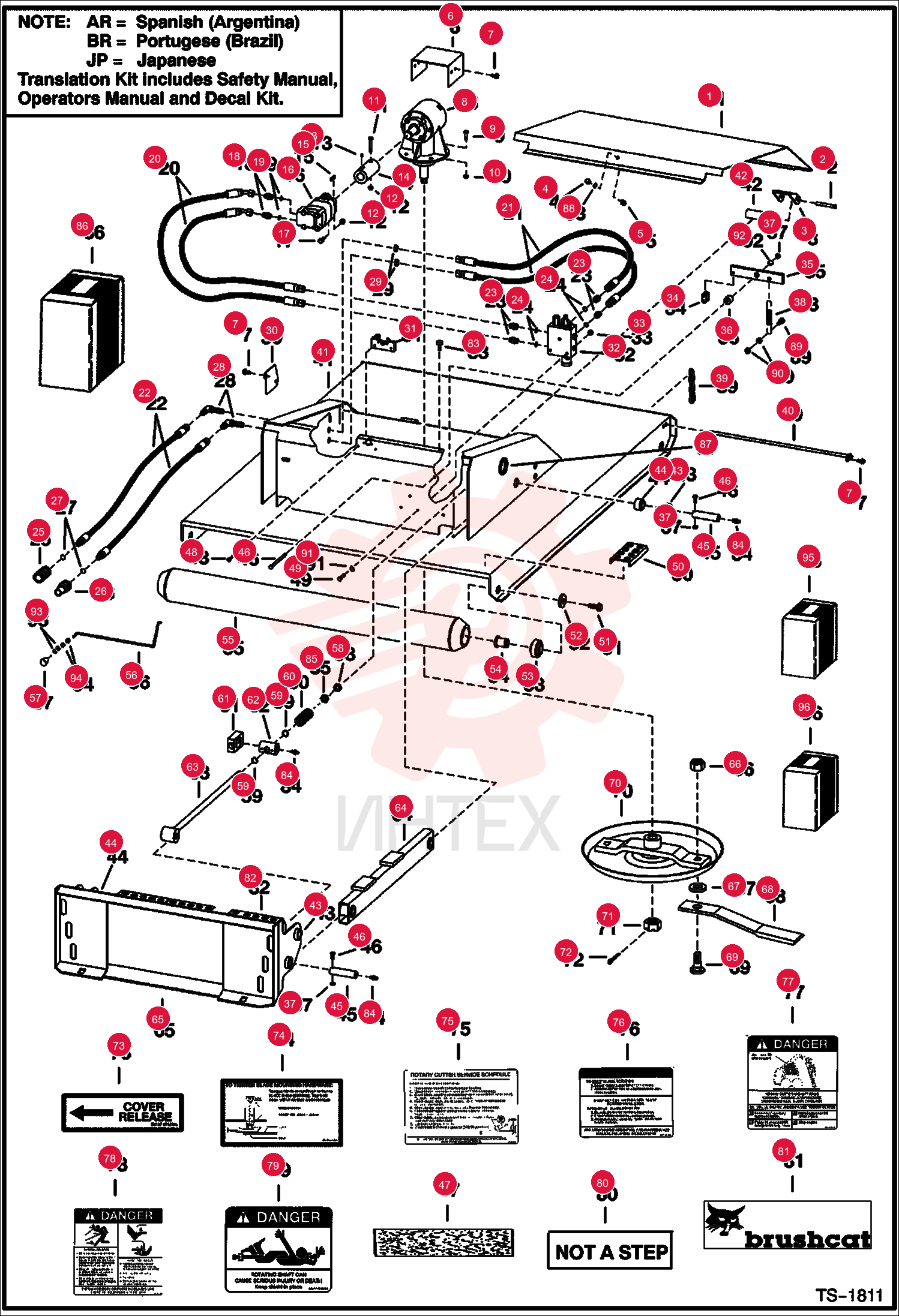

SHIELD 6714714

SHIELD 6714714

SHIELD 6714714

1 6714714

  • 6714714 - SHIELD

2 6564340

  • 6564340 - PIN HINGE

3 6562225

  • 6562225 - HINGE

4 35C716

  • 35C716 - BOLT

5 6568047

  • 6568047 - STRIKER

6 6714687

  • 6714687 - SHIELD

7 84G3712

  • 84G3712 - SCREW THD ROLLING TT

8 17C1032

  • 17C1032 - BOLT

9 89D10

  • 89D10 - NUT

10 17C848

  • 17C848 - BOLT

11 89D8

  • 89D8 - NUT

12 15G410

  • 15G410 - SET SCREW

13 6714930

  • 6714930 - COUPLER

14 7J4204

  • 7J4204 - KEY

15 93G828

  • 93G828 - BOLT

16 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR
  • W/Ref. 19 - Was 15KV00007B

17 97K10

  • 97K10 - O-RING 10
  • for flared end

18 99K10

  • 99K10 - O-RING

19 6816334

  • 6816334 - HOSE
  • Was 6807342

20 6809881

  • 6809881 - HOSE
  • Was 6715386

21 6715387

  • 6715387 - HOSE

22 97K12

  • 97K12 - O-RING
  • flared end

23 15KB1212

  • 15KB1212 - FITTING
  • HYD CONNECTOR
  • W/Ref. 24 - Was 15KN00008B

24 99K12

  • 99K12 - O-RING

25 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

26 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

27 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - Was 6674688

28 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

29 79K12

  • 79K12 - O RING 10

30 88F7

  • 88F7 - ELBOW
  • bulkhead

31 88F7

  • 88F7 - ELBOW
  • bulkhead - W/O-ring on flare end - Was 88FN00007B

32 97K10

  • 97K10 - O-RING 10
  • for flared end

33 86F7

  • 86F7 - NUT 5

34 6714713

  • 6714713 - COVER

35 6665531

  • 6665531 - LATCH

36 83D5

  • 83D5 - LKNUT HEX FLG GR8

37 6715370

  • 6715370 - LINK

38 6714717

  • 6714717 - ARM
  • shutoff

39 6715397

  • 6715397 - MOUNT

40 89D6

  • 89D6 - NUT

41 6715840

  • 6715840 - SPRING

42 6714698

  • 6714698 - CHAIN

43 6714695

  • 6714695 - MOUNT ROD

44 6812734

  • 6812734 - HOUSING

45 6562224

  • 6562224 - BUSHING
  • weld on

46 6555989

  • 6555989 - BUSHING
  • outer - weld on

47 6555987

  • 6555987 - BUSHING
  • inner - weld on

48 6703572

  • 6703572 - PIN
  • PIVOT

49 17C640

  • 17C640 - BOLT

50 6577947

  • 6577947 - TREAD
  • SAFETY
  • 190
  • 5 x 381 mm (7.5 x 15")

51 25G416

  • 25G416 - BOLT

52 17C552

  • 17C552 - BOLT

53 6905990

  • 6905990 - STEP
  • Was 6701943

54 31C1236

  • 31C1236 - BOLT

55 6552871

  • 6552871 - WASHER AXLE

56 6671962

  • 6671962 - BEARING
  • BALL

57 6714694

  • 6714694 - MOUNT
  • BEARING
  • 2.10" (53
  • 34mm) long

58 6714691

  • 6714691 - ROLLER
  • MOWER

59 6714708

  • 6714708 - LATCH ROD

60 6672326

  • 6672326 - HANDLE

61 8D16

  • 8D16 - NUT

62 1657083

  • 1657083 - RODWIPER
  • wiper

63 6594434

  • 6594434 - SPRING
  • COMPRESSION

64 6717059

  • 6717059 - SPACER

65 6810712

  • 6810712 - SHAFT
  • ROD CYL POWER BOB-TACH
  • Was 6716946

66 6714704

  • 6714704 - TUBE
  • MOUNT ASSY

67 6812808

  • 6812808 - MOUNT
  • Was 6714699

68 6810800

  • 6810800 - NUT
  • BLADE
  • with flange-without nylon insert

69 6809851

  • 6809851 - WASHER HARDENED
  • 4.50" O.D.

70 6813014

  • 6813014 - BOLT
  • BLADE
  • with nylon patch

71 6719729

  • 6719729 - MOUNT
  • BLADE ASSY
  • Was 6715062

72 6672818

  • 6672818 - NUT

73 1F632

  • 1F632 - PIN

74 6715355

  • 6715355 - DECAL
  • INSTRUCTIONS
  • release

75 7214473

  • 7214473 - DECAL
  • INSTRUCTIONS
  • - no-text - nut torque

76 6715356

  • 6715356 - DECAL
  • INSTRUCTIONS
  • - nut torque

77 6809665

  • 6809665 - DECAL
  • service - Was 6715357

78 6715358

  • 6715358 - DECAL
  • operation

79 6715359

  • 6715359 - DECAL
  • danger/service

80 6715360

  • 6715360 - DECAL
  • DANGER

81 7214474

  • 7214474 - DECAL
  • DANGER
  • - no-text

82 6715361

  • 6715361 - DECAL
  • DANGER
  • - rotating shaft

83 7214475

  • 7214475 - DECAL
  • DANGER
  • - no-text

84 7130136

  • 7130136 - DECAL
  • STEP
  • - no-text

85 6657351

  • 6657351 - DECAL
  • STEP

86 6717587

  • 6717587 - DECAL
  • Brushcat - Was 6711327

87 6577917

  • 6577917 - STEP

88 6655399

  • 6655399 - BUMPER

89 10H25

  • 10H25 - FTG GREASE STRAIGHT

90 58D16

  • 58D16 - NUT

91 6716976AR

  • 6716976AR - KIT
  • DECAL
  • decal - SEE NOTE

92 6716976BR

  • 6716976BR - KIT
  • DECAL
  • decal - SEE NOTE

93 6716976JP

  • 6716976JP - KIT
  • DECAL
  • decal - SEE NOTE

94 6716975AR

  • 6716975AR - KIT
  • TRANSLATION
  • translation - SEE NOTE

95 6716975BR

  • 6716975BR - KIT
  • TRANSLATION
  • translation - SEE NOTE

96 6714688

  • 6714688 - BUSHING
  • weld on

97 25E19

  • 25E19 - WASHER

98 31C640

  • 31C640 - BOLT

99 55D6

  • 55D6 - NUT

100 25E15

  • 25E15 - WASHER FLAT PLAIN

101 619021

  • 619021 - WASHER

102 25E14

  • 25E14 - WASHER FLAT

103 61D4

  • 61D4 - NUT 5

104 6732897

  • 6732897 - KIT
  • BLADE OFFSET 3"
  • standard 3" offset - W/qty. 2 ea. of Ref. 66
  • 68 & 69

105 6732896

  • 6732896 - KIT
  • BLADE OFFSET 2"
  • 2" offset - cut is 1" higher than standard blade - W/qty. 2 ea. of Ref. 66
  • 68 & 69
