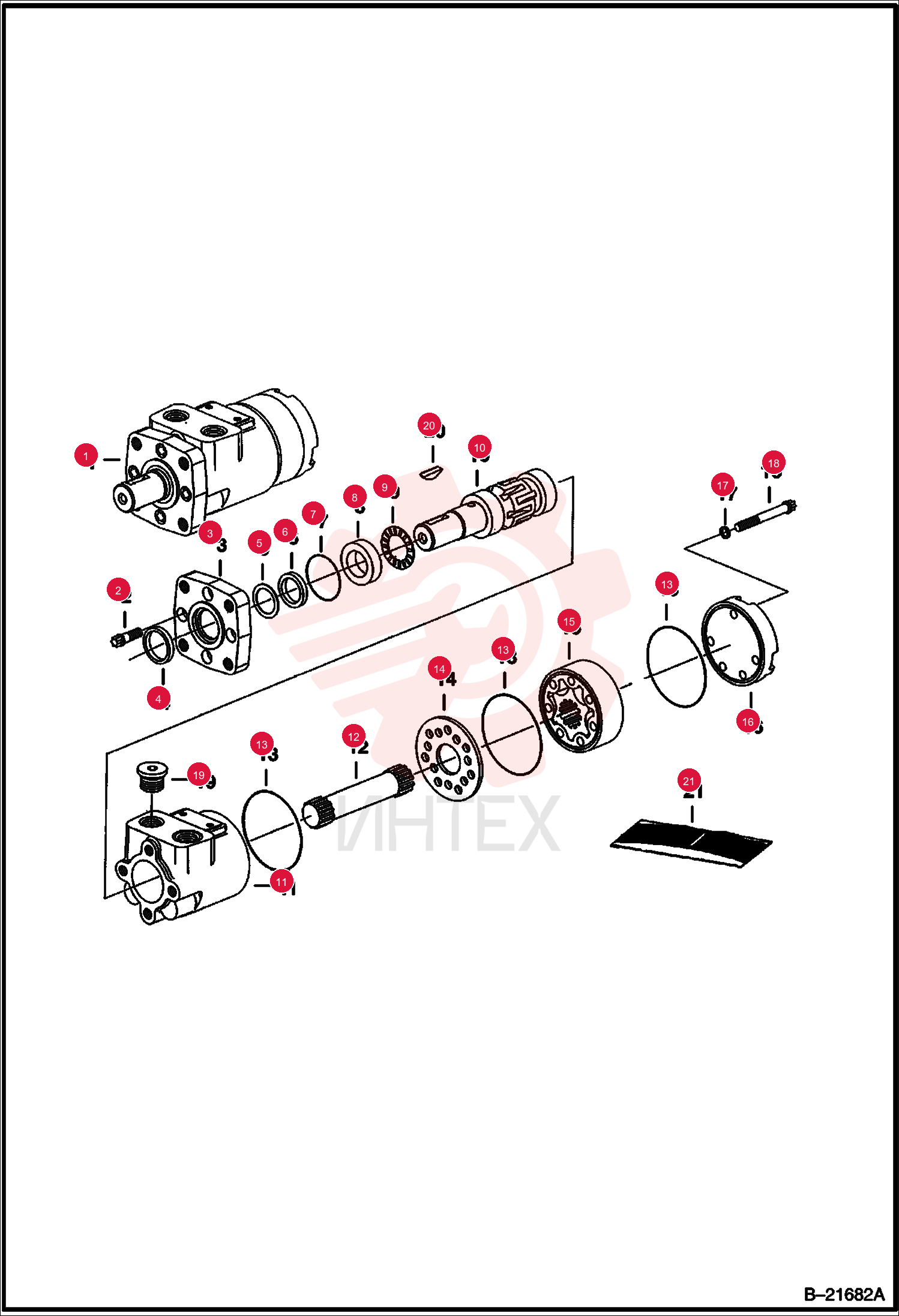

SCREW 6665325 (3)

SCREW 6665325 (3)

SCREW 6665325 (3)

1 6665325

  • 6665325 - SCREW

2 6634895

  • 6634895 - SEAL

3 6651241

  • 6651241 - RING
  • BACK-UP
  • backup

4 7308721

  • 7308721 - SEAL GASKET (10)
  • NLA - Was 6651240

5 25K30124

  • 25K30124 - O RING 10

6 7019134

  • 7019134 - CUP
  • BEARING
  • Was 6513279

7 6513280

  • 6513280 - BEARING

8 6634900

  • 6634900 - SHAFT STR

9 6665326

  • 6665326 - HOUSING

10 6519146

  • 6519146 - SHAFT

11 6665328

  • 6665328 - SEAL

12 6635659

  • 6635659 - PLATE
  • SPACER

13 6682550

  • 6682550 - GEROTER

14 6665330

  • 6665330 - CAP

15 1992104

  • 1992104 - PLUG

16 6668823

  • 6668823 - BOLT

17 47K7

  • 47K7 - PLUG
  • W/O-ring

18 6634899

  • 6634899 - KEY
  • WOODRUFF

19 6653269

  • 6653269 - SEAL KIT
  • W/Ref. 4 - 7 & 13
