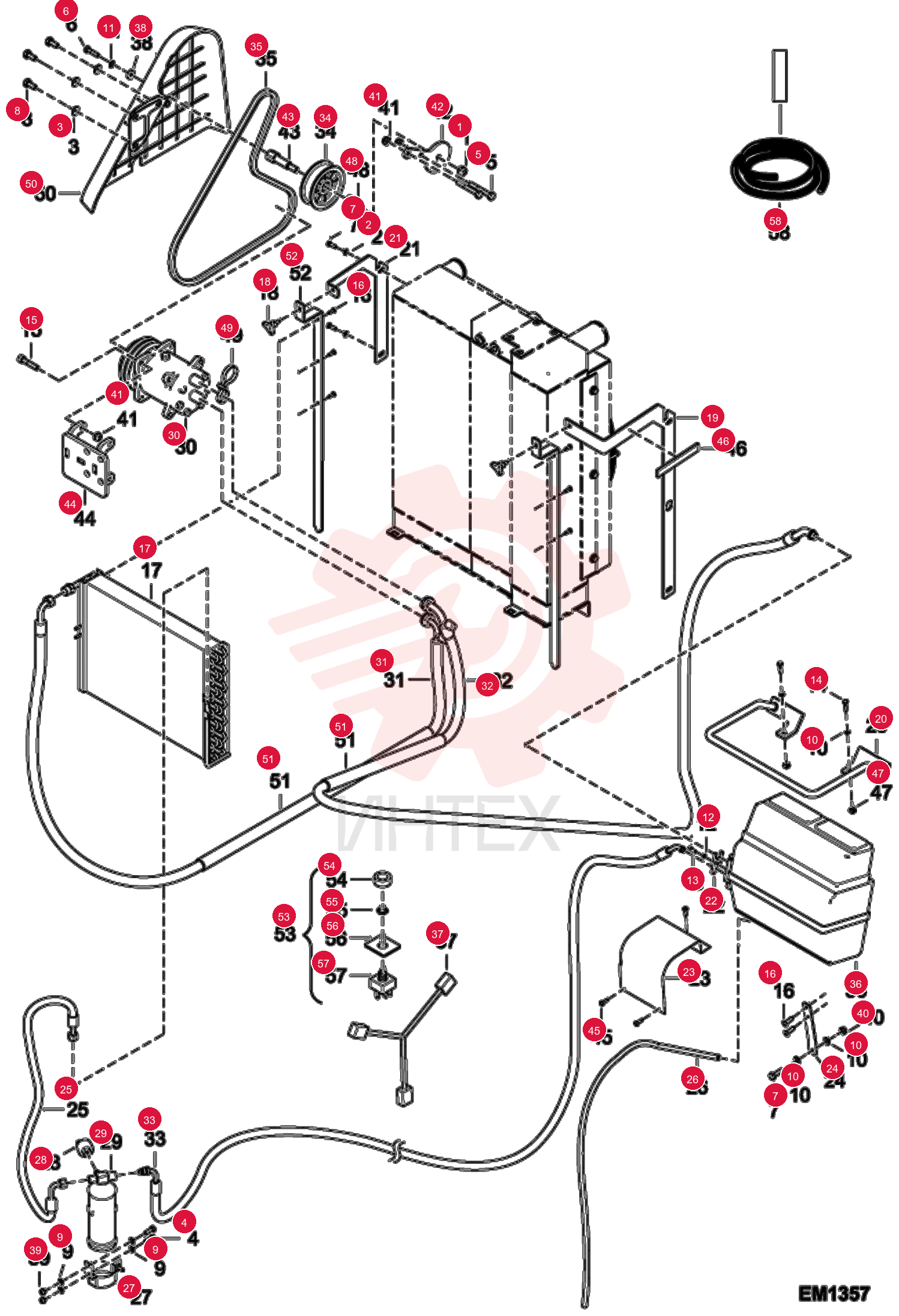

NUT 000345-96E (3)

NUT 000345-96E (3)

NUT 000345-96E (3)

1 000345-96E

  • 000345-96E - NUT

2 000350-01U

  • 000350-01U - WASHER

3 000350-03W

  • 000350-03W - WASHER

4 01478.7

  • 01478.7 - SCREW

5 01522.2

  • 01522.2 - Screw

6 01578.4

  • 01578.4 - Screw

7 01591.7

  • 01591.7 - Screw

8 1CM1025

  • 1CM1025 - BOLT

9 01695.6

  • 01695.6 - Washer

10 01696.4

  • 01696.4 - Washer

11 01697.2

  • 01697.2 - Washer

12 13416.3

  • 13416.3 - Washer

13 15354.4

  • 15354.4 - Screw

14 41821.0

  • 41821.0 - Screw

15 54009.6

  • 54009.6 - Screw

16 66679.2

  • 66679.2 - Rivet

17 81439.2

  • 81439.2 - Condenser

18 85171.7

  • 85171.7 - Thumb Screw

19 6924076

  • 6924076 - LH FIXING PLATE

20 6925115

  • 6925115 - PROTECTOR

21 6924074

  • 6924074 - RH FIXING PLATE

22 88826.3

  • 88826.3 - Plate

23 88827.1

  • 88827.1 - Protector

24 88830.5

  • 88830.5 - Plate

25 88844.6

  • 88844.6 - Hose

26 88848.7

  • 88848.7 - Hose

27 89641.5

  • 89641.5 - Bracket

28 89642.3

  • 89642.3 - Switch

29 89643.1

  • 89643.1 - Dryer

30 89644.9

  • 89644.9 - Compressor

31 89647.2

  • 89647.2 - Hose

32 89648.0

  • 89648.0 - Hose

33 89649.8

  • 89649.8 - Hose

34 90531.5

  • 90531.5 - Roller

35 90545.5

  • 90545.5 - Alternator Belt

36 7310385

  • 7310385 - CONDITIONER AIR

37 96083.1

  • 96083.1 - Wiring

38 97610.0

  • 97610.0 - Washer

39 7248549

  • 7248549 - NUT

40 100345-06W

  • 100345-06W - NUT

41 7252655

  • 7252655 - NUT LOCK

42 6919954

  • 6919954 - PULLEY SUPPORT

43 6908181

  • 6908181 - SPINDLE

44 6909391

  • 6909391 - COMPRESSOR BRACKET

45 6910951

  • 6910951 - SCREW

46 6914086

  • 6914086 - NUT

47 6914328

  • 6914328 - SPACER

48 6915851

  • 6915851 - COLLAR

49 6919502

  • 6919502 - BELT PROTECTOR

50 6921416

  • 6921416 - PROTECTOR

51 6922536

  • 6922536 - SUPPORT

52 88825.5

  • 88825.5 - Switch

53 6914433

  • 6914433 - CLIM BUTTON

54 6925361

  • 6925361 - NUT

55 6914431

  • 6914431 - PLATE

56 88825.5

  • 88825.5 - Switch

57 36912.4

  • 36912.4 - Seal
