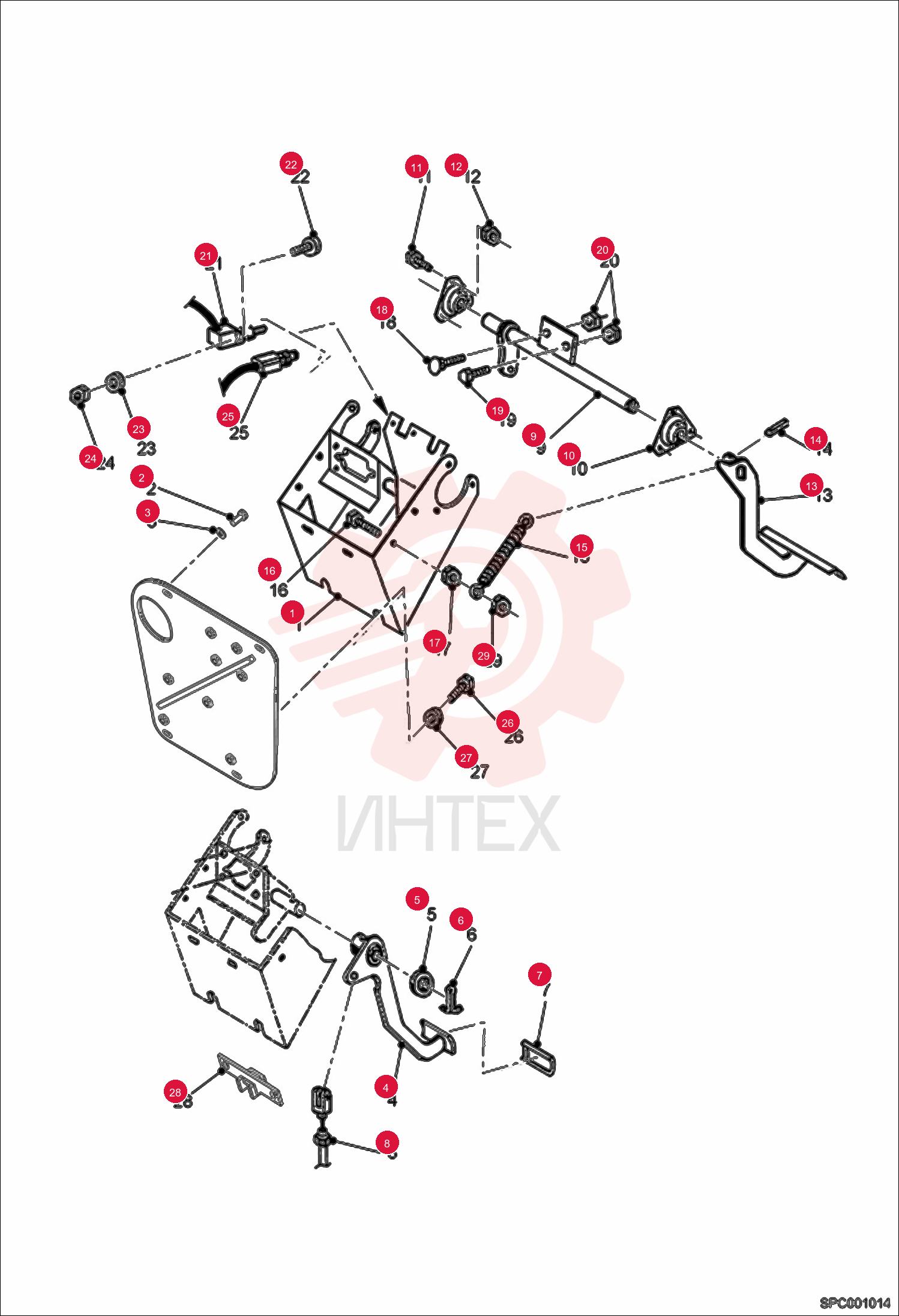

Support 96089.8
1 96089.8
- 96089.8 - Support
2 4CM820
- 4CM820 - SCREW HEX HD 8.8
- Was 1CM820
3 01697.2
- 01697.2 - Washer
4 6908480
- 6908480 - PEDAL
5 6917140
- 6917140 - WASHER
6 01754.1
- 01754.1 - Pin
7 59893.8
- 59893.8 - Pedal pad
8 98240.5
- 98240.5 - Throttle Cable
9 6908479
- 6908479 - PEDAL SHAFT
10 77919.9
- 77919.9 - Bracket
11 1CM1025
- 1CM1025 - BOLT
- Was 01605.5
12 7252655
- 7252655 - NUT LOCK
- Was 100345-09A
13 6908478
- 6908478 - PEDAL
- BRAKE
14 01739.2
- 01739.2 - Pin
15 01124.7
- 01124.7 - Spring
16 1CM1040
- 1CM1040 - BOLT
- Was 01608.9
17 01669.1
- 01669.1 - Nut
18 62185.4
- 62185.4 - Screw
19 4CM825
- 4CM825 - BOLT HEX HEAD
- Was 01597.4
20 01681.6
- 01681.6 - Nut
- Was 51851.4
21 6909383
- 6909383 - SENSOR
- INCHING
- Was 6934897
22 01478.7
- 01478.7 - SCREW
23 6910952
- 6910952 - WASHER JZC5
24 7248549
- 7248549 - NUT
- Was 100345-05V
25 6918227
- 6918227 - SWITCH DETECTOR
- Was 6909324
26 4CM820
- 4CM820 - SCREW HEX HD 8.8
- Was 1CM820
27 01697.2
- 01697.2 - Washer
28 6910649
- 6910649 - PEDAL STOP
29 7252655
- 7252655 - NUT LOCK
- Was 100345-09A
