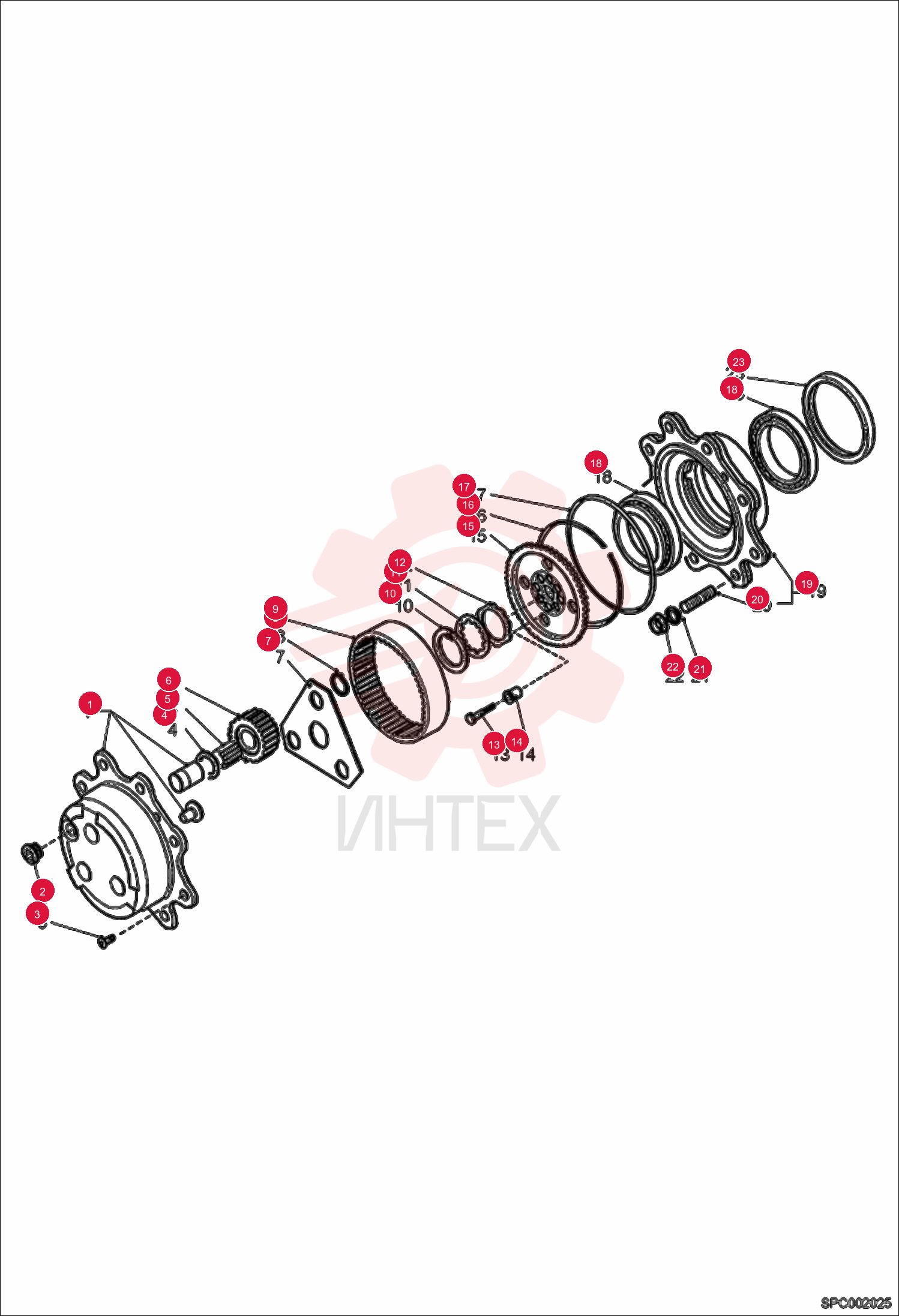

Bracket 81542.3

Bracket 81542.3

Bracket 81542.3

1 81542.3

  • 81542.3 - Bracket

2 100374-32C

  • 100374-32C - PLUG

3 100324-04M

  • 100324-04M - SCREW

4 100453-20B

  • 100453-20B - WASHER

5 75310.3

  • 75310.3 - Bearing

6 75309.5

  • 75309.5 - Gear

7 81543.1

  • 81543.1 - Washer

8 75805.2

  • 75805.2 - Clip

9 75311.1

  • 75311.1 - Toothed Ring

10 75736.9

  • 75736.9 - Clip

11 6912903

  • 6912903 - WASHER

12 75734.4

  • 75734.4 - Washer

13 75724.5

  • 75724.5 - Screw

14 89964.1

  • 89964.1 - Screw

15 75827.6

  • 75827.6 - Sleeve

16 89963.3

  • 89963.3 - Sleeve

17 75825.0

  • 75825.0 - Support

18 75824.3

  • 75824.3 - Lock Ring

19 75277.4

  • 75277.4 - O-ring

20 100398-15S

  • 100398-15S - Sleeve

21 98657.0

  • 98657.0 - Hub

22 75822.7

  • 75822.7 - Stud

23 100349-02C

  • 100349-02C - WASHER

24 100345-41K

  • 100345-41K - NUT

25 97414.7

  • 97414.7 - Seal
