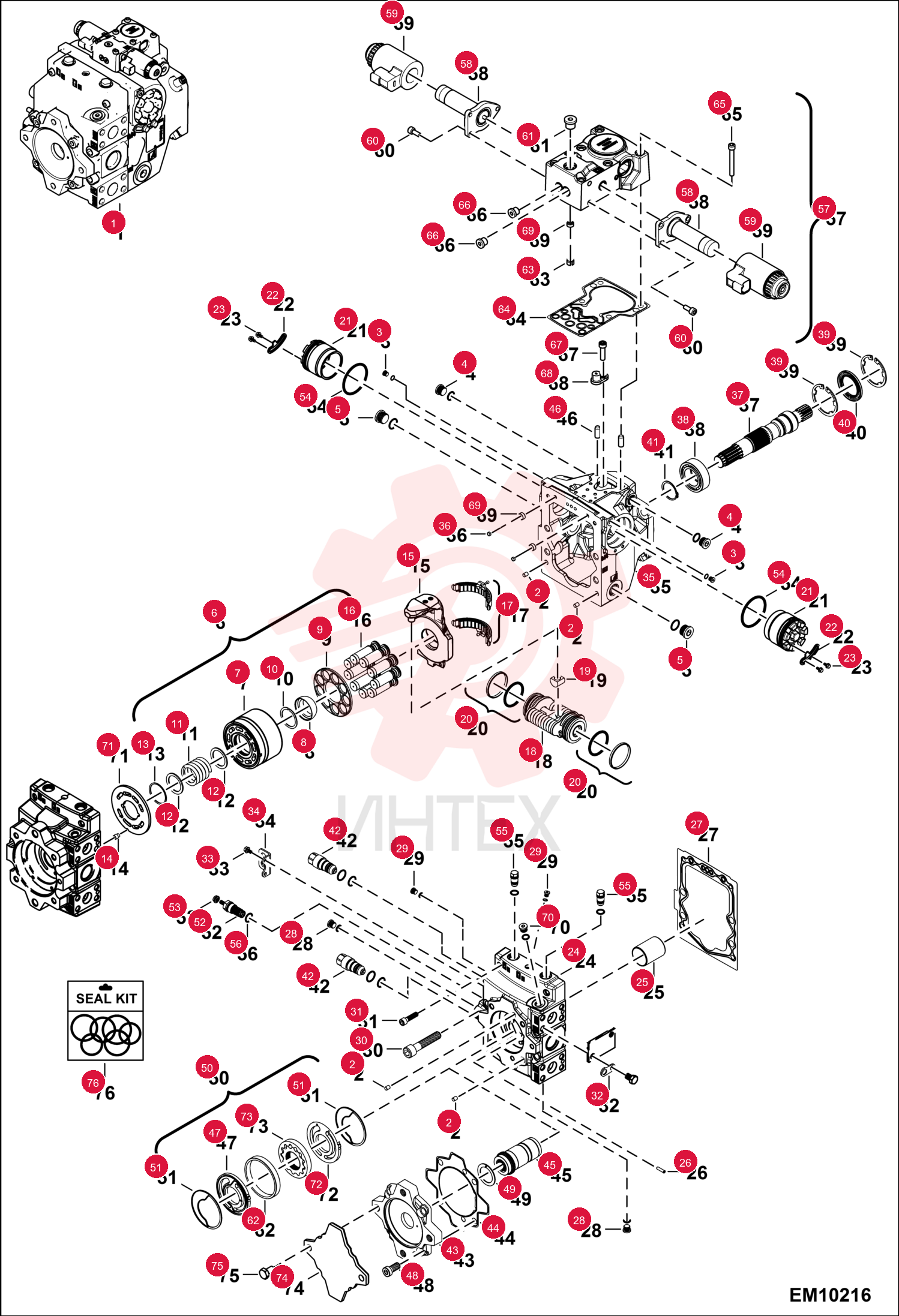

PUMP, HYDROSTATIC 7217145 (2)

PUMP, HYDROSTATIC 7217145 (2)

PUMP, HYDROSTATIC 7217145 (2)

1 7217145

  • 7217145 - PUMP
  • HYDROSTATIC

2 6518460

  • 6518460 - PIN

3 7008837

  • 7008837 - PLUG

4 6921563

  • 6921563 - PLUG

5 7031336

  • 7031336 - PLUG

6 7021870

  • 7021870 - KIT
  • CYLINDER BLOCK

7 7031349

  • 7031349 - BLOCK CYLINDER

8 7031347

  • 7031347 - RETAINER
  • GUIDE

9 7021873

  • 7021873 - RETAINER SLIPPER

10 7031348

  • 7031348 - WAVE SPRING

11 7021875

  • 7021875 - SPRING

12 7021876

  • 7021876 - WASHER

13 7021877

  • 7021877 - RING RETAINING

14 7021878

  • 7021878 - PIN

15 7031338

  • 7031338 - SWASHPLATE

16 7021880

  • 7021880 - PISTON

17 7021881

  • 7021881 - KIT SWASHPLATE

18 7021882

  • 7021882 - KIT PISTON SERVO

19 7021883

  • 7021883 - BLOCK SLIDER

20 7031334

  • 7031334 - KIT PISTON SERVO

21 7031335

  • 7031335 - PLATE LOCK

22 7008858

  • 7008858 - SCREW

23 7031342

  • 7031342 - END CAP
  • ASSY

24 7021890

  • 7021890 - ORIFICE

25 7021891

  • 7021891 - GASKET END CAP

26 7022520

  • 7022520 - PLUG

27 7021892

  • 7021892 - SCREW

28 7021893

  • 7021893 - SCREW

29 6662126

  • 6662126 - BRACKET

30 7008858

  • 7008858 - SCREW

31 6645066

  • 6645066 - BRK.LIFT.

32 7021894

  • 7021894 - HOUSING

33 7031337

  • 7031337 - SCREEN

34 7021895

  • 7021895 - SHAFT

35 7021896

  • 7021896 - BEARING ROLLER

36 7021897

  • 7021897 - RING RETAINING

37 7021799

  • 7021799 - O-RING

38 7021898

  • 7021898 - RING RETAINING

39 7031340

  • 7031340 - VALVE
  • ASSY

40 7021903

  • 7021903 - O-RING

41 7031339

  • 7031339 - O-RING

42 7008841

  • 7008841 - ADAPTER FLANGE
  • SAE B

43 7021899

  • 7021899 - SEAL

44 7021900

  • 7021900 - COUPLING ELEMENT

45 7008855

  • 7008855 - DOWEL PIN

46 7031346

  • 7031346 - PLATE

47 7008866

  • 7008866 - SCREW

48 7008840

  • 7008840 - THRUST PLATE

49 7021906

  • 7021906 - CHARGE PUMP KIT

50 7021907

  • 7021907 - O-RING

51 7008874

  • 7008874 - CHARGE RELIEF VALVE KIT

52 7031341

  • 7031341 - NUT

53 7024697

  • 7024697 - O-RING

54 7024698

  • 7024698 - O-RING

55 7031330

  • 7031330 - KIT
  • CONTROL

56 7008838

  • 7008838 - PROPORTIONAL SOLENOID

57 7008867

  • 7008867 - DEUTSCH CONNECTOR

58 7008859

  • 7008859 - SCREW

59 7031345

  • 7031345 - PUMP CHARGE

60 7022350

  • 7022350 - RING

61 7022351

  • 7022351 - GASKET

62 7008857

  • 7008857 - SCREW

63 7022520

  • 7022520 - PLUG

64 7031331

  • 7031331 - SCREW

65 7031332

  • 7031332 - MAGNET

66 7008839

  • 7008839 - SCREEN

67 6921561

  • 6921561 - PLUG

68 7031350

  • 7031350 - PLATE
  • VALVE

69 7031343

  • 7031343 - PLATE

70 7031344

  • 7031344 - GEAR

71 7021901

  • 7021901 - FLANGE
  • COVER

72 7021902

  • 7021902 - SCREW

73 7021917

  • 7021917 - KIT
  • SEAL
