T35.105
/

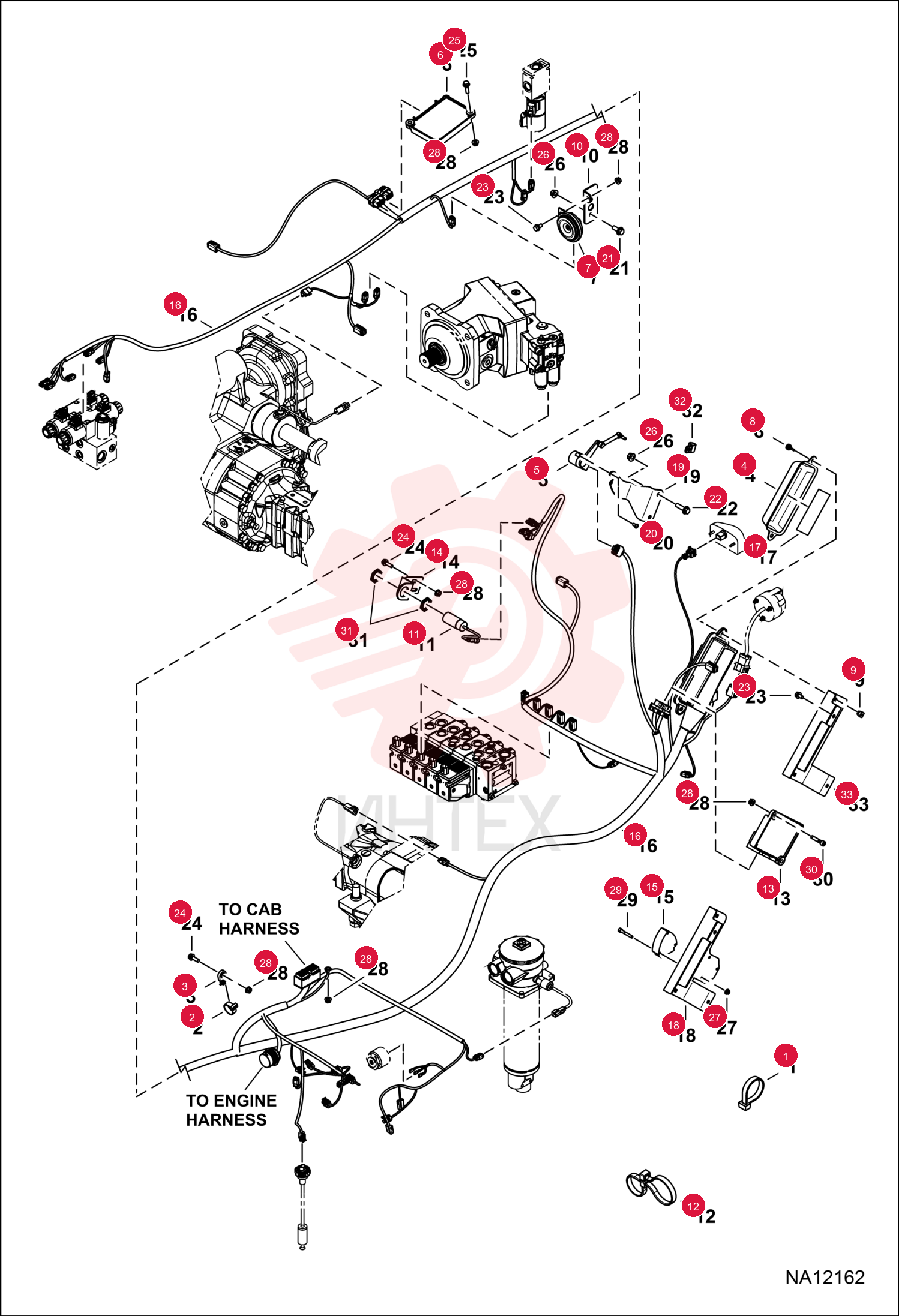

STRAP, TIE 6624289 (22)

STRAP, TIE 6624289 (22)

STRAP, TIE 6624289 (22)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6678669

  • 6678669 - STRAP T250 H/D

3 6684641

  • 6684641 - MOUNT

4 6716621

  • 6716621 - COVER
  • FUSE

5 7164102

  • 7164102 - SENSOR
  • BOOM

6 7164106

  • 7164106 - CONTROLLER

7 7164107

  • 7164107 - HORN
  • ALARM

8 7181242

  • 7181242 - SCREW

9 7181243

  • 7181243 - NUT

10 7191369

  • 7191369 - BRACKET
  • HORN

11 7209507

  • 7209507 - SENSOR
  • RETRACT

12 7221316

  • 7221316 - STRAP
  • TIE DUAL

13 7225682

  • 7225682 - CONTROLLER

14 7232278

  • 7232278 - BRACKET SENSOR

15 7232853

  • 7232853 - SENSOR

16 7273556

  • 7273556 - HARNESS
  • FRAME

17 6646383

  • 6646383 - CONNECTOR

18 6654804

  • 6654804 - FUSE
  • 7.5 AMP

19 6654805

  • 6654805 - FUSE 10A

20 6654806

  • 6654806 - FUSE
  • 15A

21 6663289

  • 6663289 - FUSE
  • 5A

22 6664969

  • 6664969 - CONNECTOR

23 6672750

  • 6672750 - CONNECTOR
  • 3 WAY P2S

24 6673200

  • 6673200 - FUSE BLOCK

25 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

26 7155390

  • 7155390 - HOUSING
  • FUSE RELAY

27 6664801

  • 6664801 - CONNECTOR

28 7245649

  • 7245649 - DECAL
  • FUSE RELAY

29 7246198

  • 7246198 - BRACKET
  • BLOCK FUSE

30 7257028

  • 7257028 - BRACKET
  • SENSOR

31 27CM510

  • 27CM510 - SCREW HX SOC HD CAP

32 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

33 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM

34 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

35 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

36 29CM830

  • 29CM830 - SCREW HEX

37 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

38 51DM5

  • 51DM5 - NUT

39 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

40 6GM535

  • 6GM535 - SCREW

41 6GM840

  • 6GM840 - SCREW

42 30H38

  • 30H38 - CLIP

43 7329668

  • 7329668 - BRACKET FUSE
