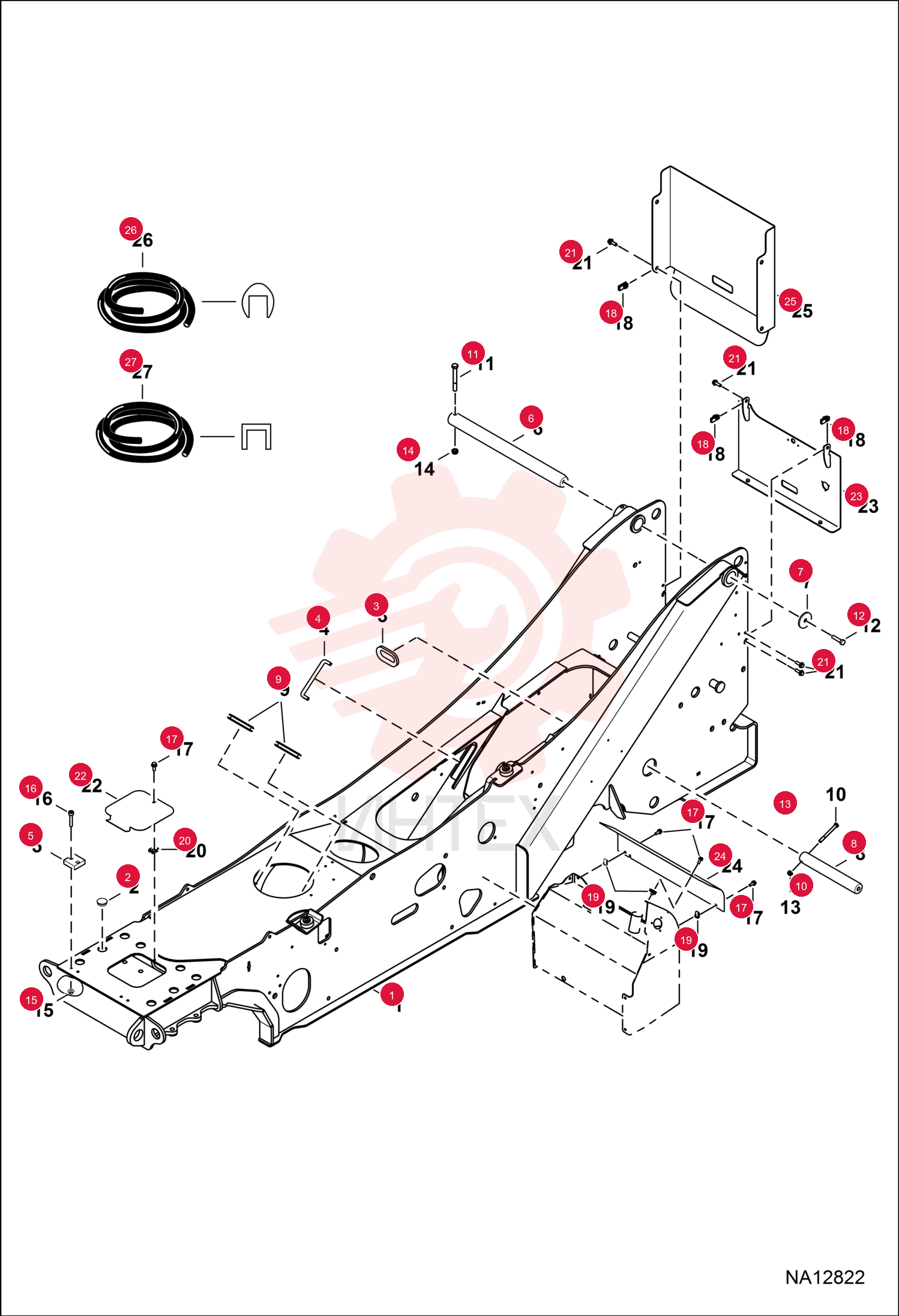

MAIN FRAME 7329524 (1)

MAIN FRAME 7329524 (1)

MAIN FRAME 7329524 (1)

1 7329524

  • 7329524 - MAIN FRAME

2 7251476

  • 7251476 - COVER

3 7214217

  • 7214217 - STOP
  • BOOM

4 7214509

  • 7214509 - PIN

5 7214510

  • 7214510 - WASHER D90XD20.5X8

6 7214842

  • 7214842 - PIN

7 1CM12110

  • 1CM12110 - BOLT

8 1CM16130

  • 1CM16130 - SCREW HEX HEAD

9 4CM2035

  • 4CM2035 - BOLT

10 7345105

  • 7345105 - NUT LOCK

11 7245395

  • 7245395 - NUT LOCK

12 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

13 6GM1030

  • 6GM1030 - SCREW
  • HEX

14 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

15 6675722

  • 6675722 - NUT

16 6676169

  • 6676169 - NUT

17 7183235

  • 7183235 - NUT

18 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

19 7215006

  • 7215006 - COVER
  • FRONT

20 7215007

  • 7215007 - COVER
  • REAR

21 7224738

  • 7224738 - COVER

22 7310682

  • 7310682 - COVER REAR

23 7229361

  • 7229361 - GASKET
  • PLATE

24 7229363

  • 7229363 - GASKET
  • BULK
