T35.140S
/

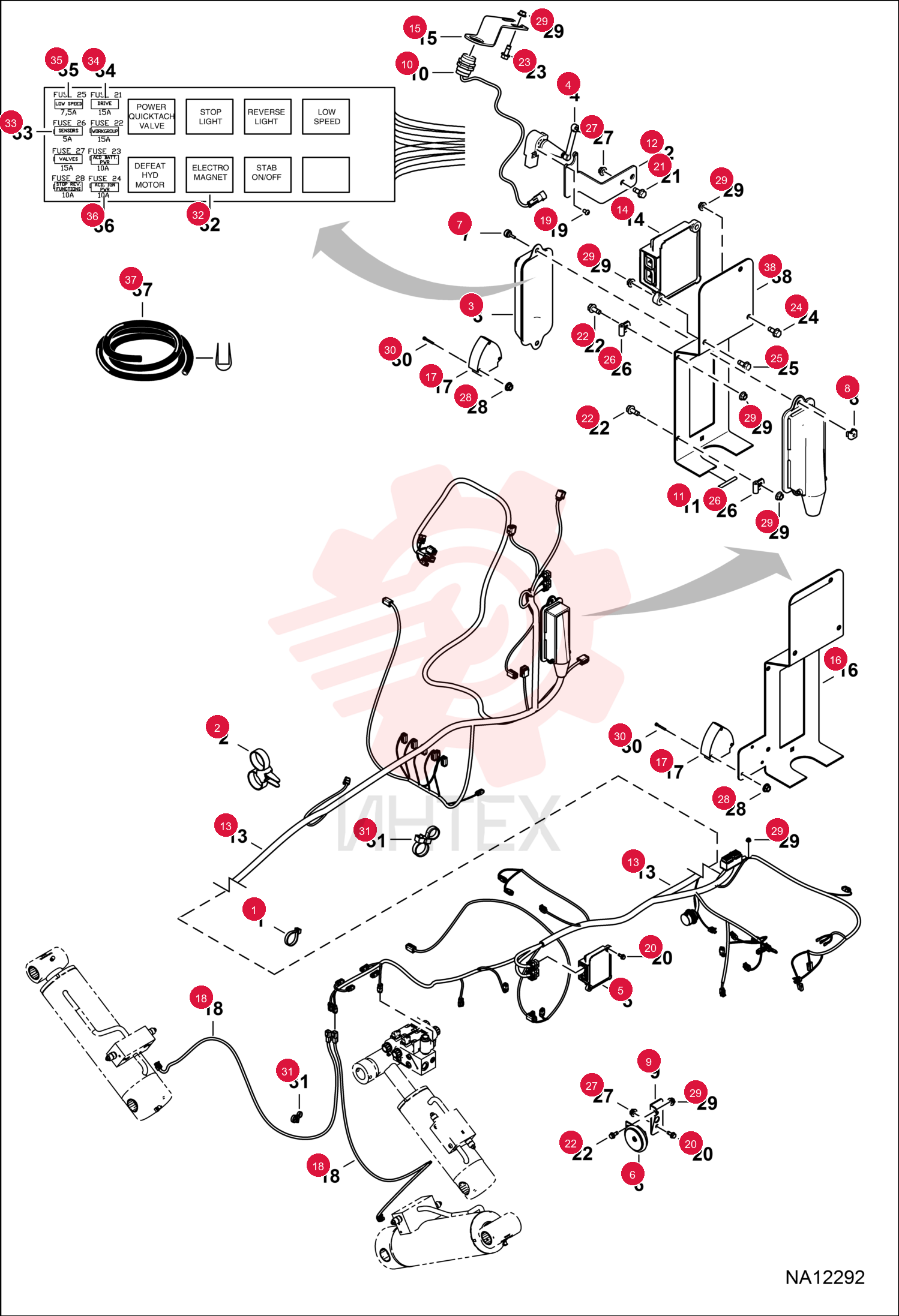

STRAP, TIE 6624289 (28)

STRAP, TIE 6624289 (28)

STRAP, TIE 6624289 (28)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6678668

  • 6678668 - STRAP

3 6716621

  • 6716621 - COVER
  • FUSE

4 7164102

  • 7164102 - SENSOR
  • BOOM

5 7164106

  • 7164106 - CONTROLLER

6 7164107

  • 7164107 - HORN
  • ALARM

7 7181242

  • 7181242 - SCREW

8 7181243

  • 7181243 - NUT

9 7191369

  • 7191369 - BRACKET
  • HORN

10 7209507

  • 7209507 - SENSOR
  • RETRACT

11 7223160

  • 7223160 - BRACKET
  • BOOM SENSOR

12 7269889

  • 7269889 - HARNESS
  • FRAME

13 7225682

  • 7225682 - CONTROLLER

14 7232278

  • 7232278 - BRACKET SENSOR

15 7232451

  • 7232451 - BRACKET
  • FUSE

16 7232853

  • 7232853 - SENSOR

17 7237531

  • 7237531 - HARNESS STABILIZER

18 27CM510

  • 27CM510 - SCREW HX SOC HD CAP

19 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

20 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

21 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

22 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

23 29CM830

  • 29CM830 - SCREW HEX

24 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

25 30H49

  • 30H49 - CLAMP

26 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

27 51DM5

  • 51DM5 - NUT

28 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

29 6GM535

  • 6GM535 - SCREW

30 7221316

  • 7221316 - STRAP
  • TIE DUAL

31 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

32 6663289

  • 6663289 - FUSE
  • 5A

33 6654806

  • 6654806 - FUSE
  • 15A

34 6654804

  • 6654804 - FUSE
  • 7.5 AMP

35 6654805

  • 6654805 - FUSE 10A

36 7031640

  • 7031640 - SEAL
  • BULK

37 7329648

  • 7329648 - BRACKET FUSE
