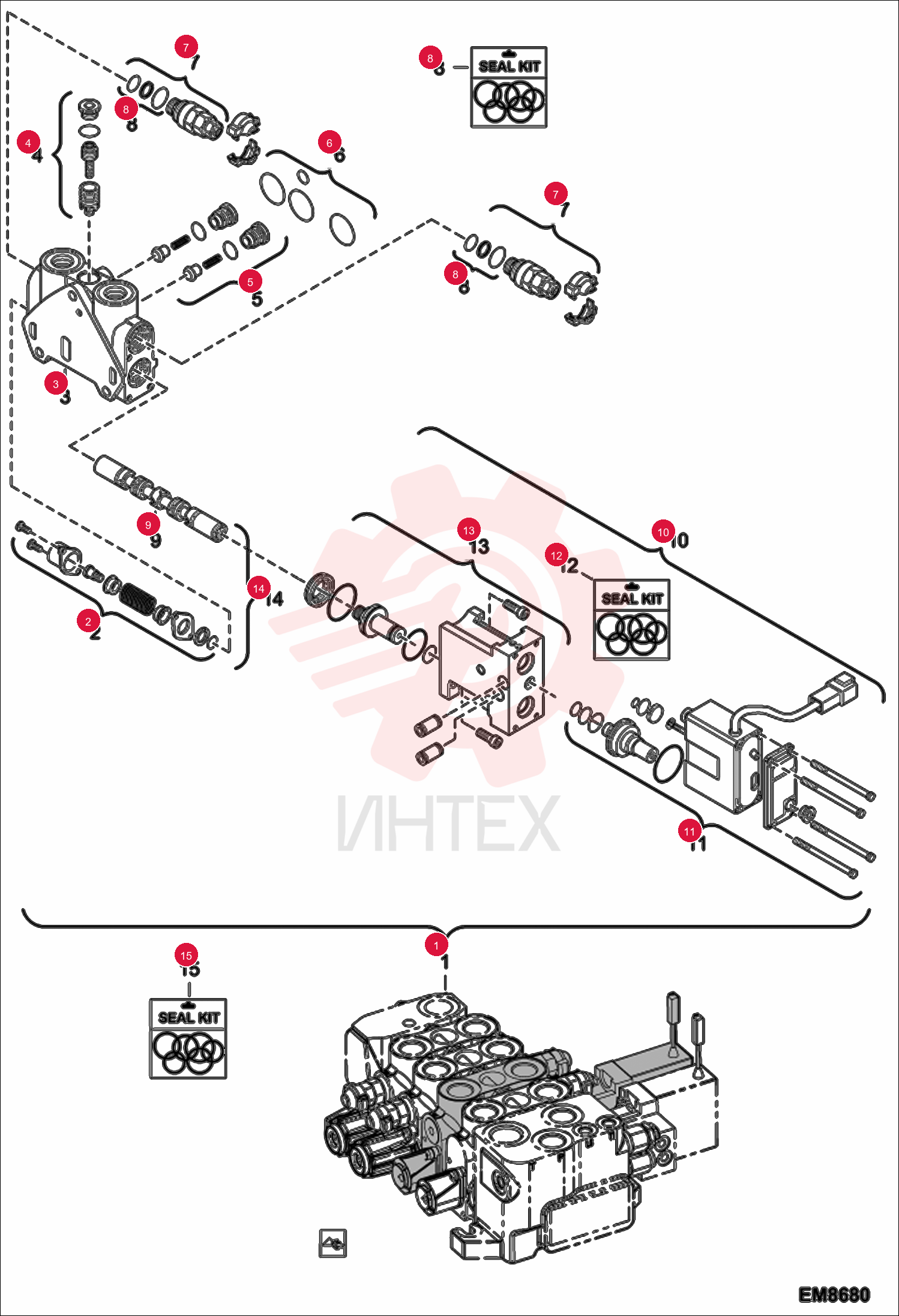

SPOOL RETURN 6910714 (1)

SPOOL RETURN 6910714 (1)

SPOOL RETURN 6910714 (1)

1 6910714

  • 6910714 - SPOOL RETURN

2 97302.4

  • 97302.4 - Pressure compensator kit

3 6691133

  • 6691133 - CHECK VALVE

4 97295.0

  • 97295.0 - Set of seals

5 6685249

  • 6685249 - VALVE
  • RELIEF

6 6910713

  • 6910713 - SEAL KIT

7 7011973

  • 7011973 - ACTUATOR ELECTROHYDRAULIC

8 6910715

  • 6910715 - VALVE
  • TELESCOPIC

9 6910717

  • 6910717 - SEAL KIT

10 7011974

  • 7011974 - SPOOL

11 7012483

  • 7012483 - SEAL KIT
