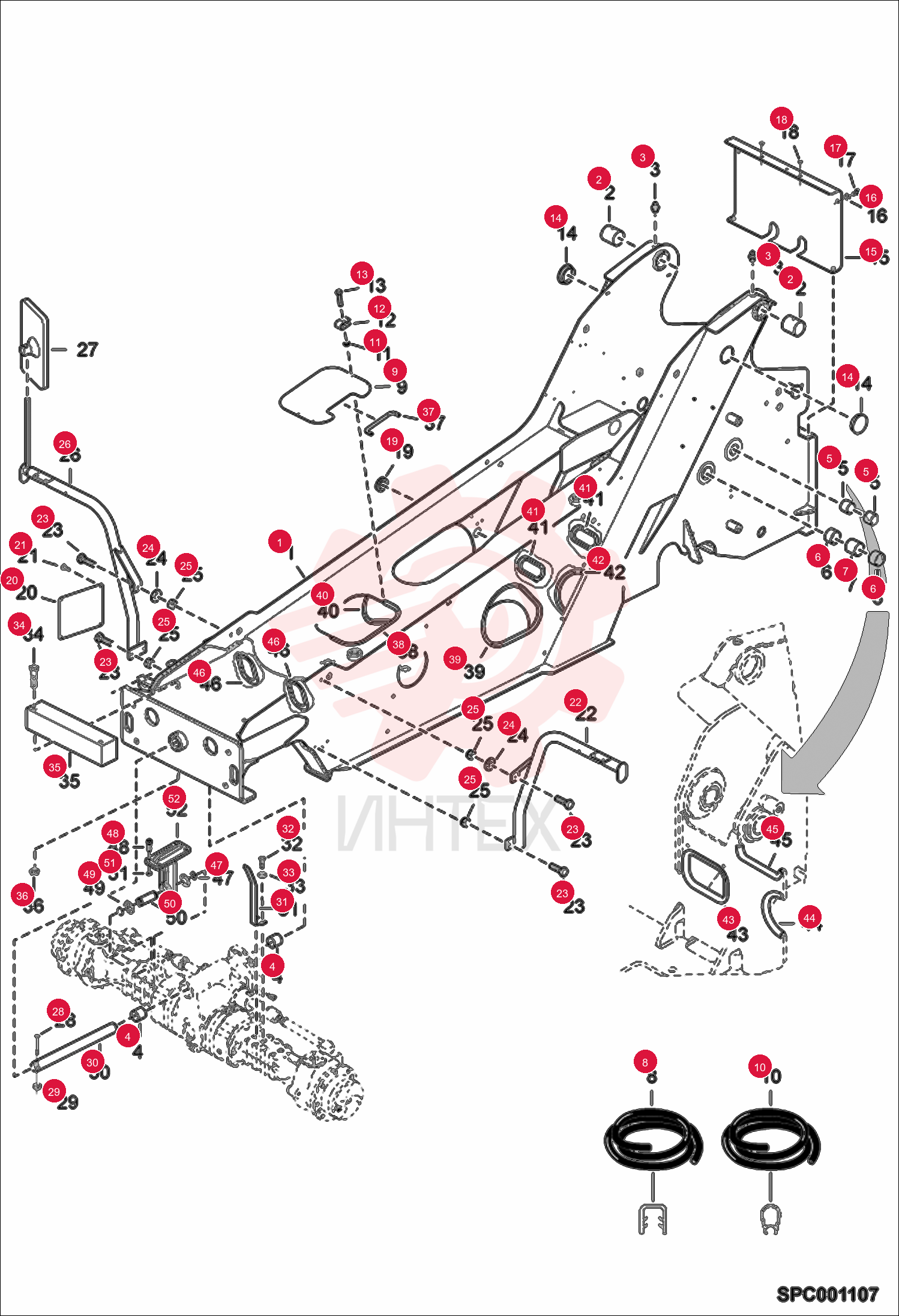

FRAME 6917761 (2)

FRAME 6917761 (2)

FRAME 6917761 (2)

1 6917761

  • 6917761 - FRAME

2 7213359

  • 7213359 - BEARING SWING ID70L80

3 01775.6

  • 01775.6 - Grease Nipple

4 70811.5

  • 70811.5 - Bush

5 6909439

  • 6909439 - BUSHING

6 7213158

  • 7213158 - LINK BEARING ID60 L40

7 7246766

  • 7246766 - BUSHING STEEL

8 7229363

  • 7229363 - GASKET
  • BULK

9 79123.6

  • 79123.6 - Plate

10 100031-07S

  • 100031-07S - SEAL BULK/METER

11 13415.5

  • 13415.5 - Washer

12 79124.4

  • 79124.4 - Nut

13 010338-02X

  • 010338-02X - SCREW

14 6909712

  • 6909712 - HYDRAULIC OPERATION

15 6908248

  • 6908248 - COVER

16 01719.4

  • 01719.4 - Washer

17 01604.8

  • 01604.8 - Screw

18 57702.3

  • 57702.3 - Plug

19 79288.7

  • 79288.7 - Rubber mounting

20 6916450

  • 6916450 - RIVET

21 6915265

  • 6915265 - SUPPORT LIGHT LH

22 1CM1035

  • 1CM1035 - BOLT

23 000350-21R

  • 000350-21R - WASHER

24 7252655

  • 7252655 - NUT LOCK

25 6915264

  • 6915264 - SUPPORT LIGHT RH

26 7CM10100

  • 7CM10100 - SCREW HEX HD 10.9

27 7252655

  • 7252655 - NUT LOCK

28 7247000

  • 7247000 - PIN

29 7249740

  • 7249740 - PLATE

30 01610.5

  • 01610.5 - Screw

31 89517.7

  • 89517.7 - Washer

32 7253847

  • 7253847 - SCREW

33 7253846

  • 7253846 - SUPPORT
  • BOOM

34 7252655

  • 7252655 - NUT LOCK

35 5JM40

  • 5JM40 - SNAPRING

36 53925.4

  • 53925.4 - Screw

37 7308913

  • 7308913 - WASHER FLAT

38 7245021

  • 7245021 - PIN CYLINDER

39 7245395

  • 7245395 - NUT LOCK

40 77192.3

  • 77192.3 - Bush

41 6915401

  • 6915401 - CONNECTING ROD
