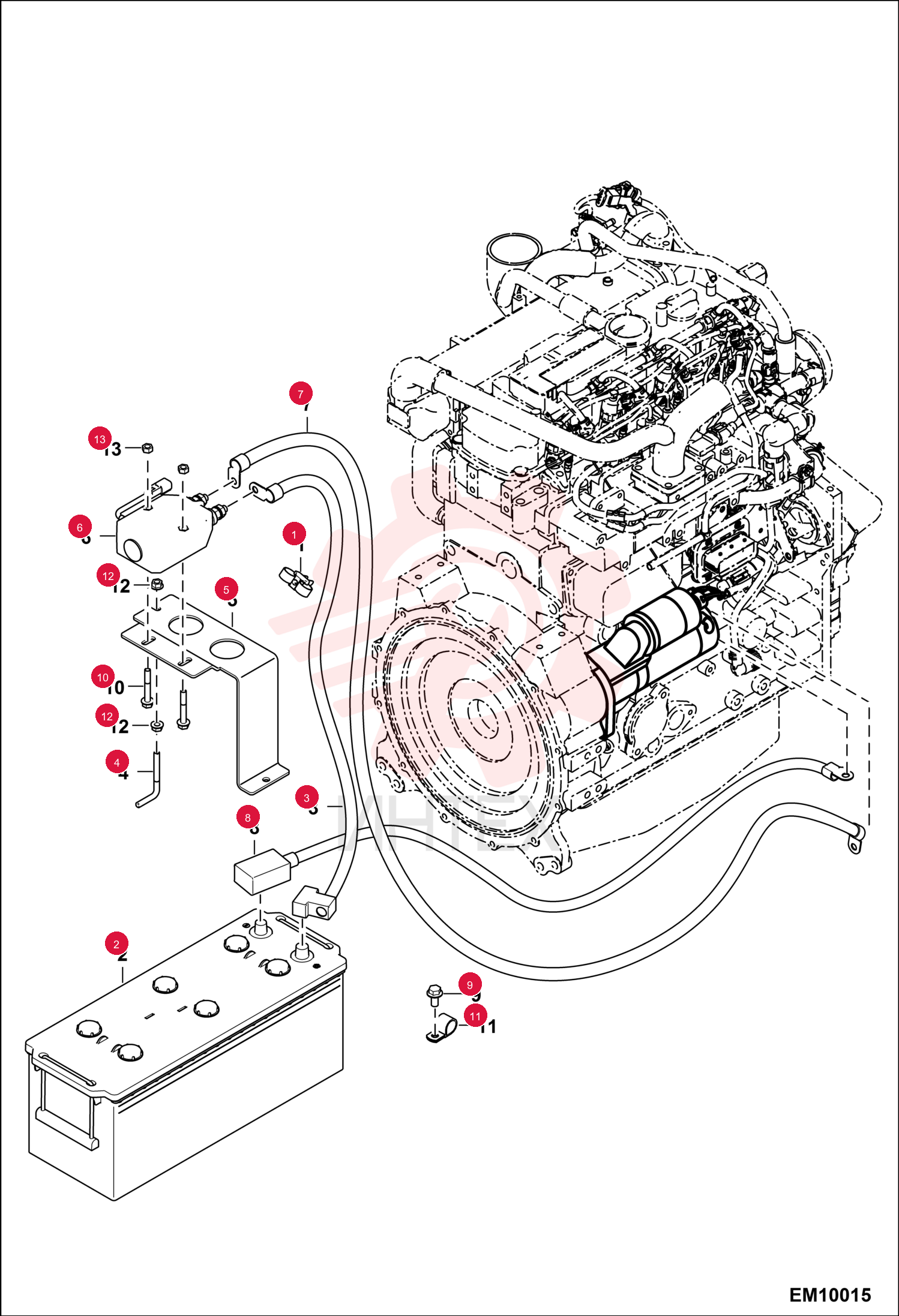

STRAP 6678668 (3)

STRAP 6678668 (3)

STRAP 6678668 (3)

1 6678668

  • 6678668 - STRAP

2 7159404

  • 7159404 - BATTERY

3 7162058

  • 7162058 - CABLE
  • BATTERY

4 7165029

  • 7165029 - ROD
  • THREADED

5 7168527

  • 7168527 - HOLDER
  • BATTERY

6 7283602

  • 7283602 - DISCONNECTOR
  • BATTERY

7 7223770

  • 7223770 - CABLE
  • STARTER

8 7226664

  • 7226664 - CABLE
  • BATTERY

9 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

10 29CM855

  • 29CM855 - SCREW HX FLGD HD CAP

11 30H50

  • 30H50 - CLAMP

12 43DM8

  • 43DM8 - NUT FLANGED HEX

13 4DM8

  • 4DM8 - NUT HEX
