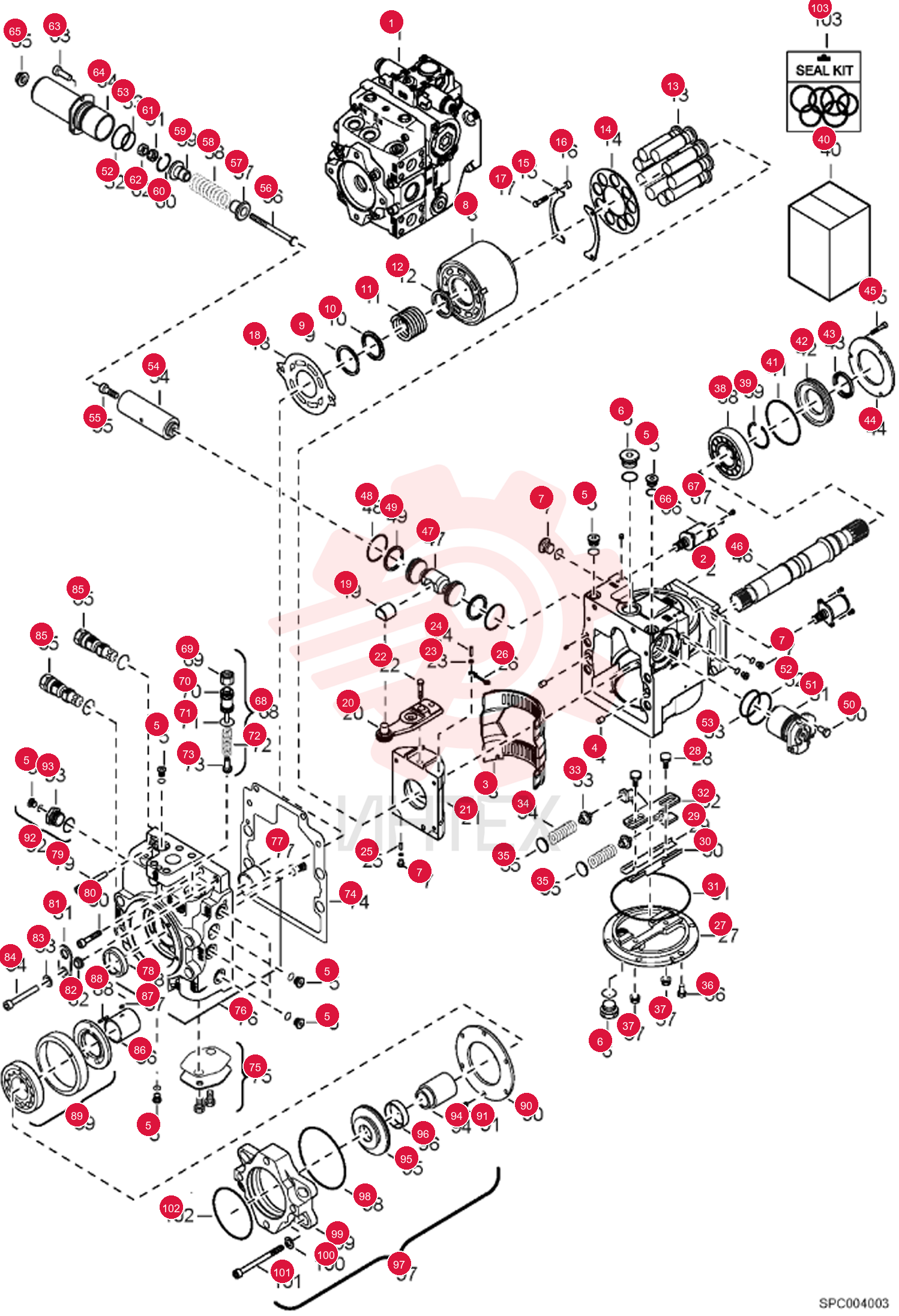

HYDROSTATIC PUMP 6913565 (4)
1 6913565
- 6913565 - HYDROSTATIC PUMP
2 7023011
- 7023011 - HOUSING
3 6912059
- 6912059 - BEARING
4 6518460
- 6518460 - PIN
5 6921561
- 6921561 - PLUG
6 6661481
- 6661481 - O-RING
7 7031336
- 7031336 - PLUG
8 71778.5
- 71778.5 - O-ring
9 7022672
- 7022672 - PLUG
10 6664963
- 6664963 - O-RING
11 6912553
- 6912553 - CYLINDER
12 7023021
- 7023021 - ORING
13 71699.3
- 71699.3 - SPRING
- RETAINER
14 71698.5
- 71698.5 - SPRING
- HELICAL
15 71697.7
- 71697.7 - RING
16 71690.2
- 71690.2 - Piston
17 71691.0
- 71691.0 - Retainer
18 71692.8
- 71692.8 - Guide
19 71693.6
- 71693.6 - Spacer
20 98653.9
- 98653.9 - Screw
21 6912554
- 6912554 - VALVE PLATE
22 6662118
- 6662118 - BLOCK
23 6912060
- 6912060 - LEVER
24 7023001
- 7023001 - SWASHPLATE
25 6912062
- 6912062 - SCREW
26 6921576
- 6921576 - WASHER
27 7023020
- 7023020 - PIN-SPIRAL
- +HEADED
28 3974795
- 3974795 - PIN
29 71679.5
- 71679.5 - Pin
30 97462.6
- 97462.6 - COVER ASSEMBLY
31 6912561
- 6912561 - SCREW
32 7022995
- 7022995 - INSERT-SIDE+COVER
33 7022996
- 7022996 - INSERT-SIDE+COVER
34 6912562
- 6912562 - O'RING
35 7023016
- 7023016 - LEVELER
36 7022998
- 7022998 - SPRING-SEAT
37 71711.6
- 71711.6 - Spring
38 6912560
- 6912560 - WASHER
39 6912563
- 6912563 - SCREW
40 71715.7
- 71715.7 - Seal-lock nut
41 7023006
- 7023006 - BEARING
42 7023023
- 7023023 - RING
43 81421.0
- 81421.0 - Axle seal kit
44 71705.8
- 71705.8 - O-RING
45 7023000
- 7023000 - SEAL-LIP
46 6912567
- 6912567 - PLATE
47 6912067
- 6912067 - SCREW
48 71701.7
- 71701.7 - Shaft
49 71718.1
- 71718.1 - PISTON
50 71720.7
- 71720.7 - O-RING
51 6912064
- 6912064 - WASHER
52 71735.5
- 71735.5 - Screw
53 7023009
- 7023009 - CYLINDER SERVO
54 71733.0
- 71733.0 - Seal
55 7023018
- 7023018 - ORING
56 71721.5
- 71721.5 - Sleeve
57 71722.3
- 71722.3 - Screw
58 71727.2
- 71727.2 - Screw
59 7022992
- 7022992 - GUIDE-SPRING
60 71723.1
- 71723.1 - Spring
61 7022993
- 7022993 - GUIDE-SPRING
62 71731.4
- 71731.4 - Snap Ring
63 71729.8
- 71729.8 - Nut
64 71730.6
- 71730.6 - Nut
65 6912564
- 6912564 - SCREW
66 7023015
- 7023015 - CYLINDER
- SERVO
67 7011195
- 7011195 - SOLENOIDE
68 6912068
- 6912068 - SCREW
69 81427.7
- 81427.7 - Valve
70 71633.2
- 71633.2 - Nut
71 71750.4
- 71750.4 - Screw
72 71632.4
- 71632.4 - O-ring
73 71749.6
- 71749.6 - Spring
74 71629.0
- 71629.0 - Cone
75 98695.0
- 98695.0 - Gasket
76 71753.8
- 71753.8 - Screw
77 81425.1
- 81425.1 - Screw
78 6662126
- 6662126 - BRACKET
79 7023005
- 7023005 - SPACER -LIFTING
80 7022989
- 7022989 - WASHER
81 81424.4
- 81424.4 - Screw
82 7275951
- 7275951 - VALVE
83 7022988
- 7022988 - ORING
84 7023010
- 7023010 - SHAFT-CHARGE+PUMP
85 7023017
- 7023017 - KEY-WDF
86 7023019
- 7023019 - PIN-STRAIGHT
87 71757.9
- 71757.9 - Charge pump assy
88 7022997
- 7022997 - PLATE
- RETAINER
89 7023002
- 7023002 - SCREW
90 6912568
- 6912568 - PLUG
91 71778.5
- 71778.5 - O-ring
92 6912070
- 6912070 - SUPPORT HEAD FILTER
93 7023007
- 7023007 - COUPLING
94 71760.3
- 71760.3 - COVER ASSEMBLY
95 7031364
- 7031364 - FLANGE
96 7022990
- 7022990 - O-RING
97 7023008
- 7023008 - ADAPTER-SAE
98 71764.5
- 71764.5 - Screw
99 6925706
- 6925706 - SEAL
100 7251798
- 7251798 - KIT
- SEAL
