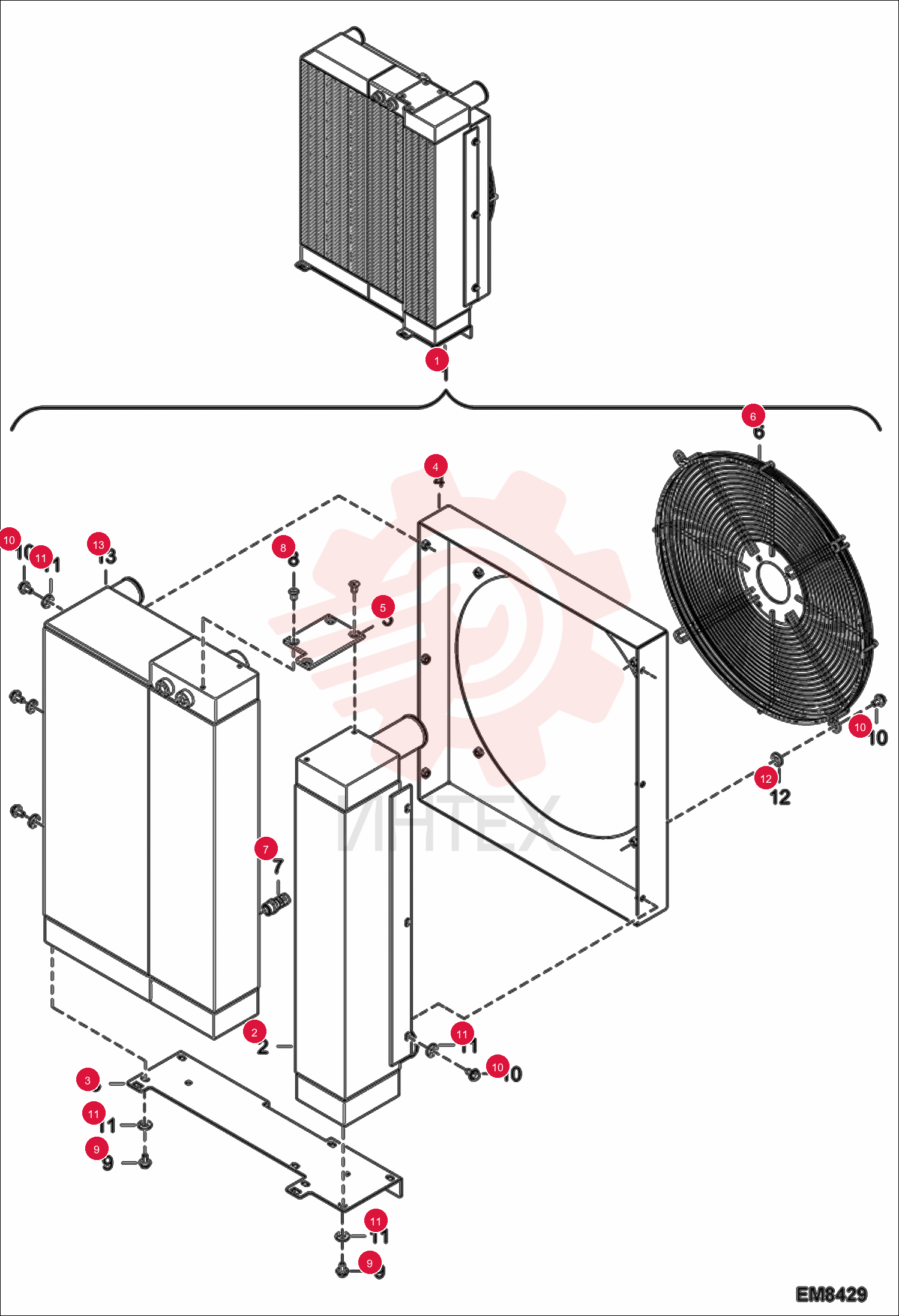

RADIATOR 6933947 (2)

RADIATOR 6933947 (2)

RADIATOR 6933947 (2)

1 6933947

  • 6933947 - RADIATOR

2 7008126

  • 7008126 - INTERCOOLER

3 7012319

  • 7012319 - LOWER COVER

4 7012320

  • 7012320 - HOUSING

5 7012321

  • 7012321 - PLATE

6 6912544

  • 6912544 - GRATE FAN

7 6912545

  • 6912545 - HOSE

8 7009580

  • 7009580 - SCREW

9 7009581

  • 7009581 - SCREW

10 7009582

  • 7009582 - SCREW

11 7009583

  • 7009583 - WASHER

12 7009584

  • 7009584 - WASHER

13 7012318

  • 7012318 - COOLER WATER/OIL
