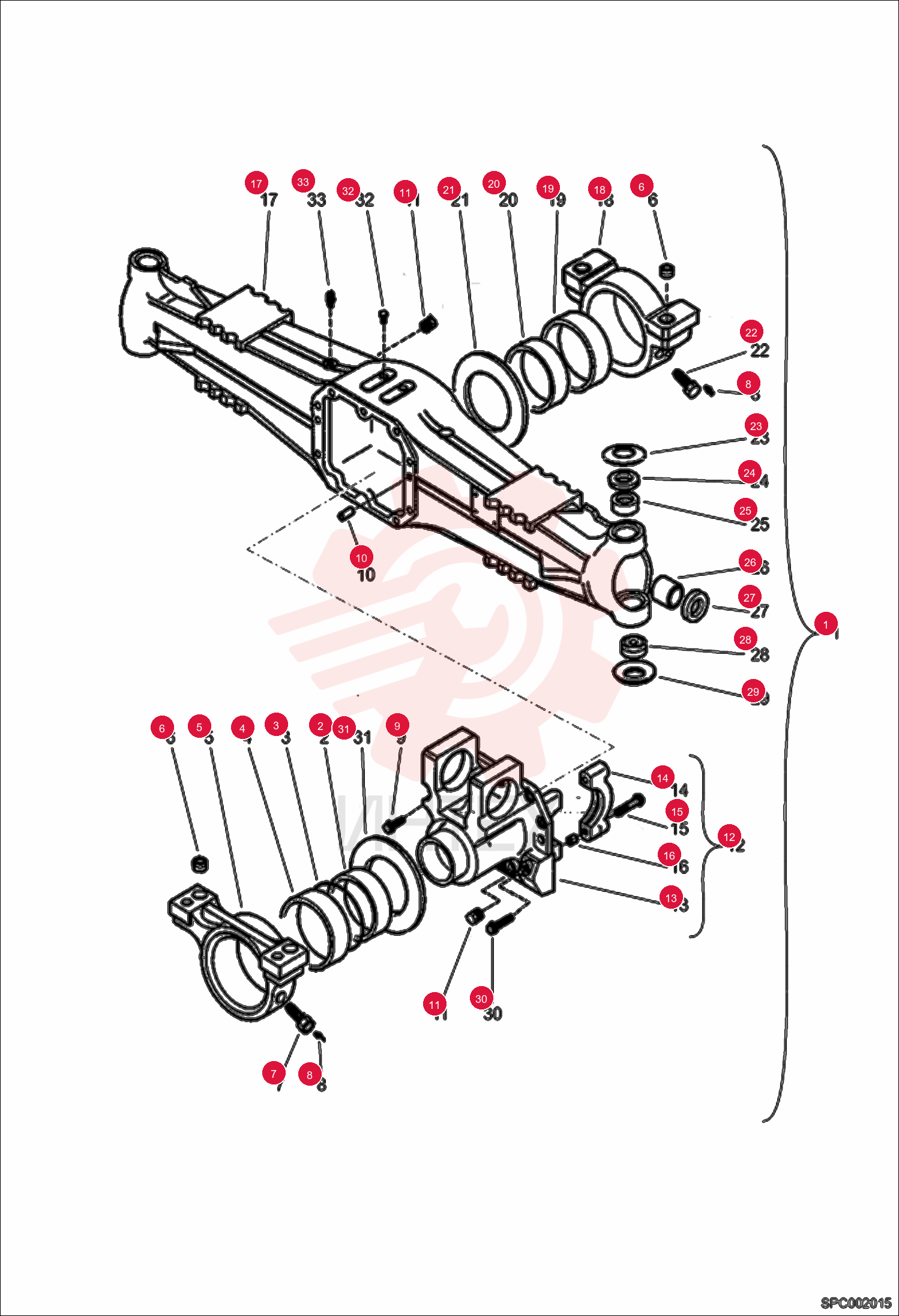

Rear axle 94670.7 (2)
1 94670.7
- 94670.7 - Rear axle
2 64827.9
- 64827.9 - Bushing
3 64829.5
- 64829.5 - O-ring
4 64828.7
- 64828.7 - Bushing
5 64830.3
- 64830.3 - Support
6 64824.6
- 64824.6 - Sleeve
7 64831.1
- 64831.1 - Screw
8 64823.8
- 64823.8 - Grease Nipple
9 100338-42A
- 100338-42A - SCREW
10 100273-25R
- 100273-25R - PIN
11 100374-20P
- 100374-20P - PLUG
12 81544.9
- 81544.9 - Support
13 89959.1
- 89959.1 - Screw
14 101288-10B
- 101288-10B - BUSHING
15 98662.0
- 98662.0 - Housing
16 75746.8
- 75746.8 - Support
17 75747.6
- 75747.6 - Bushing
18 75748.4
- 75748.4 - Bushing
19 75749.2
- 75749.2 - Washer
20 64822.0
- 64822.0 - Screw
21 66011.8
- 66011.8 - Washer
22 6912908
- 6912908 - BUSH
23 100288-63N
- 100288-63N - BUSHING
24 98660.4
- 98660.4 - Bushing
25 100400-19P
- 100400-19P - BUSHING
26 66010.0
- 66010.0 - Washer
27 89885.8
- 89885.8 - Screw
28 75739.3
- 75739.3 - Washer
29 64842.8
- 64842.8 - Plug
30 100505-24H
- 100505-24H - BREATHER
