T35120L
/

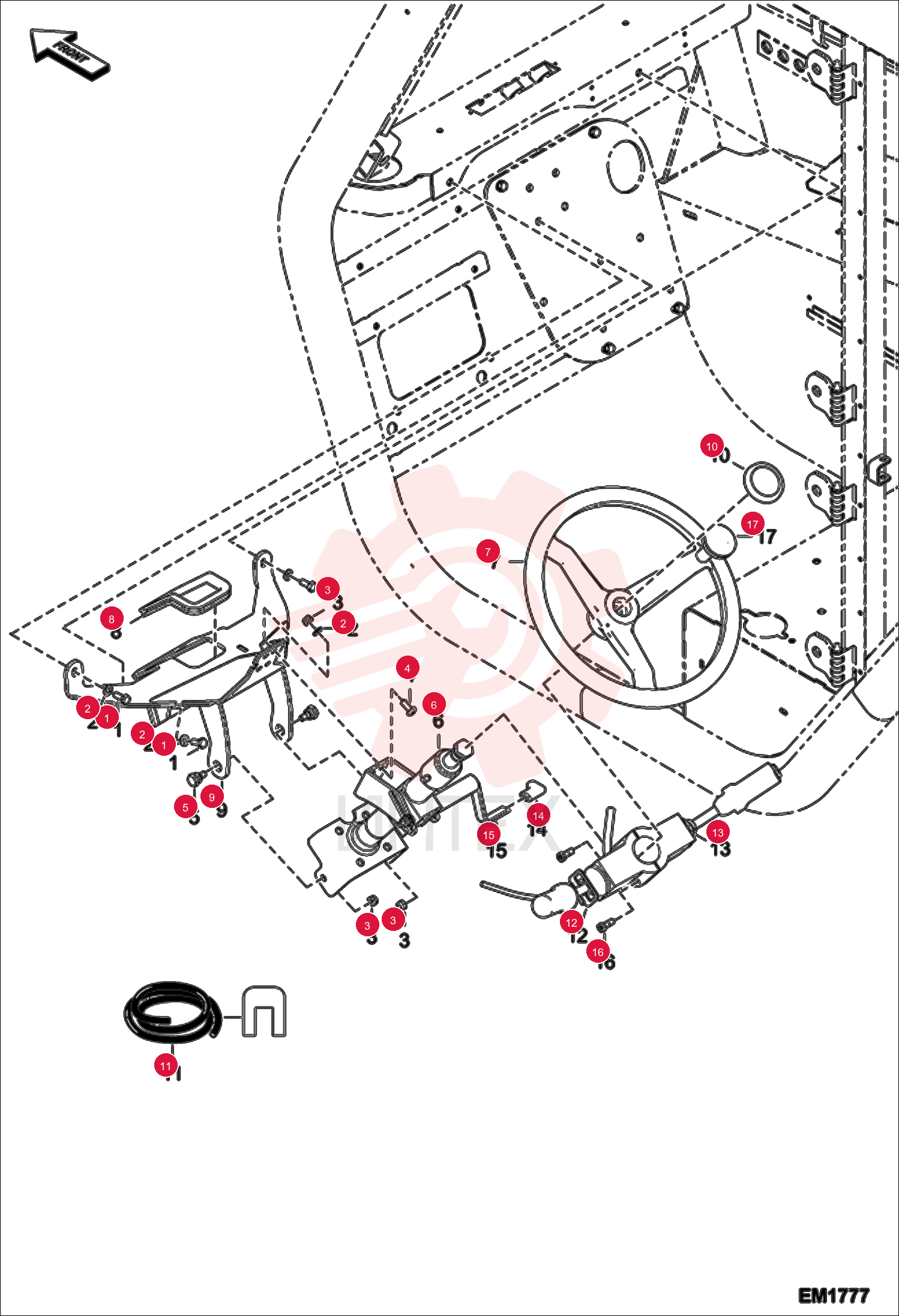

SCREW HEX HD 8.8 (6)

SCREW HEX HD 8.8 (6)

SCREW HEX HD 8.8 (6)

1 4CM820

  • 4CM820 - SCREW HEX HD 8.8

2 01697.2

  • 01697.2 - Washer

3 01681.6

  • 01681.6 - Nut

4 63359.4

  • 63359.4 - Screw

5 97210.9

  • 97210.9 - Pin

6 6908476

  • 6908476 - STEERING SHAFT

7 6927931

  • 6927931 - STEERING WHEEL

8 6908477

  • 6908477 - STEERING WHEEL

9 6915747

  • 6915747 - STEERING COLUMN SUPPORT

10 6927958

  • 6927958 - MASK
  • STEERING WHEEL

11 94018.9

  • 94018.9 - Steering wheel cap

12 6909935

  • 6909935 - SEAL
  • CRIMPED L 390

13 98241.3

  • 98241.3 - Reverser

14 98242.9

  • 98242.9 - Drive/lighting control lever

15 97502.9

  • 97502.9 - Knob
  • steering column adjust

16 6909993

  • 6909993 - SCREW TCB M5X40

17 7013139

  • 7013139 - HANDLE
  • STEERING WHEEL
