Bobcat
/
T35120L
/

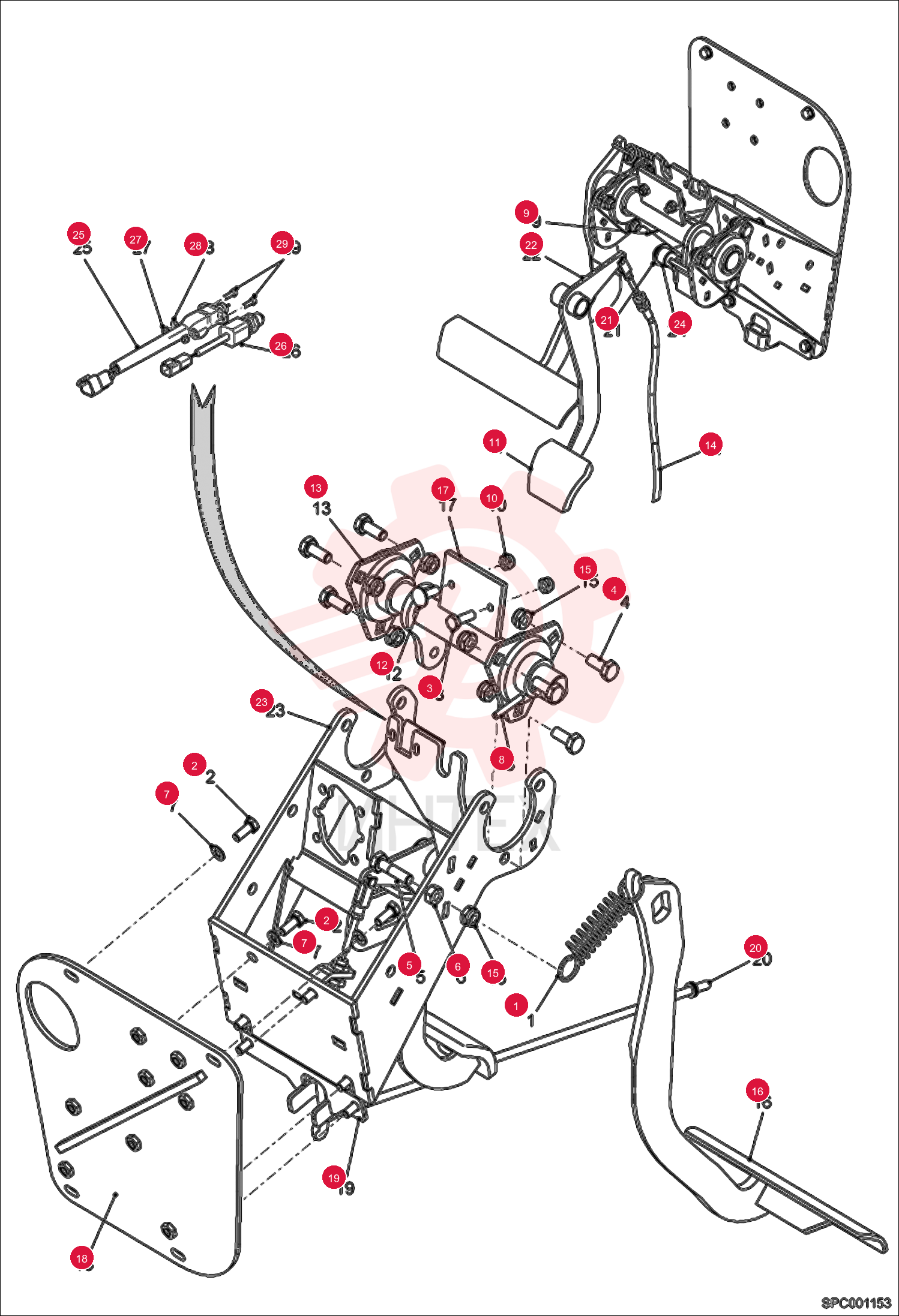

Spring 01124.7 (2)

Spring 01124.7 (2)

Spring 01124.7 (2)

1 01124.7

  • 01124.7 - Spring

2 4CM820

  • 4CM820 - SCREW HEX HD 8.8

3 4CM825

  • 4CM825 - BOLT HEX HEAD

4 1CM1025

  • 1CM1025 - BOLT

5 1CM1040

  • 1CM1040 - BOLT

6 01669.1

  • 01669.1 - Nut

7 01697.2

  • 01697.2 - Washer

8 01739.2

  • 01739.2 - Pin

9 01754.1

  • 01754.1 - Pin

10 01681.6

  • 01681.6 - Nut

11 59893.8

  • 59893.8 - Pedal pad

12 62185.4

  • 62185.4 - Screw

13 77919.9

  • 77919.9 - Bracket

14 98240.5

  • 98240.5 - Throttle Cable

15 7252655

  • 7252655 - NUT LOCK

16 6908478

  • 6908478 - PEDAL
  • BRAKE

17 6908479

  • 6908479 - PEDAL SHAFT

18 6909977

  • 6909977 - BRACKET

19 6910649

  • 6910649 - PEDAL STOP

20 6914781

  • 6914781 - RUBBER MOUNTING

21 6917140

  • 6917140 - WASHER

22 6917796

  • 6917796 - PEDAL

23 6924734

  • 6924734 - PEDAL SUPPORT

24 6917802

  • 6917802 - BRACKET

25 6909383

  • 6909383 - SENSOR
  • INCHING

26 6909324

  • 6909324 - SENSOR
  • STOP

27 6918227

  • 6918227 - SWITCH DETECTOR

28 7248549

  • 7248549 - NUT

29 6910952

  • 6910952 - WASHER JZC5

30 01478.7

  • 01478.7 - SCREW
