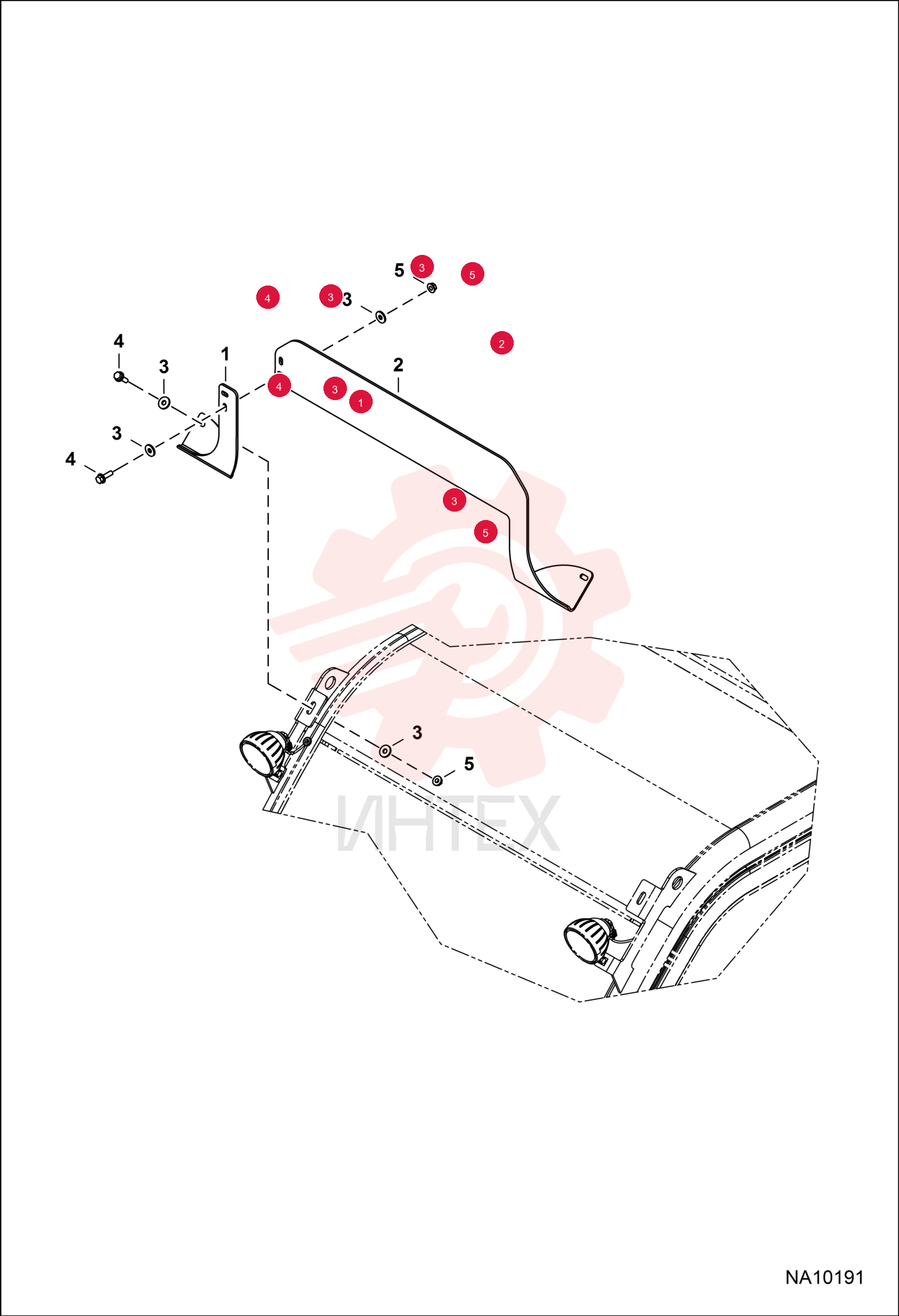

PLATE 7242636

PLATE 7242636

PLATE 7242636

1 7242636

  • 7242636 - PLATE

2 7242637

  • 7242637 - PLATE

3 17EM60

  • 17EM60 - WASHER

4 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

5 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL
