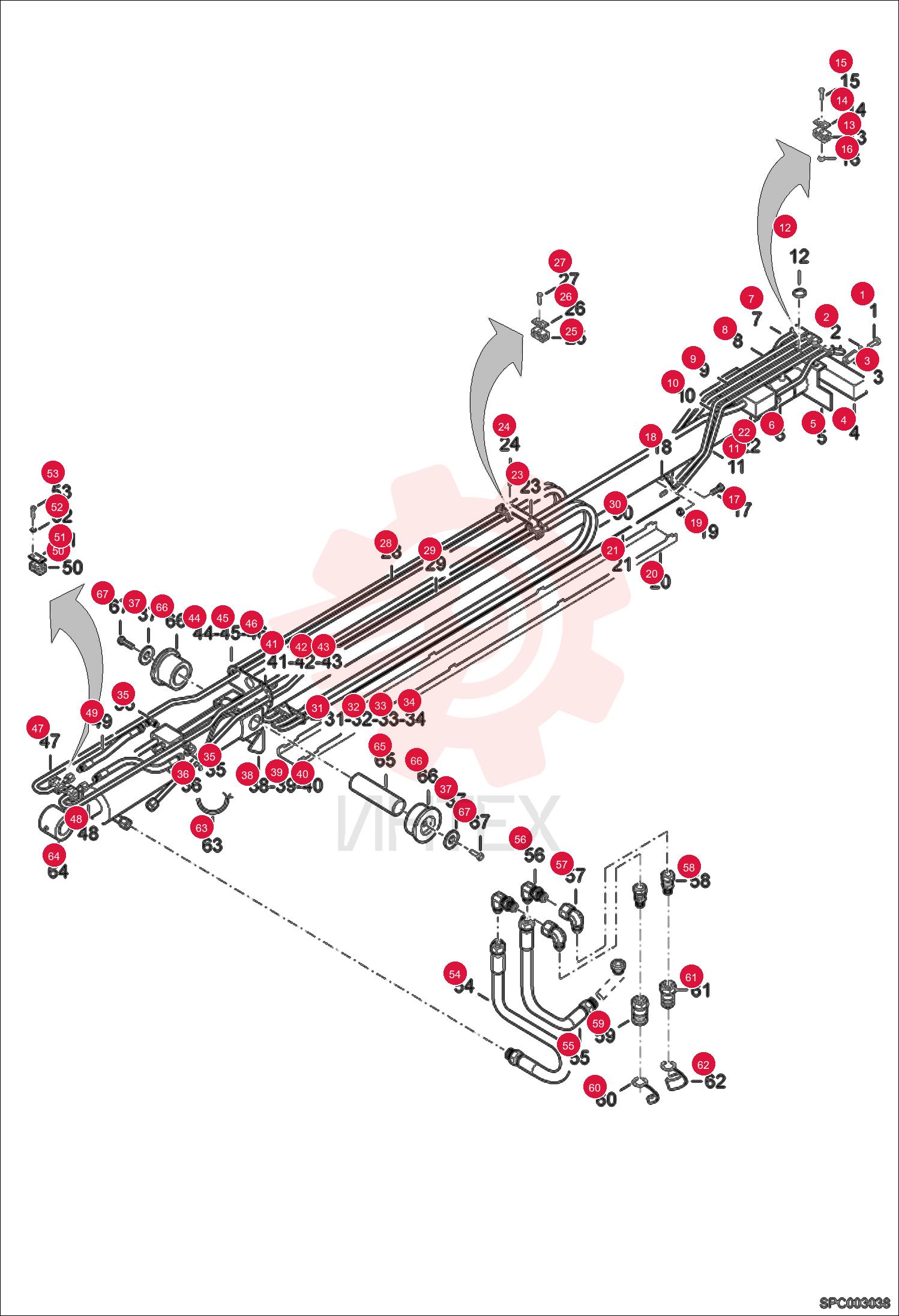

Screw 77492.7 (1)

Screw 77492.7 (1)

Screw 77492.7 (1)

1 77492.7

  • 77492.7 - Screw

2 7235680

  • 7235680 - WASHER FLAT

3 100357-03X

  • 100357-03X - PIN

4 77798.7

  • 77798.7 - Support

5 88523.8

  • 88523.8 - Support

6 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

7 77792.0

  • 77792.0 - Hydraulic pipe

8 77386.1

  • 77386.1 - Tube

9 77387.9

  • 77387.9 - Tube

10 77388.7

  • 77388.7 - Tube

11 77389.5

  • 77389.5 - Tube

12 6624289

  • 6624289 - STRAP
  • TIE

13 55932.8

  • 55932.8 - Clamp

14 7228311

  • 7228311 - PLATE

15 01508.1

  • 01508.1 - Screw

16 01681.6

  • 01681.6 - Nut

17 01604.8

  • 01604.8 - Screw

18 77791.2

  • 77791.2 - Spacer

19 7252655

  • 7252655 - NUT LOCK

20 77396.0

  • 77396.0 - Support

21 77652.6

  • 77652.6 - Panel

22 6927069

  • 6927069 - TELESCOPE CYLINDER

23 89390.9

  • 89390.9 - Bracket

24 4CM816

  • 4CM816 - SCREW HEX HD 8.8

25 55932.8

  • 55932.8 - Clamp

26 7228311

  • 7228311 - PLATE

27 01578.4

  • 01578.4 - Screw

28 77777.1

  • 77777.1 - Hose

29 77778.9

  • 77778.9 - Hose

30 77397.8

  • 77397.8 - Hose

31 77655.9

  • 77655.9 - Pin

32 77402.6

  • 77402.6 - Support

33 01604.8

  • 01604.8 - Screw

34 7252655

  • 7252655 - NUT LOCK

35 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

36 7244882

  • 7244882 - FITTING HYDRAULIC

37 6925869

  • 6925869 - HOSE

38 94414.0

  • 94414.0 - Hose

39 7030195

  • 7030195 - WASHER

40 77794.6

  • 77794.6 - Support

41 7225260

  • 7225260 - WASHER

42 01604.8

  • 01604.8 - Screw

43 77784.7

  • 77784.7 - Support

44 7225260

  • 7225260 - WASHER

45 01604.8

  • 01604.8 - Screw

46 77394.5

  • 77394.5 - Bracket

47 32090.3

  • 32090.3 - Screw

48 7252655

  • 7252655 - NUT LOCK

49 90180.1

  • 90180.1 - Tube

50 90179.3

  • 90179.3 - Tube

51 6925870

  • 6925870 - HOSE

52 7247212

  • 7247212 - HOSE HYDRAULIC

53 7179623

  • 7179623 - SLEEVE

54 61357.0

  • 61357.0 - Welding plate

55 01717.8

  • 01717.8 - Washer

56 001338-08T

  • 001338-08T - SCREW

57 76367.2

  • 76367.2 - Hose

58 77398.6

  • 77398.6 - Hose

59 010370-57L

  • 010370-57L - ELBOW UNION

60 010370-90W

  • 010370-90W - ELBOW PIECE

61 7225156

  • 7225156 - FITTING
  • HYD

62 7225158

  • 7225158 - COUPLER

63 7225161

  • 7225161 - CAP

64 7225159

  • 7225159 - COUPLER

65 7225160

  • 7225160 - CAP

66 6916536

  • 6916536 - WIRE

67 6926430

  • 6926430 - HYDRAULIC CYLINDER

68 84627.9

  • 84627.9 - Pivot pin

69 84626.1

  • 84626.1 - Plug

70 84630.3

  • 84630.3 - Screw
