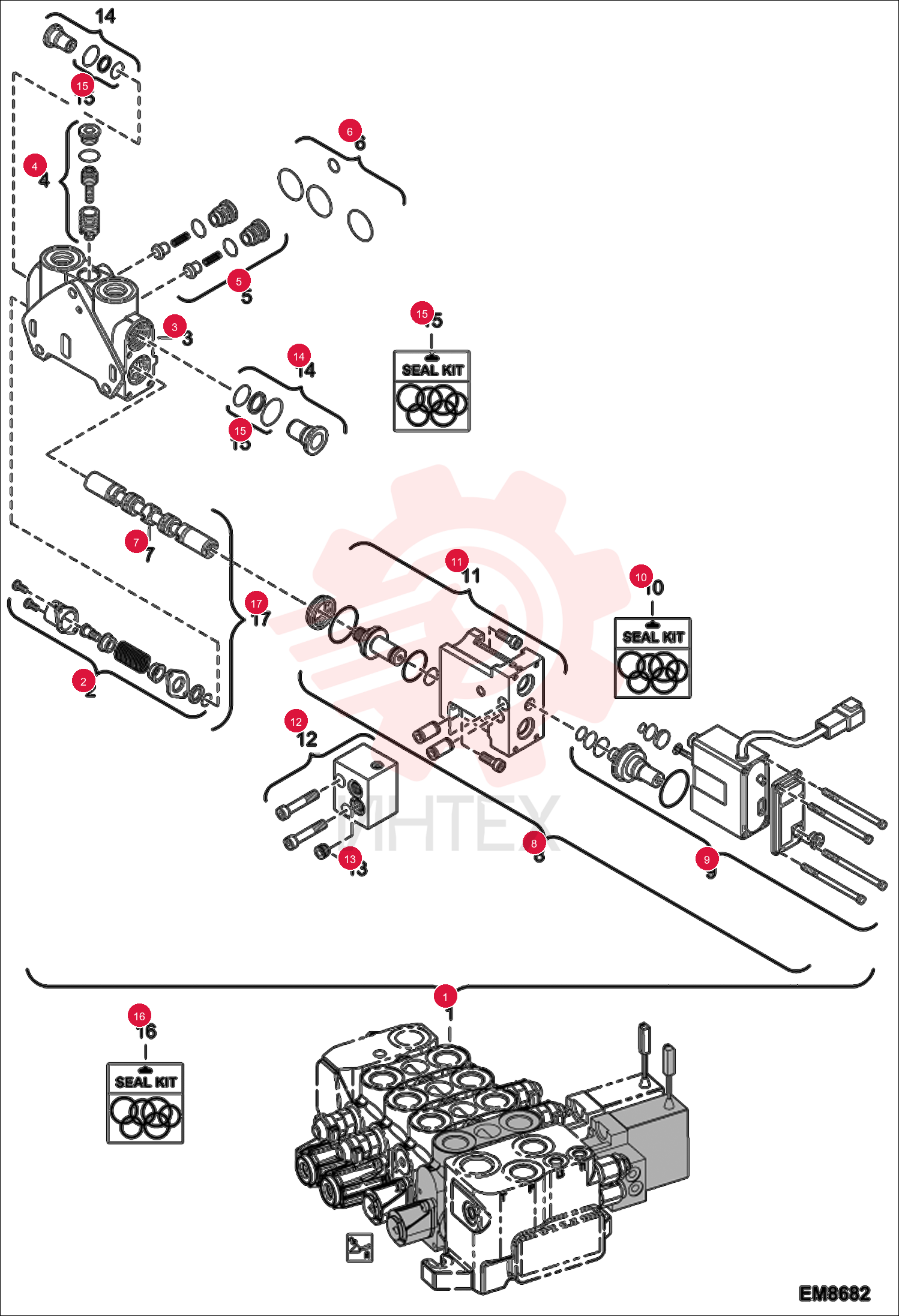

SPOOL RETURN 6910714 (2)

SPOOL RETURN 6910714 (2)

SPOOL RETURN 6910714 (2)

1 6910714

  • 6910714 - SPOOL RETURN

2 97302.4

  • 97302.4 - Pressure compensator kit

3 6691133

  • 6691133 - CHECK VALVE

4 97295.0

  • 97295.0 - Set of seals

5 7012484

  • 7012484 - ELECTRAUHYDRO
  • ACTUATION

6 6910715

  • 6910715 - VALVE
  • TELESCOPIC

7 6910717

  • 6910717 - SEAL KIT

8 7012485

  • 7012485 - FITTING KIT

9 6910719

  • 6910719 - FILTER

10 75987.8

  • 75987.8 - PLUG

11 6910713

  • 6910713 - SEAL KIT

12 7012483

  • 7012483 - SEAL KIT

13 7012605

  • 7012605 - SPOOL KIT
