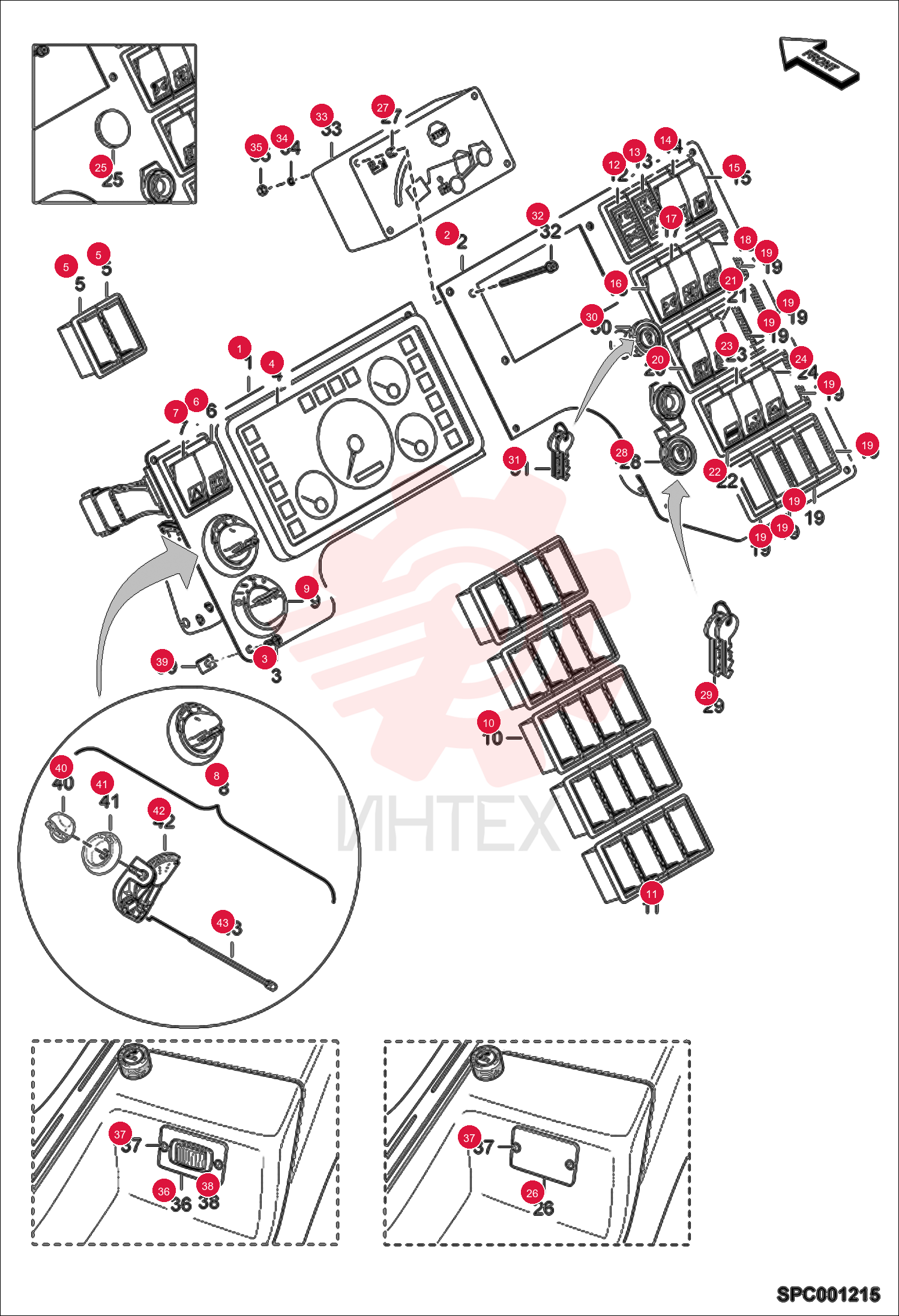

L.H. control panel plate 96080.7 (3)

L.H. control panel plate 96080.7 (3)

L.H. control panel plate 96080.7 (3)

1 96080.7

  • 96080.7 - L.H. control panel plate

2 6914170

  • 6914170 - R.H. control panel plate

3 6910505

  • 6910505 - SCREW

4 6915871

  • 6915871 - INSTRUMENT PANNEL

5 80220.7

  • 80220.7 - Bezel

6 96591.3

  • 96591.3 - Switch
  • beacon light

7 96590.5

  • 96590.5 - Warning Switch

8 6926588

  • 6926588 - HEATING CONTROL

9 96608.5

  • 96608.5 - Fan Speed Switch

10 80220.7

  • 80220.7 - Bezel

11 80221.5

  • 80221.5 - Bezel

12 96595.4

  • 96595.4 - Trailer turn indicator

13 96594.7

  • 96594.7 - Steering mode indicator

14 96593.9

  • 96593.9 - Steering mode switch

15 96592.1

  • 96592.1 - Lever Switch

16 96600.2

  • 96600.2 - Switch
  • head lamp

17 96601.0

  • 96601.0 - Working light switch

18 96597.0

  • 96597.0 - Fog light switch

19 65784.1

  • 65784.1 - Blank Plug

20 96602.8

  • 96602.8 - Switch
  • rear wiper/washer

21 96603.6

  • 96603.6 - Switch
  • roof wiper

22 97519.3

  • 97519.3 - Switch
  • transmission mode

23 6911728

  • 6911728 - LOCKING-DECOMPRESSION SWITCH

24 6910895

  • 6910895 - SWITCH
  • HYD AUX

25 92299.7

  • 92299.7 - Plug

26 6910313

  • 6910313 - PLATE

27 6910953

  • 6910953 - SPACER
  • JOYSTICK

28 6928151

  • 6928151 - SWITCH
  • IGNITION (WITHOUT CAP)

29 6926414

  • 6926414 - SET OF KEYS

30 7239655

  • 7239655 - SWITCH ROTARY

31 97886.6

  • 97886.6 - Knob head

32 97054.1

  • 97054.1 - Set of keys

33 68566.9

  • 68566.9 - Screw

34 6913764

  • 6913764 - INDICATOR

35 13415.5

  • 13415.5 - Washer

36 4DM5

  • 4DM5 - NUT HEXAGON M5

37 6914586

  • 6914586 - SUPPORT

38 6910951

  • 6910951 - SCREW

39 96598.8

  • 96598.8 - Switch (proportional)

40 6909903

  • 6909903 - CLIPS

41 7012297

  • 7012297 - CONTROLLER

42 7012298

  • 7012298 - CAP

43 7012299

  • 7012299 - CONTROL BLOCK
