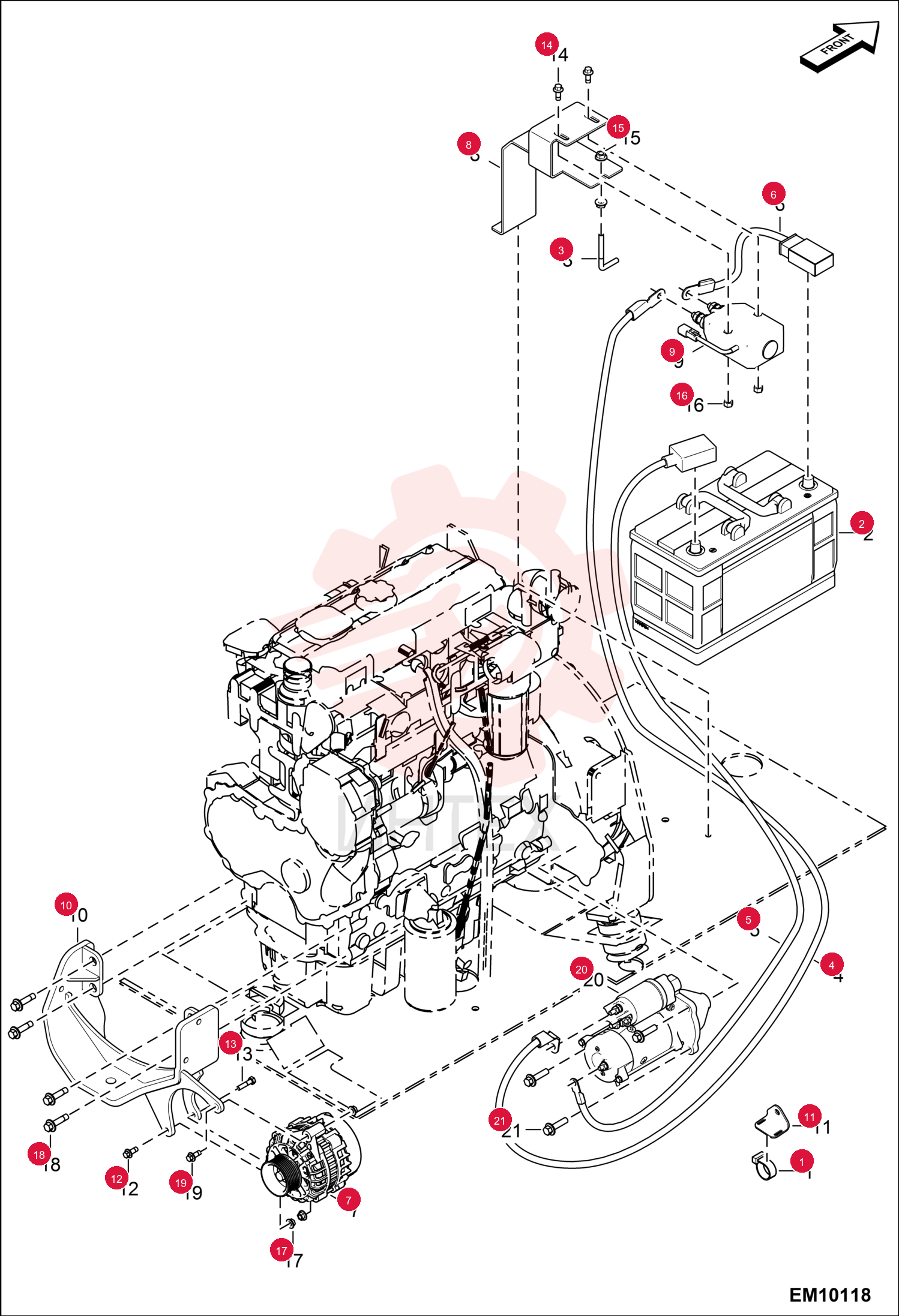

STRAP T250 H/D (4)

STRAP T250 H/D (4)

STRAP T250 H/D (4)

1 6678669

  • 6678669 - STRAP T250 H/D

2 7223985

  • 7223985 - BATTERY 110AH 750CCA

3 7165029

  • 7165029 - ROD
  • THREADED

4 7166224

  • 7166224 - CABLE STARTER TO DISC

5 7166225

  • 7166225 - CABLE BATT TO GND

6 7166226

  • 7166226 - CABLE BATTERY

7 7167686

  • 7167686 - ALTERNATOR ENGINE

8 7176918

  • 7176918 - BRACKET BATTERY

9 7283602

  • 7283602 - DISCONNECTOR
  • BATTERY

10 7186812

  • 7186812 - HOLDER
  • W/A

11 7201409

  • 7201409 - BRACKET
  • CABLE

12 29CM835

  • 29CM835 - BOLT

13 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

14 29CM855

  • 29CM855 - SCREW HX FLGD HD CAP

15 43DM8

  • 43DM8 - NUT FLANGED HEX

16 4DM8

  • 4DM8 - NUT HEX

17 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

18 59CM1635

  • 59CM1635 - SCREW

19 59CM825

  • 59CM825 - BOLT

20 7169477

  • 7169477 - STARTER

21 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP
