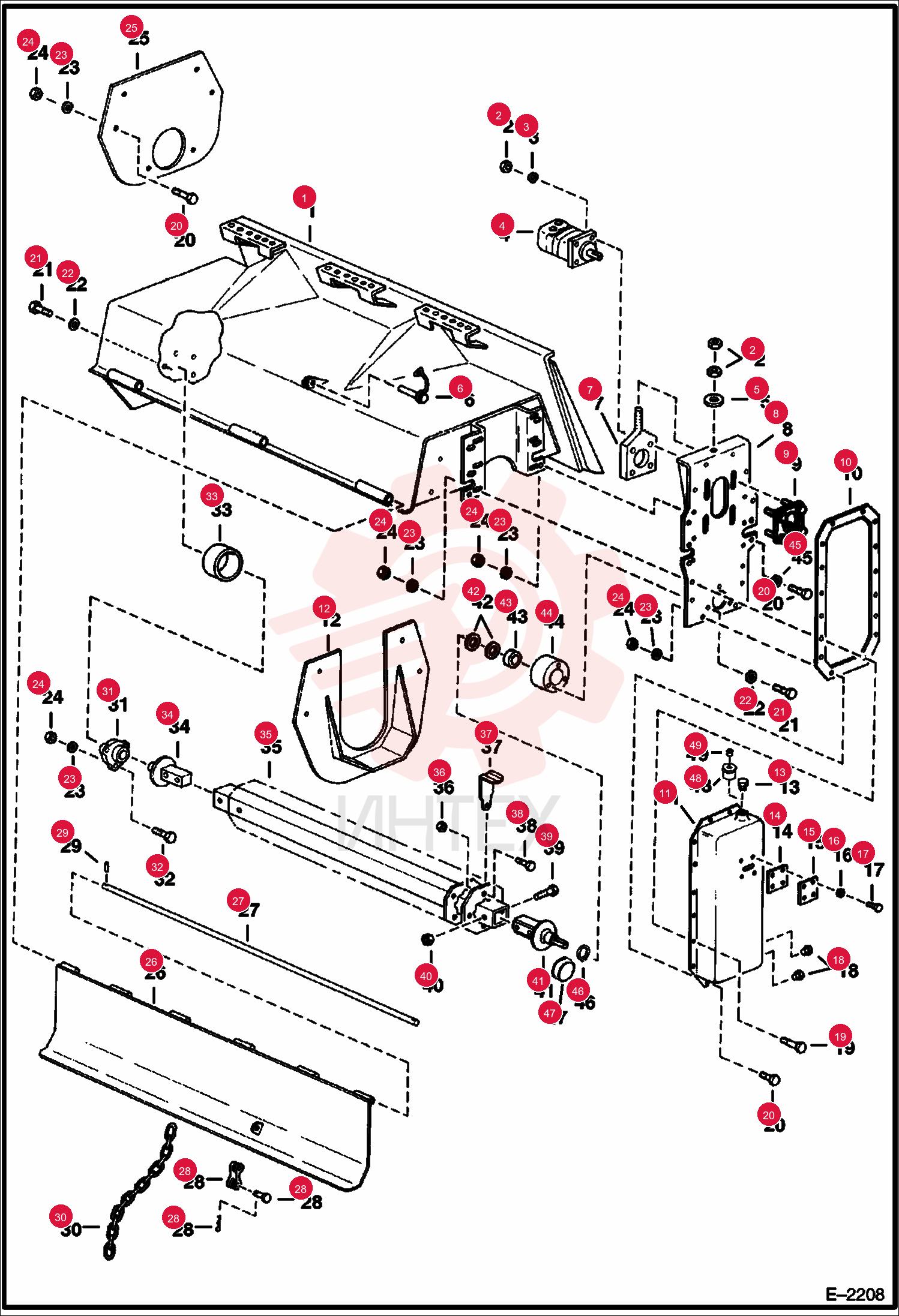

MAIN FRAME 6664512

MAIN FRAME 6664512

MAIN FRAME 6664512

1 6664512

  • 6664512 - MAIN FRAME
  • 52" (1321mm)

2 6675791

  • 6675791 - MAIN FRAME
  • 68" (1727mm)

3 61D8

  • 61D8 - NUT 5

4 23E8

  • 23E8 - WASHER

5 6664504

  • 6664504 - MOTOR

6 25E21

  • 25E21 - WASHER FLAT PLAIN

7 6665094

  • 6665094 - PIN
  • CLEVIS

8 6664505

  • 6664505 - PLATE
  • chain adjustment

9 6664510

  • 6664510 - PLATE
  • hyd. motor

10 6664506

  • 6664506 - PLATE
  • motor bolt

11 6664503

  • 6664503 - GASKET

12 6664509

  • 6664509 - COVER

13 6664511

  • 6664511 - LEFT SHOE

14 6664507

  • 6664507 - PLUG

15 6665095

  • 6665095 - GASKET

16 6665096

  • 6665096 - PLATE

17 23E4

  • 23E4 - WASHER

18 17C408

  • 17C408 - BOLT

19 6664508

  • 6664508 - PLUG

20 17C620

  • 17C620 - BOLT

21 17C616

  • 17C616 - BOLT 5

22 17C716

  • 17C716 - BOLT

23 23E6

  • 23E6 - WASHER

24 4E6

  • 4E6 - WASHER

25 61D6

  • 61D6 - NUT HEX FINISHED GR5

26 6664516

  • 6664516 - RGHT SHOE

27 6664514

  • 6664514 - DOOR
  • 52" (1321mm)

28 6669205

  • 6669205 - DOOR
  • 68" (1727mm)

29 6664515

  • 6664515 - ROD
  • 52" (1321mm)

30 6669204

  • 6669204 - ROD
  • 68" (1727mm)

31 6664535

  • 6664535 - MID-LINK

32 14J2520

  • 14J2520 - PIN

33 6664513

  • 6664513 - CHAIN

34 6664492

  • 6664492 - BEARING

35 10C616

  • 10C616 - BOLT SHRT SQ NK RHD? 3/8-16X1 GRD 5

36 6664491

  • 6664491 - RING

37 6664493

  • 6664493 - SHAFT
  • TILLER RH
  • right end

38 6669206

  • 6669206 - TUBE
  • tine - 68" (1727mm)

39 6664494

  • 6664494 - TUBE
  • tine - 52" (1321mm)

40 61D10

  • 61D10 - NUT
  • 52" (1321mm)

41 61D10

  • 61D10 - NUT
  • 68" (1727mm)

42 6664495

  • 6664495 - TINE
  • TILLER
  • tine - 52" (1321mm)

43 6664495

  • 6664495 - TINE
  • TILLER
  • tine - 68" (1727mm)

44 6664527

  • 6664527 - BOLT
  • tine - 52" (1321mm)

45 6664527

  • 6664527 - BOLT
  • tine - 68" (1727mm)

46 17C848

  • 17C848 - BOLT

47 59D8

  • 59D8 - NUT LOCK HEX PT

48 7100890

  • 7100890 - SHAFT
  • DRIVE
  • motor end - Use W/Ref. 47

49 6664497

  • 6664497 - SEAL
  • bearing

50 6664498

  • 6664498 - BEARING

51 6664499

  • 6664499 - HOUSING
  • BEARING TILLER
  • bearing

52 25E17

  • 25E17 - WASHER FLAT PLAIN

53 21J25

  • 21J25 - SNAP RING
  • Use W/6664496 shaft - Was 6665241

54 7100777

  • 7100777 - BUSHING
  • Use W/ 7100890 shaft

55 19F23

  • 19F23 - FITTING
  • HYD REDUCER
  • Was 6677392

56 6677391

  • 6677391 - RELIEF VALVE
