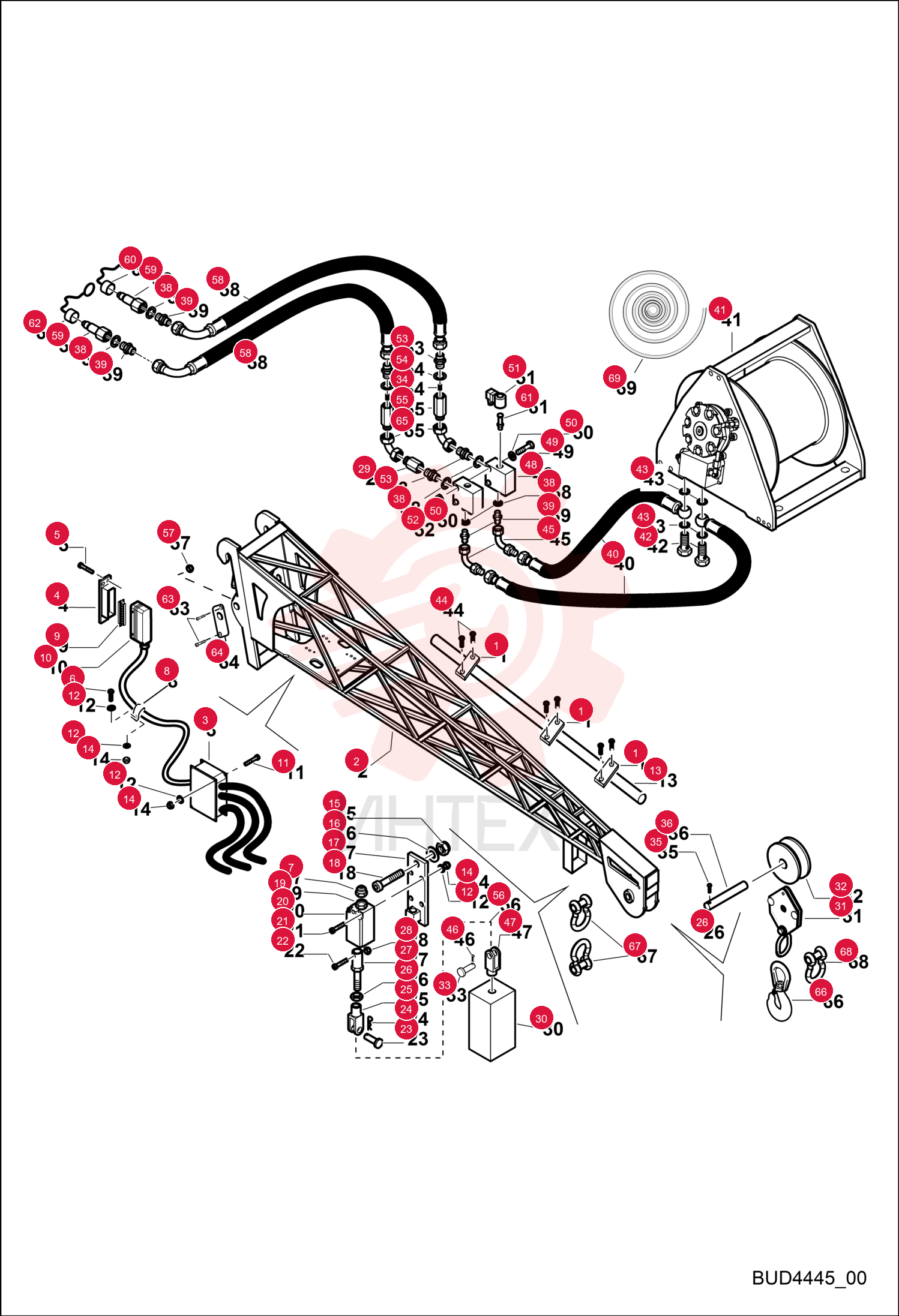

SUPPORT 7018225

SUPPORT 7018225

SUPPORT 7018225

1 7018225

  • 7018225 - SUPPORT

2 7271522

  • 7271522 - CRANE EXTENSION

3 7271578

  • 7271578 - WIRING

4 7013720

  • 7013720 - CONNECTOR

5 7018127

  • 7018127 - SCREW

6 7018190

  • 7018190 - SCREW

7 7018191

  • 7018191 - FITTING

8 7018192

  • 7018192 - CLAMP

9 7013728

  • 7013728 - SOCKET
  • ELECTRIC

10 7013722

  • 7013722 - HOUSING

11 7018193

  • 7018193 - SCREW

12 7018194

  • 7018194 - WASHER

13 7018196

  • 7018196 - TUBELINE

14 7018195

  • 7018195 - NUT HEX

15 7014561

  • 7014561 - NUT
  • SELF LOCKING

16 7018162

  • 7018162 - WASHER FLAT

17 7018197

  • 7018197 - SUPPORT

18 7018198

  • 7018198 - SCREW MACHINE

19 7018043

  • 7018043 - REDUCER

20 7018199

  • 7018199 - SENSOR

21 7018200

  • 7018200 - SCREW

22 7018201

  • 7018201 - SCREW

23 7018202

  • 7018202 - PIN

24 7018203

  • 7018203 - PIN
  • COTTER

25 7018204

  • 7018204 - YOKE

26 7014562

  • 7014562 - NUT

27 7018205

  • 7018205 - PIN

28 7018206

  • 7018206 - NUT

29 7019823

  • 7019823 - FITTING

30 7272319

  • 7272319 - COUNTERWEIGHT

31 7271645

  • 7271645 - LOOSE PULLEY

32 7271764

  • 7271764 - PULLEY

33 7018229

  • 7018229 - PIN

34 7018209

  • 7018209 - CORE

35 7018210

  • 7018210 - SCREW

36 7271697

  • 7271697 - PIN

37 7018154

  • 7018154 - WASHER

38 7014660

  • 7014660 - NIPPLE

39 7028164

  • 7028164 - FLEXIBLE PIPE

40 7271523

  • 7271523 - WINCH

41 7023860

  • 7023860 - SCREW

42 7019899

  • 7019899 - WASHER

43 7018226

  • 7018226 - SCREW

44 7018215

  • 7018215 - FITTING
  • HYD ELBOW

45 7018228

  • 7018228 - PIN
  • COTTER

46 7018227

  • 7018227 - YOKE

47 7014710

  • 7014710 - VALVE

48 7018216

  • 7018216 - SCREW

49 7018133

  • 7018133 - WASHER FLAT

50 7014712

  • 7014712 - SOLENOID

51 7018217

  • 7018217 - NUT

52 7018218

  • 7018218 - FITTING
  • HYD

53 7018219

  • 7018219 - WASHER

54 7018220

  • 7018220 - UNION

55 7026670

  • 7026670 - CHAIN

56 7018132

  • 7018132 - NUT

57 7018222

  • 7018222 - HOSE
  • HYD

58 7018137

  • 7018137 - COUPLER

59 7018155

  • 7018155 - CAP
  • BLUE

60 7018223

  • 7018223 - SPOOL

61 7018156

  • 7018156 - CAP
  • RED

62 7018131

  • 7018131 - SCREW

63 7028201

  • 7028201 - SUPPORT

64 7018224

  • 7018224 - FITTING
  • HYD ELBOW

65 7271686

  • 7271686 - HOOK

66 7271684

  • 7271684 - HOOK BOLT

67 7271685

  • 7271685 - HOOK BOLT

68 7255225

  • 7255225 - ROPE
