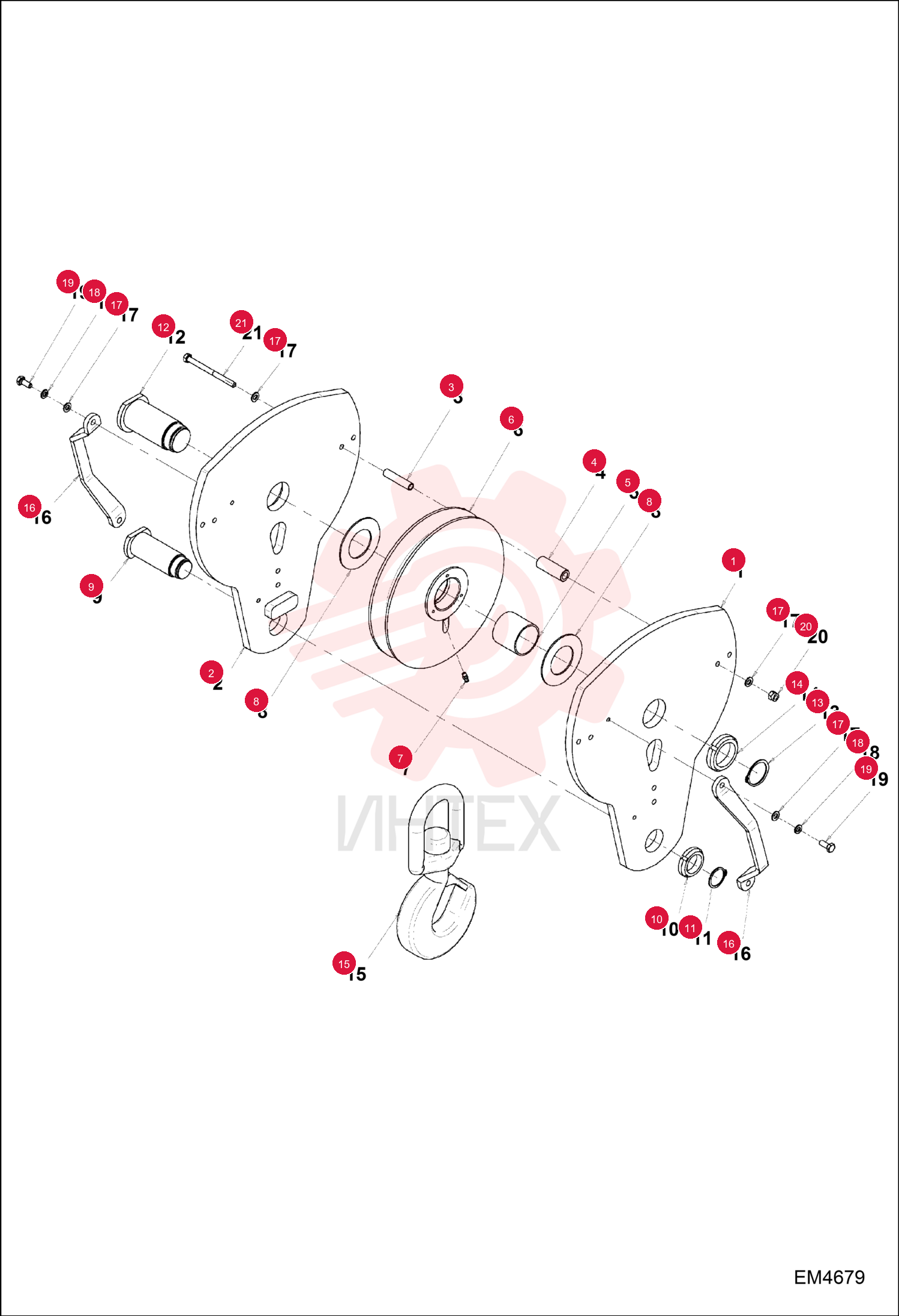

FRAME 7028057

FRAME 7028057

FRAME 7028057

1 7028057

  • 7028057 - FRAME

2 7028060

  • 7028060 - FRAME

3 7028061

  • 7028061 - SPACER
  • TUBE

4 7028062

  • 7028062 - ROLLER

5 7028012

  • 7028012 - BUSHING

6 7028040

  • 7028040 - PULLEY

7 7028024

  • 7028024 - FITTING
  • GREASE

8 7028058

  • 7028058 - WASHER

9 7028063

  • 7028063 - PIN

10 7027992

  • 7027992 - NUT

11 7027993

  • 7027993 - RING
  • RETAINING

12 7028064

  • 7028064 - PIN

13 7028045

  • 7028045 - RING
  • RETAINING

14 7028052

  • 7028052 - NUT

15 7028053

  • 7028053 - HOOK

16 7028065

  • 7028065 - HANDLE

17 7027994

  • 7027994 - WASHER

18 7027997

  • 7027997 - WASHER
  • SPRING

19 7028005

  • 7028005 - BOLT

20 7028001

  • 7028001 - NUT
  • LOCK

21 7028075

  • 7028075 - BOLT
