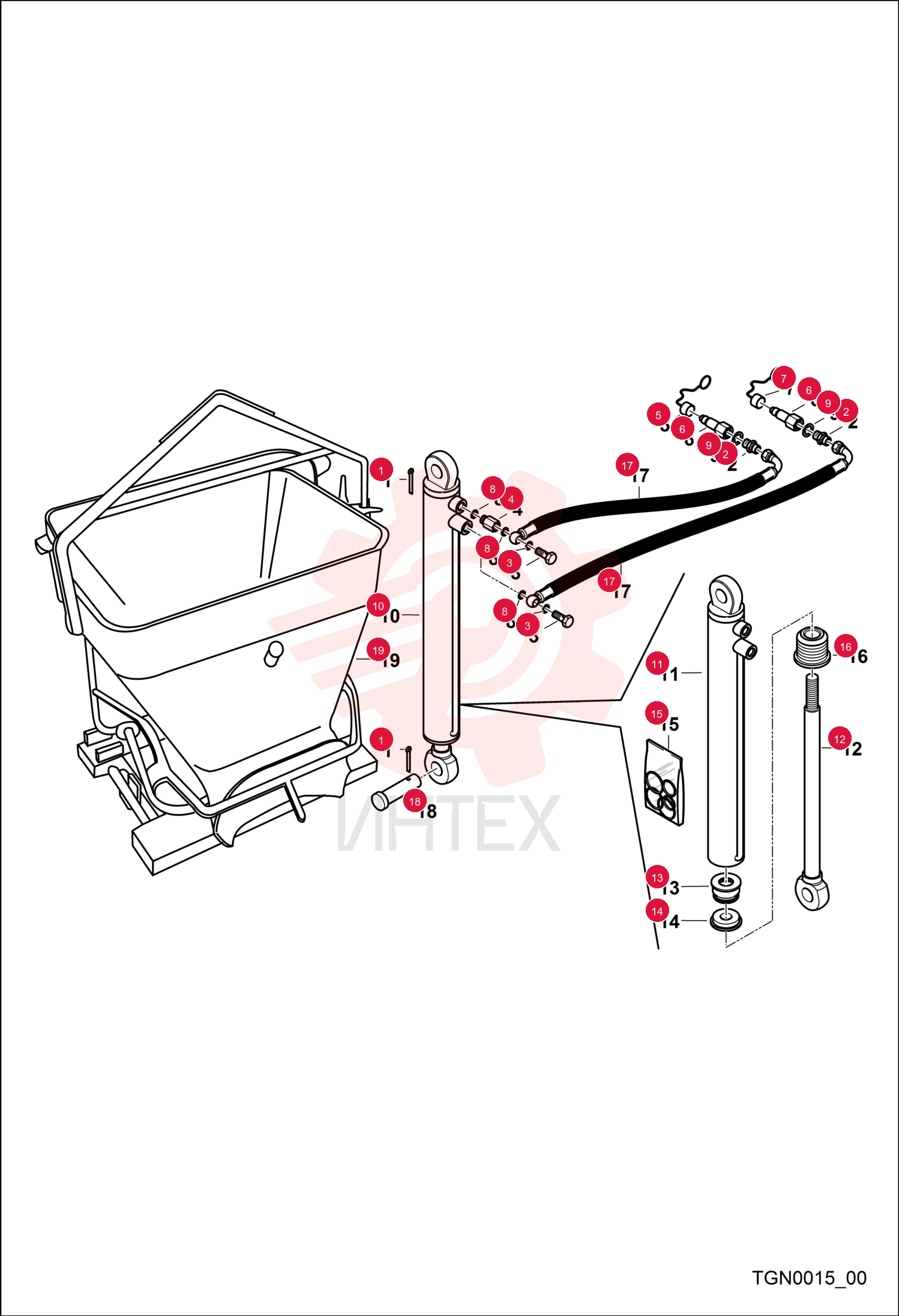

SPLIT PIN 7028198

SPLIT PIN 7028198

SPLIT PIN 7028198

1 7028198

  • 7028198 - SPLIT PIN

2 7018153

  • 7018153 - FITTING

3 7019818

  • 7019818 - BOLT
  • BANJO

4 7019823

  • 7019823 - FITTING

5 7018155

  • 7018155 - CAP
  • BLUE

6 7018137

  • 7018137 - COUPLER

7 7018156

  • 7018156 - CAP
  • RED

8 7023839

  • 7023839 - WASHER

9 7018154

  • 7018154 - WASHER

10 7028154

  • 7028154 - CYLINDER

11 7028155

  • 7028155 - COVER

12 7028156

  • 7028156 - ROD

13 7028157

  • 7028157 - PISTON

14 7028158

  • 7028158 - FLANGE

15 7028159

  • 7028159 - GASKET KIT

16 7028160

  • 7028160 - CYLINDER HEAD

17 7028163

  • 7028163 - PIPE

18 7028168

  • 7028168 - PIN

19 7028183

  • 7028183 - LADLE
