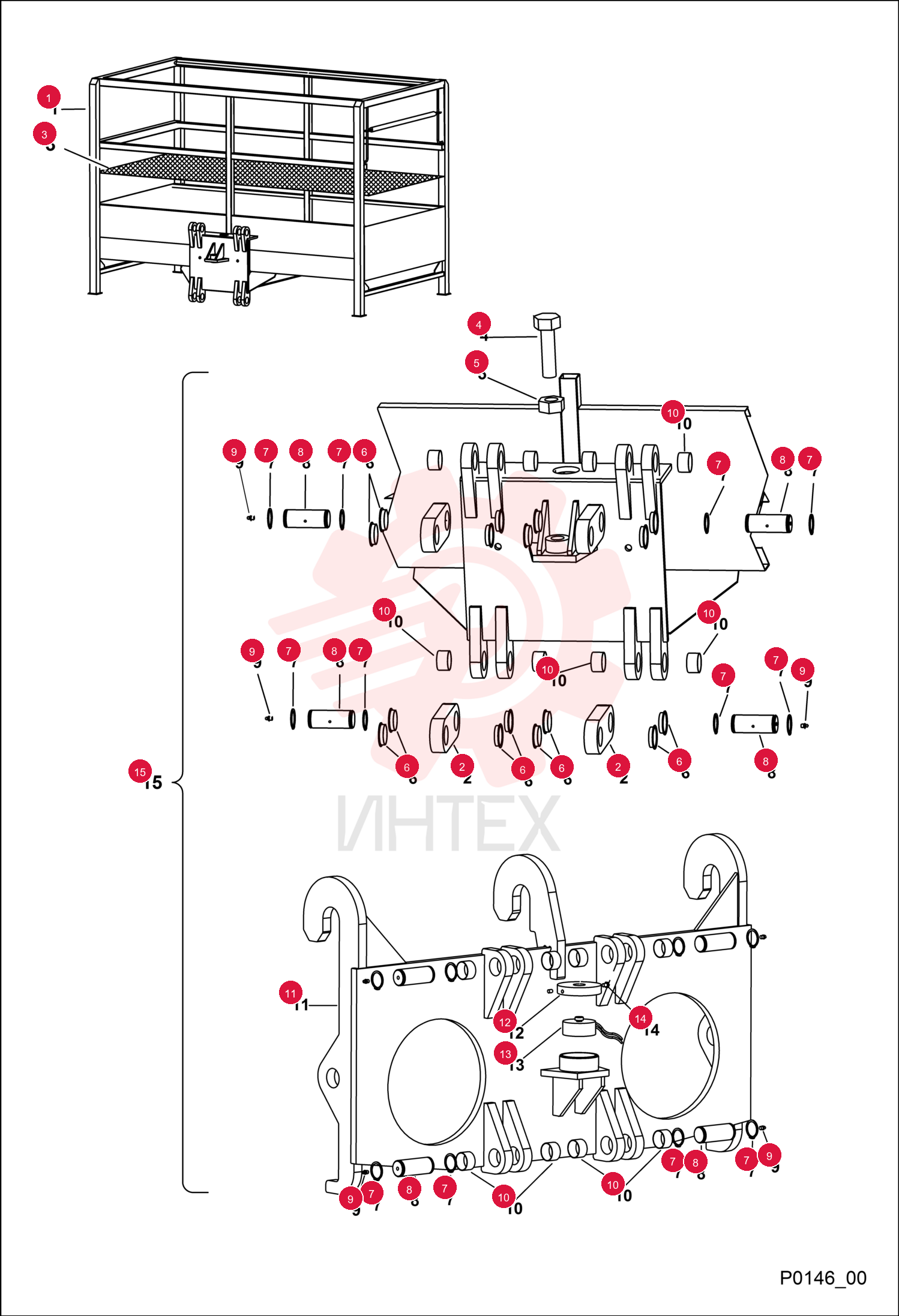

CHASSIS 7018607 (3)

CHASSIS 7018607 (3)

CHASSIS 7018607 (3)

1 7018607

  • 7018607 - CHASSIS

2 7018070

  • 7018070 - LINK

3 7018062

  • 7018062 - PLATE

4 7018063

  • 7018063 - SCREW

5 7018064

  • 7018064 - NUT

6 7018065

  • 7018065 - BUSHING

7 7018066

  • 7018066 - RING
  • SNAP

8 7018067

  • 7018067 - PIN

9 7018068

  • 7018068 - NIPPLE
  • GREASE

10 7018069

  • 7018069 - BUSHING

11 7027880

  • 7027880 - PLATE

12 7018084

  • 7018084 - COVER

13 7018085

  • 7018085 - SENSOR
  • LOAD

14 7019721

  • 7019721 - PIN
  • DOWEL

15 7271659

  • 7271659 - BASKET
