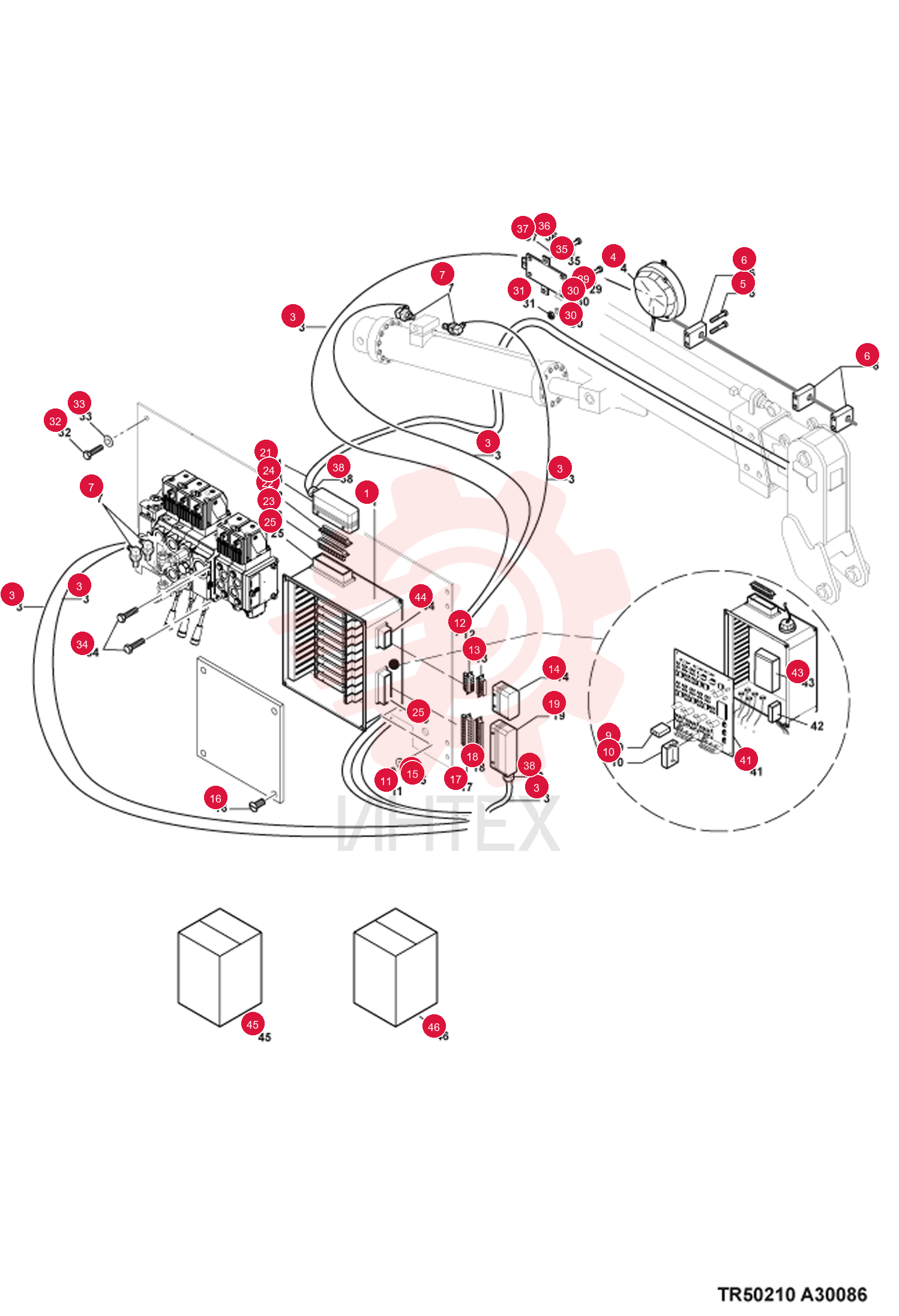

PANEL, CONTROL 7031292

PANEL, CONTROL 7031292

PANEL, CONTROL 7031292

1 7031292

  • 7031292 - PANEL
  • CONTROL

2 7014625

  • 7014625 - WIRE
  • ELECTRIC

3 7014645

  • 7014645 - REEL
  • CABLE

4 7019706

  • 7019706 - SCREW

5 7014912

  • 7014912 - GUIDE
  • CABLE

6 7019793

  • 7019793 - TRANSDUCER PRESSURE

7 7014627

  • 7014627 - HARNESS WIRE

8 7014626

  • 7014626 - HARNESS WIRE

9 7014534

  • 7014534 - SCREW

10 7031290

  • 7031290 - SOCKET
  • ELECTRIC

11 7031291

  • 7031291 - SOCKET
  • ELECTRIC

12 7013726

  • 7013726 - HOUSING

13 7018061

  • 7018061 - WASHER

14 7022933

  • 7022933 - SCREW

15 7013727

  • 7013727 - SOCKET
  • ELECTRIC

16 7013729

  • 7013729 - SOCKET
  • ELECTRIC

17 7013721

  • 7013721 - HOUSING

18 7014628

  • 7014628 - CABLE

19 7013730

  • 7013730 - SOCKET
  • ELECTRIC

20 7013728

  • 7013728 - SOCKET
  • ELECTRIC

21 7013723

  • 7013723 - PLUG
  • CONTACT

22 7013719

  • 7013719 - HOUSING
  • MOUNTING

23 7018098

  • 7018098 - SCREW

24 7018133

  • 7018133 - WASHER FLAT

25 7018059

  • 7018059 - NUT

26 7018129

  • 7018129 - SCREW

27 7018287

  • 7018287 - WASHER

28 7019682

  • 7019682 - SCREW

29 7019668

  • 7019668 - SCREW

30 7019739

  • 7019739 - WASHER

31 7018061

  • 7018061 - WASHER

32 7013733

  • 7013733 - GLAND
  • CABLE

33 7014647

  • 7014647 - CONTROL UNIT

34 7024129

  • 7024129 - CONTROLLER
  • MIDAC

35 7026738

  • 7026738 - ENCLOSURE
  • ELECTRICAL

36 7015133

  • 7015133 - KIT
  • ANGLE LENGTH

37 7015134

  • 7015134 - KIT
  • FASTENERS SUMP
