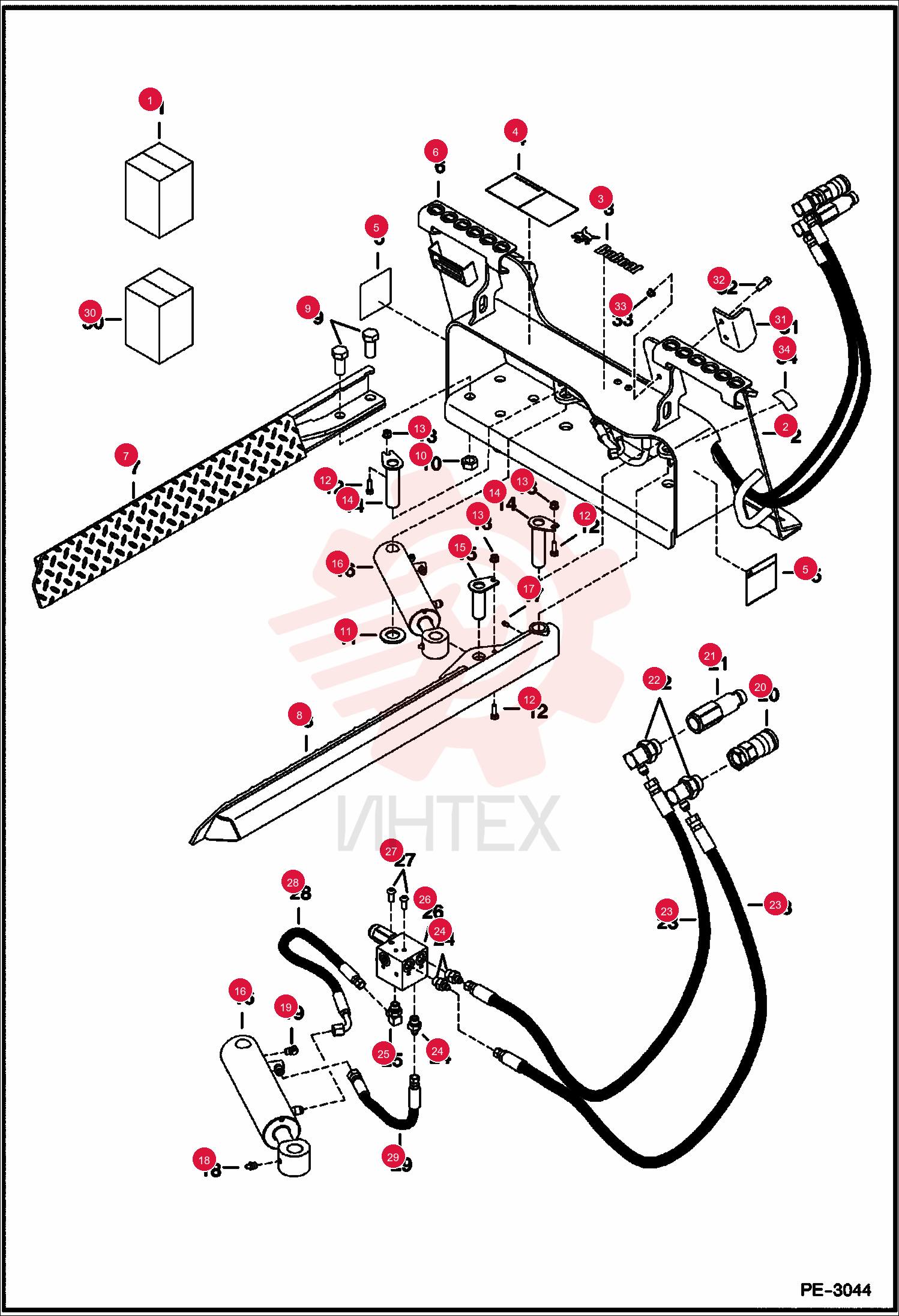

FRAME ASSEMBLY 7123773
1 7123773
- 7123773 - FRAME ASSEMBLY
2 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
3 7127318
- 7127318 - DECAL
- load rating
4 6583862
- 6583862 - DECAL
- WARNING
5 6905263
- 6905263 - STEP
6 7123966
- 7123966 - JAW
- RH
7 7123967
- 7123967 - JAW
- LH
8 17C1228
- 17C1228 - BOLT
9 85D12
- 85D12 - NUT
- 5
10 25E31
- 25E31 - WASHER
11 17C516
- 17C516 - BOLT
12 83D5
- 83D5 - LKNUT HEX FLG GR8
13 7124104
- 7124104 - PIN
14 7124463
- 7124463 - PIN
15 6815562
- 6815562 - CYLINDER
16 10H35
- 10H35 - FTG GREASE STRAIGHT
17 10H25
- 10H25 - FTG GREASE STRAIGHT
18 12H15
- 12H15 - FTG GREASE 90
19 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
20 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
21 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
22 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
23 17KB0612
- 17KB0612 - FITTING
- HYD ELBOW
24 7125267
- 7125267 - HOSE
25 15KB0406
- 15KB0406 - FITTING
- HYD CONNECTOR
26 17KB0406
- 17KB0406 - FITTING
- HYD ELBOW
27 6691285
- 6691285 - ORIFICE
28 6677150
- 6677150 - SEAL KIT
- for 6691286 check valve
29 6691286
- 6691286 - CHECK VALVE
30 6673213
- 6673213 - SEAL KIT
- For 6691287 relief valve - Was 6664032
31 6691287
- 6691287 - RELIEF VALVE
32 6689936
- 6689936 - VALVE ASSY
33 25G512
- 25G512 - SCREW
34 7124862
- 7124862 - HOSE
35 7125266
- 7125266 - HOSE
36 7130911BR
- 7130911BR - KIT DECAL
37 7130911AR
- 7130911AR - KIT DECAL
38 7130910BR
- 7130910BR - KIT
- TRANSLATION
39 7130910AR
- 7130910AR - KIT
- TRANSLATION
40 7130911JP
- 7130911JP - KIT DECAL
41 6958561
- 6958561 - STOP BOB-TACH
42 17C616
- 17C616 - BOLT 5
43 83D6
- 83D6 - LKNUT HEX FLG GR8
44 6815993
- 6815993 - DECAL
- LIFT
- tie down
