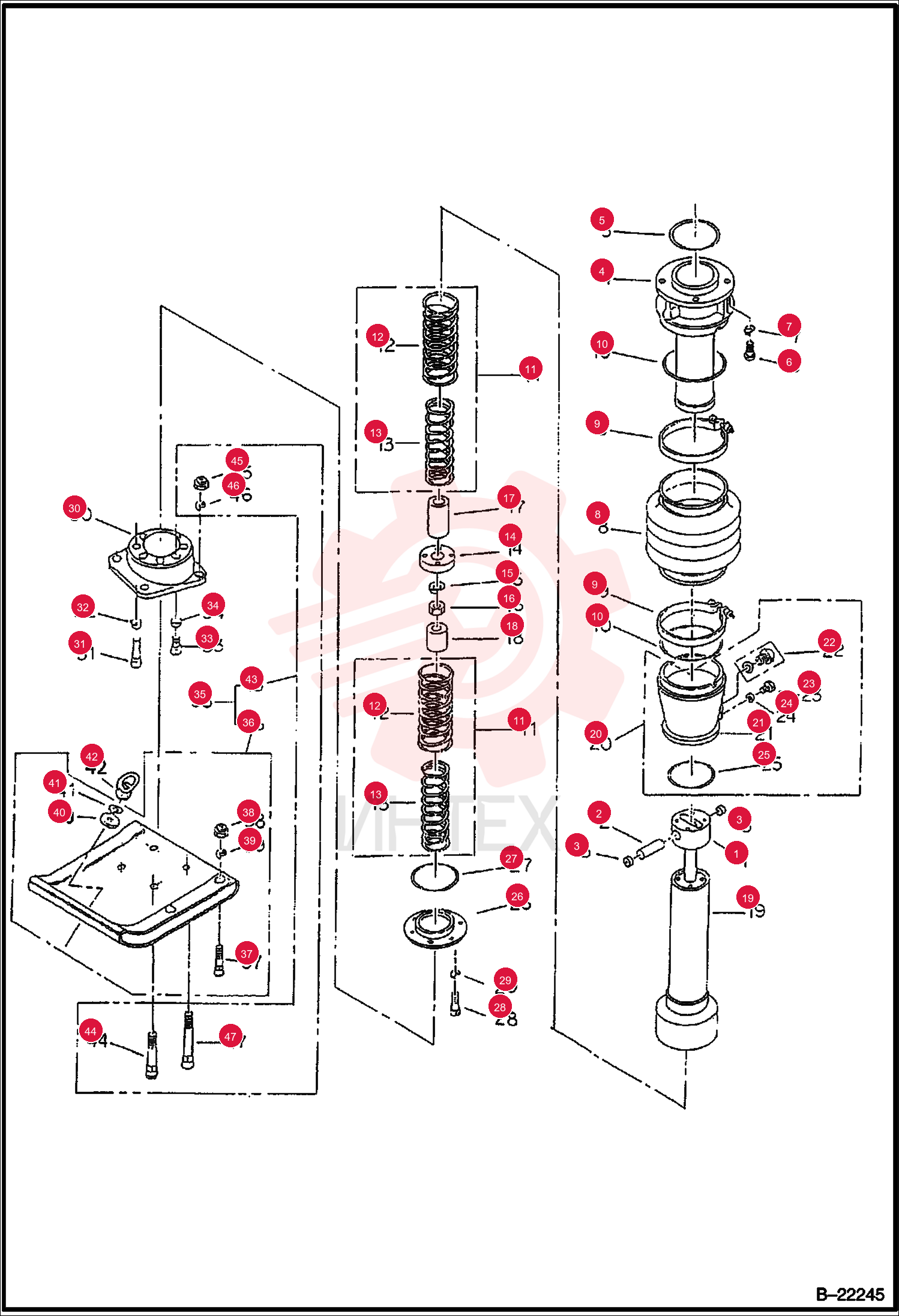

PISTON IR59841213

PISTON IR59841213

PISTON IR59841213

1 IR59841213

  • IR59841213 - PISTON

2 IR59841221

  • IR59841221 - PIN

3 IR59841239

  • IR59841239 - NYLON PLUG

4 IR59188029

  • IR59188029 - CYLINDER
  • Model BR72 & RX-754H

5 IR59841254

  • IR59841254 - O-RING

6 IR59832030

  • IR59832030 - BOLT

7 IR54680731

  • IR54680731 - BELLOWS
  • Model BR72 & RX-754H

8 IR58802208

  • IR58802208 - BELLOWS
  • RX-654H

9 IR54680749

  • IR54680749 - BAND W/GUIDE RAIL
  • W/Guide Rail & W/Nut - Model BR72 & RX-754H

10 IR59188037

  • IR59188037 - BAND
  • W/Nut - RX-654H

11 IR59841494

  • IR59841494 - O-RING
  • RX-654H

12 IR59188045

  • IR59188045 - O-RING
  • Model BR72 & RX-754H

13 IR59188052

  • IR59188052 - SPRING ASSEMBLY
  • coil - W/Ref. 12 & 13

14 IR59841338

  • IR59841338 - COIL SPRING
  • small

15 IR54680756

  • IR54680756 - PISTON GUIDE
  • Model BR72 & RX-754H

16 IR59841346

  • IR59841346 - PISTON GUIDE
  • RX-654H

17 IR59841353

  • IR59841353 - WASHER
  • SPRING M20

18 IR59841361

  • IR59841361 - NUT

19 IR59841379

  • IR59841379 - DAMPER

20 IR59188060

  • IR59188060 - DAMPER

21 IR54680764

  • IR54680764 - LOWER CYLINDER
  • lower - Model RX-654H - Model BR72 & RX-754H

22 IR59841387

  • IR59841387 - LOWER CYL
  • lower - RX-654H

23 IR54680772

  • IR54680772 - PIPE PROTECT ASSY
  • pipe - Model BR72 & RX-754H - W/Ref. 21-25

24 IR59841403

  • IR59841403 - PROTECT PIPE
  • pipe - RX-654H - W/Ref. 21-25

25 IR58898263

  • IR58898263 - OIL GAUGE

26 IR59831123

  • IR59831123 - PLUG

27 IR59831131

  • IR59831131 - PACKING

28 IR54680780

  • IR54680780 - O-RING
  • Model BR72 & RX-754H

29 IR59841254

  • IR59841254 - O-RING
  • RX-654H

30 IR54680798

  • IR54680798 - SPRING SEAT
  • Model BR72 & RX-754H

31 IR59841452

  • IR59841452 - SPRING SEAT
  • RX-654H

32 IR59838334

  • IR59838334 - O-RING
  • Model BR72 & RX-754H

33 IR59841460

  • IR59841460 - O-RING
  • RX-654H

34 IR59843391

  • IR59843391 - BOLT
  • SOCKET HEAD M10X25
  • Model BR72 & RX-754H

35 IR59831800

  • IR59831800 - LOCKWASHER
  • Model BR72 & RX-754H

36 IR54680806

  • IR54680806 - FOOT BLOCK
  • Model BR72 & RX-754H

37 IR59832287

  • IR59832287 - BOLT
  • Model BR72 & RX-754H

38 IR59951632

  • IR59951632 - SPRING WASHE
  • Model BR72 & RX-754H - Was IR59510065

39 IR59188409

  • IR59188409 - SOCKET HEAD BOLT
  • Model BR72 & RX-754H

40 IR59836338

  • IR59836338 - SOCKET HEAD CAPSCREW
  • RX-654H

41 IR59831560

  • IR59831560 - LOCKWASHER

42 IR54680822

  • IR54680822 - FOOT PLATE AND BOLT ASSY
  • foot plate & bolt - Model BR72 & RX-754H - W/Ref. 43

43 IR54680814

  • IR54680814 - FOOT PLATE AND BOLT ASSY
  • foot plate & bolt - RX-654H - W/Ref. 43

44 IR54680830

  • IR54680830 - FOOT PLATE ASSY
  • Model BR72 & RX-754H - W/Ref. 37-41

45 IR59188078

  • IR59188078 - PLATE
  • FOOT STD
  • RX-654H - W/Ref. 37-41

46 IR59188086

  • IR59188086 - BOLT
  • FLUSH

47 IR59834721

  • IR59834721 - NYLON NUT

48 IR59951632

  • IR59951632 - SPRING WASHE
  • Was IR59510065

49 IR59188102

  • IR59188102 - WASHER

50 IR59951632

  • IR59951632 - SPRING WASHE
  • Was IR59510065

51 IR59188094

  • IR59188094 - NUT
  • EYE

52 IR54686142

  • IR54686142 - BOLT ASSY FLUSH
  • flush - Model BR72 & RX-754H - W/Ref. 45-47

53 IR54682554

  • IR54682554 - BOLT ASSY FLUSH
  • flush - RX-654H - W/Ref. 45-47

54 IR58836982

  • IR58836982 - BOLT
  • FLUSH
  • Model BR72 & RX-754H

55 IR59841551

  • IR59841551 - FLUSH BOLT B
  • RX-654H

56 IR59840454

  • IR59840454 - NYLON NUT

57 IR59237388

  • IR59237388 - WASHER
  • WAVE

58 IR59841569

  • IR59841569 - BOLT
  • RX-654H
