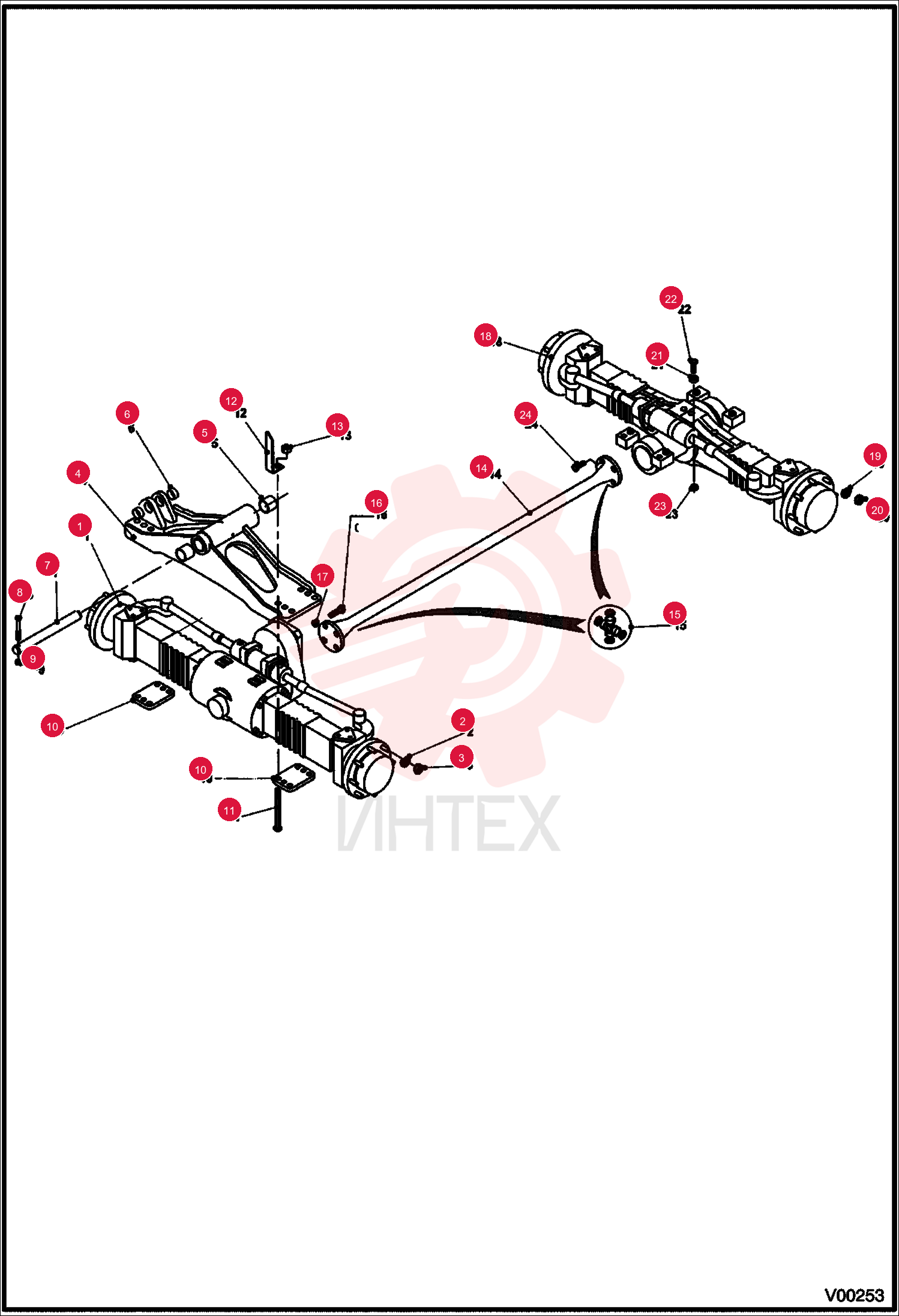

FRONT AXLE 88197-9 (1)

FRONT AXLE 88197-9 (1)

FRONT AXLE 88197-9 (1)

1 88197-9

  • 88197-9 - FRONT AXLE

2 100349-02C

  • 100349-02C - WASHER

3 100345-41K

  • 100345-41K - NUT

4 6910650

  • 6910650 - SUPPORT AXLE

5 70811-5

  • 70811-5 - BUSHING BEARING 50X55 L 50

6 32974-8

  • 32974-8 - BUSH

7 92041-3

  • 92041-3 - BEAM SPINDLE

8 65397-2

  • 65397-2 - SCREW

9 7252655

  • 7252655 - NUT LOCK

10 101241-25J

  • 101241-25J - AXLE FIX PLATE

11 92099-1

  • 92099-1 - SCREW

12 92175-9

  • 92175-9 - VIEWER
  • HORIZNTL

13 100345-20M

  • 100345-20M - NUT

14 77624-5

  • 77624-5 - TRANSMISSION SHAFT

15 75658-5

  • 75658-5 - CROSSPIECE

16 100338-15V

  • 100338-15V - SCREW

17 100345-11C

  • 100345-11C - NUT

18 88198-7

  • 88198-7 - REAR AXLE

19 94670-7

  • 94670-7 - REAR AXLE

20 100349-02C

  • 100349-02C - WASHER

21 100345-41K

  • 100345-41K - NUT

22 33107-4

  • 33107-4 - WASHER

23 57734-6

  • 57734-6 - SCREW

24 100345-20M

  • 100345-20M - NUT

25 66425-0

  • 66425-0 - SCREW
