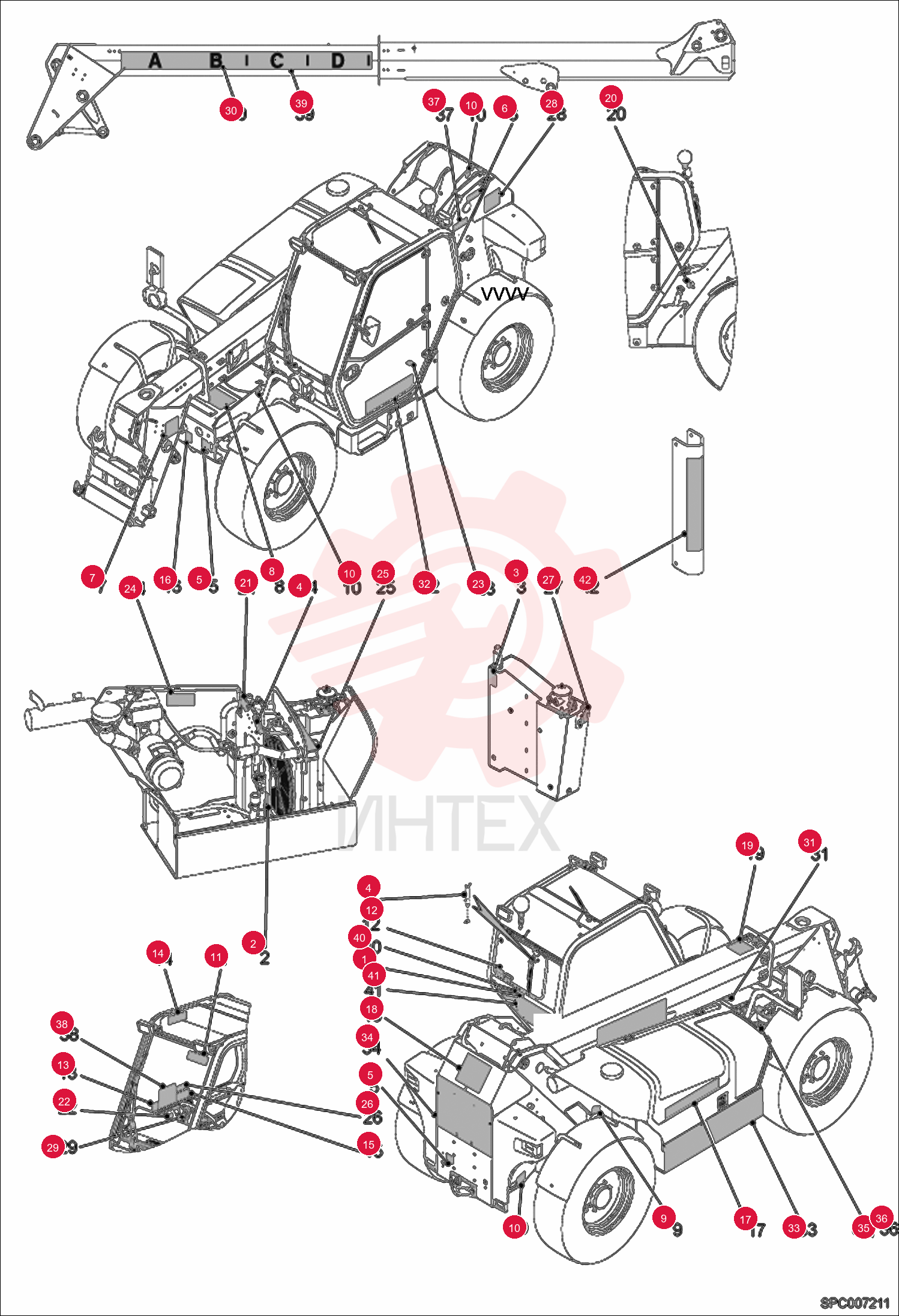

RIVET 43824-2

RIVET 43824-2

RIVET 43824-2

1 43824-2

  • 43824-2 - RIVET

2 6565200_J

  • 6565200_J - DECAL WARNING

3 6565200

  • 6565200 - DECAL
  • FILTER

4 6565990

  • 6565990 - DECAL
  • OIL HYD 5

5 6577754

  • 6577754 - DECAL
  • WARNING 5

6 6595014

  • 6595014 - DECAL

7 6735864

  • 6735864 - DECAL IR

8 6809606

  • 6809606 - DECAL
  • WARNING

9 6809607

  • 6809607 - DECAL
  • DANGER

10 6809608

  • 6809608 - DECAL
  • WARNING

11 6809609

  • 6809609 - DECAL
  • LIFT

12 6809610

  • 6809610 - DECAL
  • DANGER

13 6809611

  • 6809611 - DECAL
  • EXIT

14 6809613

  • 6809613 - DECAL
  • WARING

15 6809614

  • 6809614 - DECAL
  • WARNING

16 6809617

  • 6809617 - DECAL
  • HYD ATTACH

17 6809622

  • 6809622 - DECAL
  • WARNING

18 6809628

  • 6809628 - DECAL
  • TURBO DIESEL

19 6809630

  • 6809630 - DECAL
  • LOGO

20 6809631

  • 6809631 - DECAL
  • LOGO

21 6810677

  • 6810677 - DECAL
  • DISCONNECT

22 6810678

  • 6810678 - DECAL
  • TOWING

23 6810683

  • 6810683 - DECAL
  • START

24 6811006

  • 6811006 - DECAL
  • WASHER FLUID

25 6811054

  • 6811054 - DECAL

26 6815915

  • 6815915 - DECAL

27 6908056

  • 6908056 - DECAL
  • WARNING

28 6910594

  • 6910594 - DECAL
  • OIL LEVEL

29 6911376

  • 6911376 - DECAL WARNING

30 6913527

  • 6913527 - DECAL FRAME

31 6914653

  • 6914653 - LETTERS
  • ADHESIVE

32 7247079

  • 7247079 - TREAD
  • SAFETY

33 6916056

  • 6916056 - DECAL
  • LOGO BOBCAT AND HEAD

34 6916057

  • 6916057 - DECAL
  • LOGO BOBCAT AND HEAD

35 6916058

  • 6916058 - DECAL

36 6916450

  • 6916450 - RIVET

37 6917966

  • 6917966 - Serial number plate V638

38 6917965

  • 6917965 - Seriel number plate V638

39 6918109

  • 6918109 - DECAL

40 6918110

  • 6918110 - DECAL CONTROLS

41 6918111

  • 6918111 - DECAL LOGO

42 6918137

  • 6918137 - PLATE

43 6918234

  • 6918234 - DECAL SERVICE

44 6918255

  • 6918255 - DECAL DANGER
