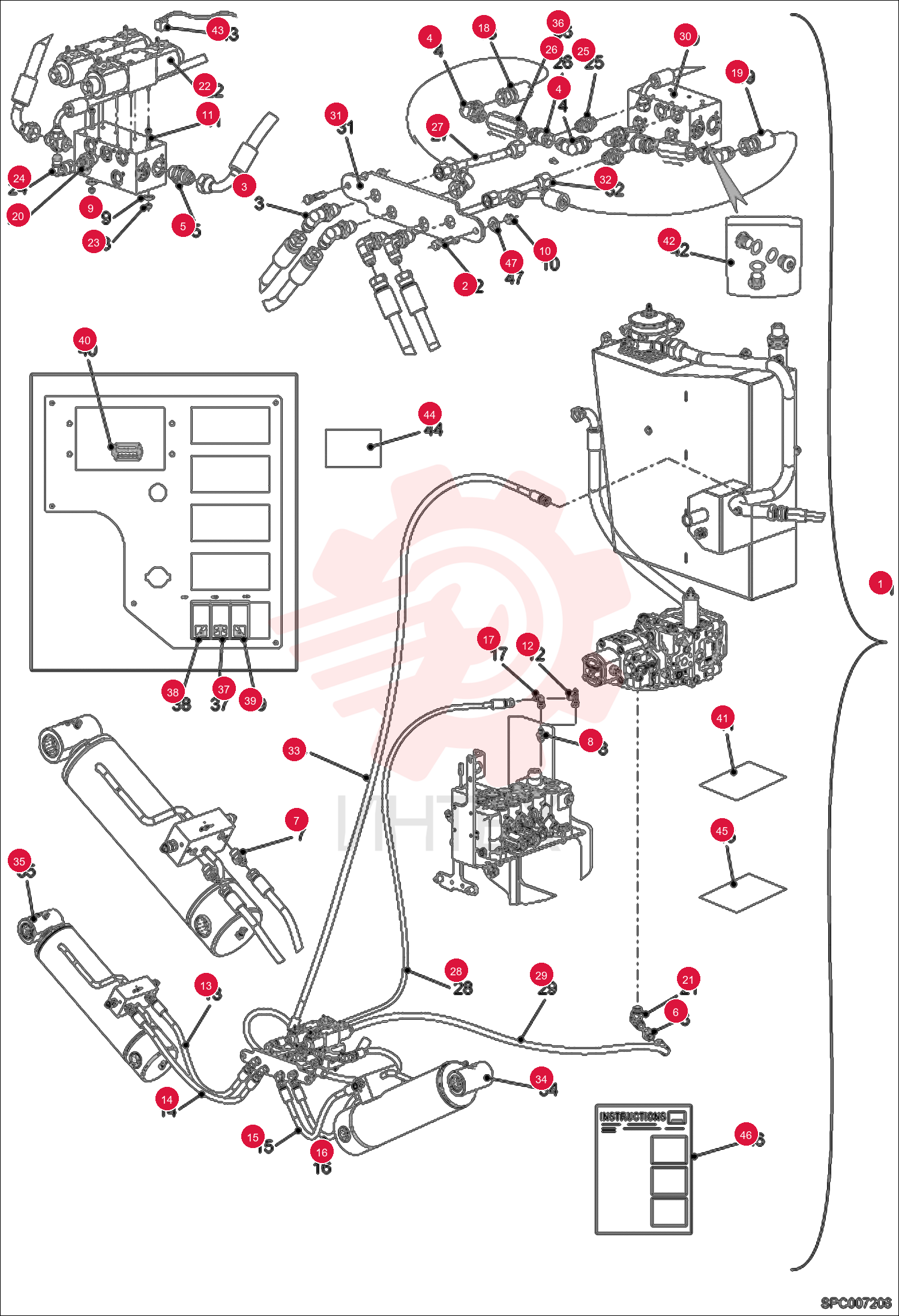

STAB KIT 6918006 (1)

STAB KIT 6918006 (1)

STAB KIT 6918006 (1)

1 6918006

  • 6918006 - STAB KIT

2 01578-4

  • 01578-4 - SCREW

3 010370-87T

  • 010370-87T - ELBOW PIECE

4 7229301

  • 7229301 - FITTING HYDRAULIC ELBOW

5 7244942

  • 7244942 - FITTING HYDRAULIC CONNECTOR

6 014375-99H

  • 014375-99H - REDUCER

7 7239254

  • 7239254 - FITTING

8 022375-28V

  • 022375-28V - UNION

9 01681-6

  • 01681-6 - NUT

10 98897-2

  • 98897-2 - SCREW

11 69485-1

  • 69485-1 - TEE

12 6934802

  • 6934802 - HOSE

13 6934802

  • 6934802 - HOSE

14 6934802

  • 6934802 - HOSE

15 6934802

  • 6934802 - HOSE

16 72294-2

  • 72294-2 - ELBOW UNION

17 74466-4

  • 74466-4 - HOSE

18 74466-4

  • 74466-4 - HOSE

19 77013-1

  • 77013-1 - UNION

20 80732-1

  • 80732-1 - T MALE 1.1/16JIC 3/4 BSPP

21 98375-9

  • 98375-9 - ELECTRO

22 7248549

  • 7248549 - NUT

23 100370-29P

  • 100370-29P - ELBOW PIECE

24 7229423

  • 7229423 - FITTING

25 100375-42W

  • 100375-42W - ADAPTER

26 6909156

  • 6909156 - HYDRAULIC PIPE

27 6910786

  • 6910786 - HOSE

28 6911054

  • 6911054 - HOSE

29 6911079

  • 6911079 - HYDRAULIC BLOCK

30 6912428

  • 6912428 - PLATE

31 6913027

  • 6913027 - HYDRAULIC PIPE

32 6913651

  • 6913651 - HOSE

33 6914691

  • 6914691 - NO RETURN VALVE

34 6910558

  • 6910558 - SWITCH LOCK STABILISATOR

35 6910560

  • 6910560 - SWITCH LEFT STABILISATOR

36 6910561

  • 6910561 - SWITCH RIGHT STABILISATOR

37 6918236

  • 6918236 - SHUNT

38 6904941

  • 6904941 - STAB KIT INSTRUCTIONS

39 6912535

  • 6912535 - SET OF PLUG

40 6910892

  • 6910892 - HARNESS
  • WIRE

41 6918676

  • 6918676 - STABILIZER WARNING DECAL

42 6918877

  • 6918877 - ATTACHMENTS
  • AUGER 15C-30C ANGL BRM V638

43 6918878

  • 6918878 - GENERAL PURPOSE BUCKET 90

44 6918879

  • 6918879 - COMBO BUCKET 90

45 6918880

  • 6918880 - UTILITY BUCKET

46 6918897

  • 6918897 - COVER CHART V638 W/STABILIZER

47 6918894

  • 6918894 - THRUST BOOM 12

48 6918893

  • 6918893 - TILT CARRIAGE FRAME 48'' 60''

49 6918892

  • 6918892 - PALLET FORK FRAME 72''

50 6918891

  • 6918891 - PALLET FORK FRAME 48''

51 6918889

  • 6918889 - UTILITY BUCKET

52 6918888

  • 6918888 - COMBO BUCKET 90'' 1.25 YD

53 6918887

  • 6918887 - GENERAL PURPOSE BUCKET 90'' 1.25 YD

54 6918886

  • 6918886 - ATTACHMENTS
  • AUGER 15C-30C ANGL BRM V638

55 6918885

  • 6918885 - TRUSS BOOM 12''

56 6918884

  • 6918884 - TILT CARRIAGE FRAME 49'' 60''

57 6918883

  • 6918883 - PALLET FORK FRAME 72''

58 6918882

  • 6918882 - PALLET FORK FRAME 48''

59 6904941

  • 6904941 - STAB KIT INSTRUCTIONS

60 000350-20Q

  • 000350-20Q - WASHER
