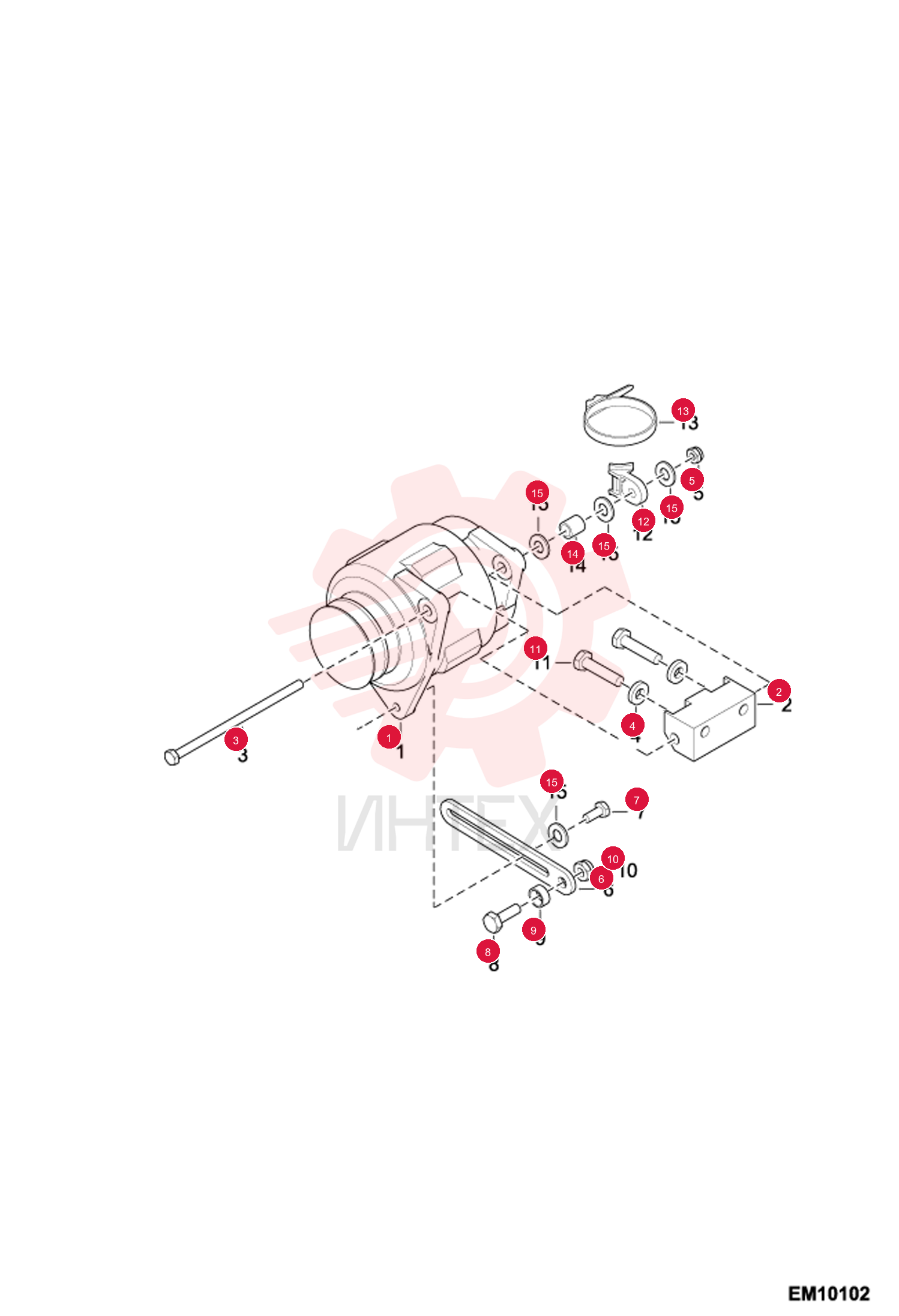

ALTERNATOR N.A 100 AMP (U.S.) 6911378 (1)

ALTERNATOR N.A 100 AMP (U.S.) 6911378 (1)

ALTERNATOR N.A 100 AMP (U.S.) 6911378 (1)

1 6911378

  • 6911378 - ALTERNATOR N.A 100 AMP (U.S.)

2 7270428

  • 7270428 - BRACKET

3 57506-8

  • 57506-8 - SCREW

4 1EM100

  • 1EM100 - WASHER PLAIN

5 01681-6

  • 01681-6 - NUT

6 4CM825

  • 4CM825 - BOLT HEX HEAD

7 01522-2

  • 01522-2 - SCREW

8 6911384

  • 6911384 - SPACER

9 7252655

  • 7252655 - NUT LOCK

10 1CM1045

  • 1CM1045 - BOLT

11 6679034

  • 6679034 - MOUNT

12 6624289

  • 6624289 - STRAP
  • TIE

13 6910771

  • 6910771 - WASHER

14 000350-02V

  • 000350-02V - WASHER
