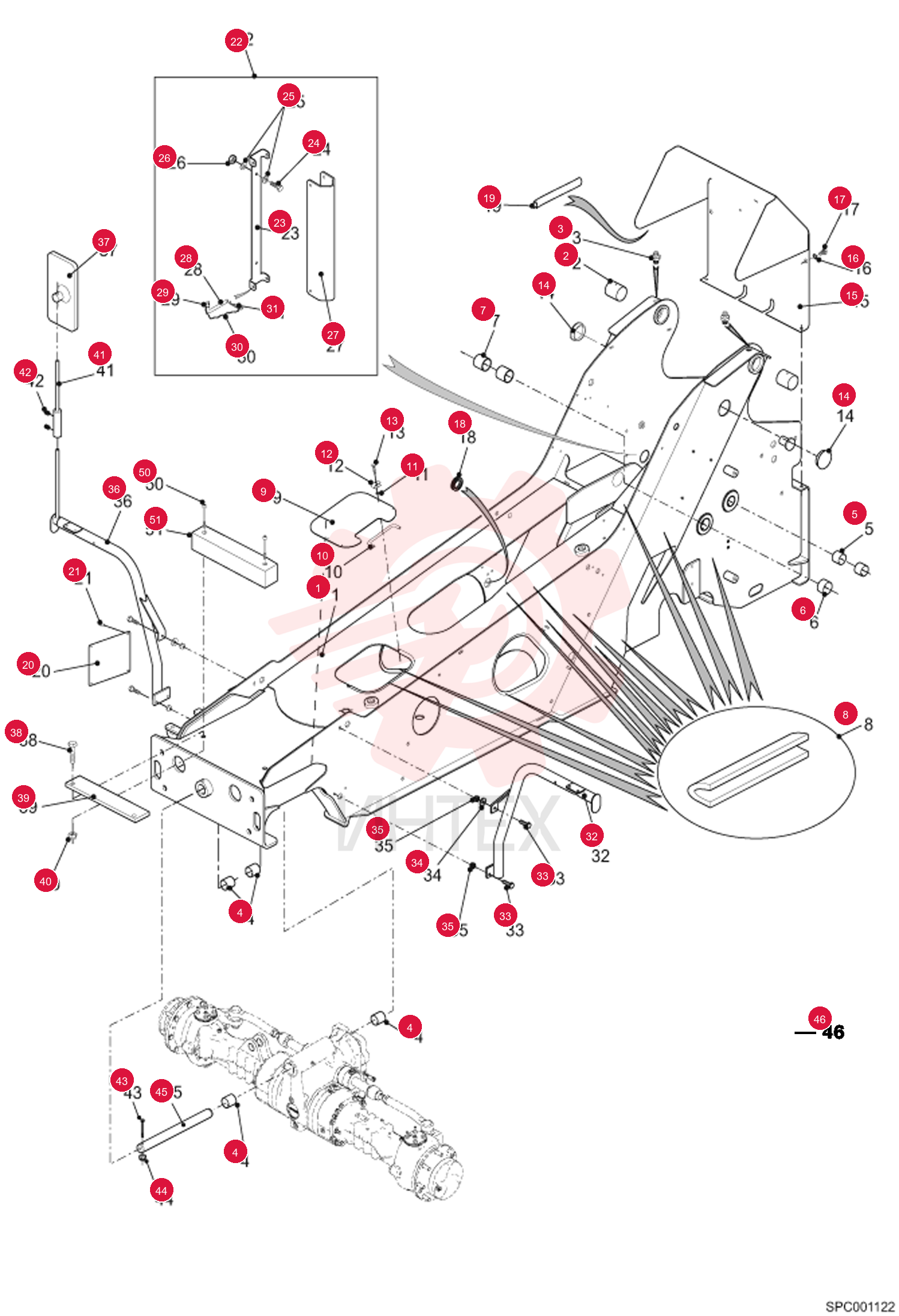

FRAME
1 6918216
- 6918216 - FRAME
2 7213359
- 7213359 - BEARING SWING ID70L80
3 01775-6
- 01775-6 - GREASE NIPPLE
4 70811-5
- 70811-5 - BUSHING BEARING 50X55 L 50
5 6909439
- 6909439 - BUSHING
6 6910302
- 6910302 - BUSH
7 6910303
- 6910303 - BUSH
8 7229363
- 7229363 - GASKET
- BULK
9 79123-6
- 79123-6 - PLATE
10 79129-3
- 79129-3 - SEAL
11 13415-5
- 13415-5 - WASHER
12 79124-4
- 79124-4 - NUT
13 010338-02X
- 010338-02X - SCREW
14 6909712
- 6909712 - HYDRAULIC OPERATION
15 6914638
- 6914638 - BONNET REAR
16 01719-4
- 01719-4 - WASHER
17 01604-8
- 01604-8 - SCREW
18 79288-7
- 79288-7 - GROMMET ASM56-38-46-10
19 7196170
- 7196170 - GASKET
20 6916450
- 6916450 - RIVET
21 6912354
- 6912354 - RAM ABUTMENT ASSY
22 96344-7
- 96344-7 - STOP
23 4CM825
- 4CM825 - BOLT HEX HEAD
24 01697-2
- 01697-2 - WASHER
25 01681-6
- 01681-6 - NUT
26 96338-9
- 96338-9 - STOP
27 7215740
- 7215740 - PIN
- LOCK
28 7168942
- 7168942 - RING
29 7215741
- 7215741 - CHAIN
30 95218-4
- 95218-4 - PIN
31 6915265
- 6915265 - SUPPORT LIGHT LH
32 1CM1035
- 1CM1035 - BOLT
33 000350-21R
- 000350-21R - WASHER
34 7252655
- 7252655 - NUT LOCK
35 6915264
- 6915264 - SUPPORT LIGHT RH
36 100432-51C
- 100432-51C - MIRROR
- SIDE REAR
37 1CM1040
- 1CM1040 - BOLT
38 6913019
- 6913019 - ARM ABUTMENT
39 7252655
- 7252655 - NUT LOCK
40 6914566
- 6914566 - EXTENSION MIRROR
41 6910619
- 6910619 - SCREW
42 7CM10100
- 7CM10100 - SCREW HEX HD 10.9
43 7252655
- 7252655 - NUT LOCK
44 7247000
- 7247000 - PIN
45 32974-8
- 32974-8 - BUSH
46 7253847
- 7253847 - SCREW
47 7253846
- 7253846 - SUPPORT
- BOOM
