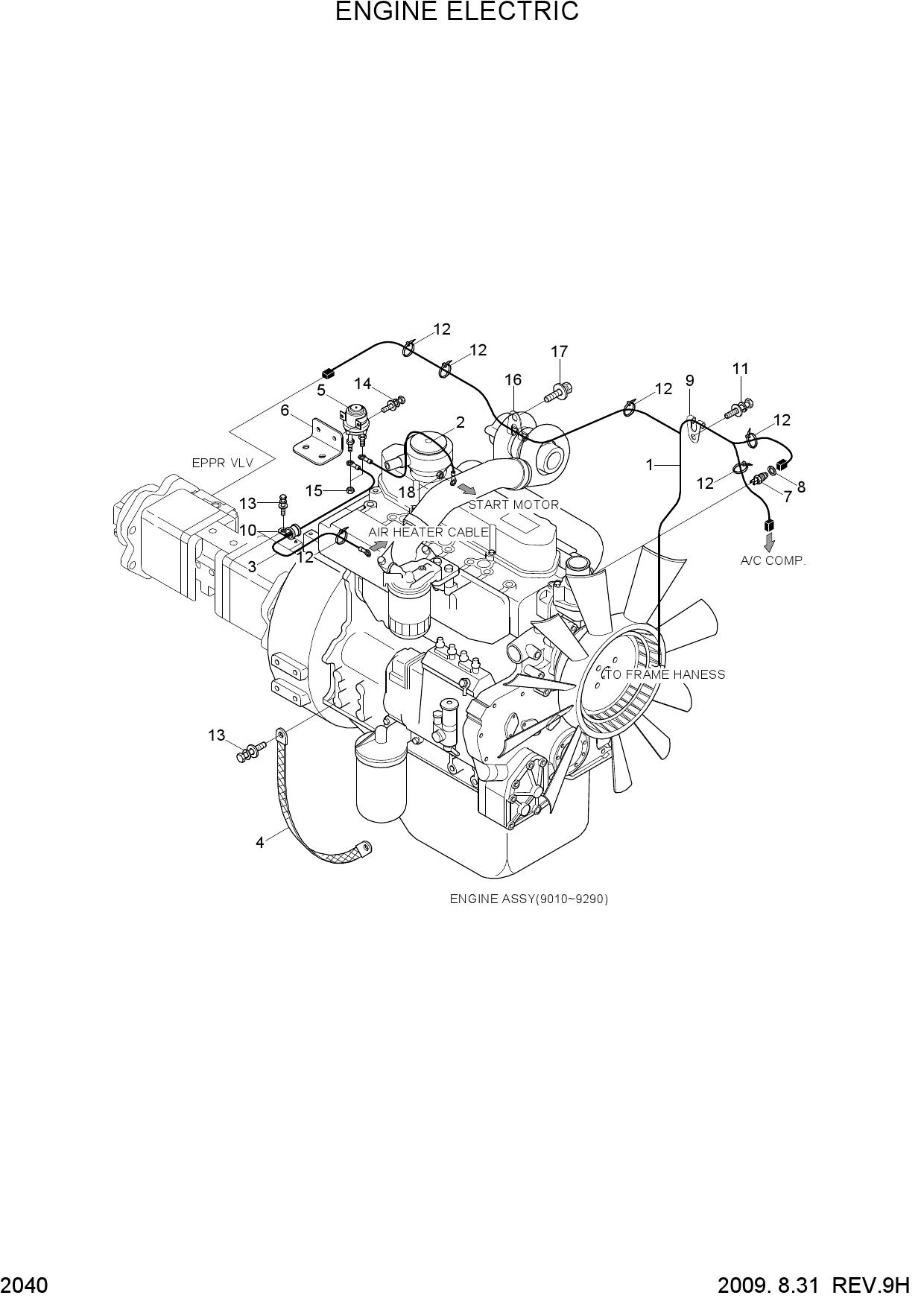

ENGINE ELECTRIC
1 21N3-10050
- 21N3-10050 - HARNESS-ENGINE
- Поз.: 1
2 21EA-50550
- 21EA-50550 - DIODE
- Поз.: 1-1
3 21N3-10060
- 21N3-10060 - CABLE(START-HEATER RY)
- Поз.: 2
4 21N3-10071
- 21N3-10071 - CABLE(HEATER-HEATER RY)
- Поз.: 3
5 21L8-30720
- 21L8-30720 - STRAP-EARTH
- Поз.: 4
6 E225-0006
- E225-0006 - RELAY-HEATER
- Поз.: 5
7 21N3-10400
- 21N3-10400 - PLATE(PRE-HEATER RELAY)
- Поз.: 6
8 21EA-62010
- 21EA-62010 - SENDER-WATER TEMP
- Поз.: 7
9 P392-160000
- P392-160000 - WASHER-COPPER
- Поз.: 8
10 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 9
11 S543-120002
- S543-120002 - CLAMP-TUBE
- Поз.: 10
12 S035-081522
- S035-081522 - BOLT-W/WASHER
- Поз.: 11
13 S552-035146
- S552-035146 - CLAMP-BAND
- Поз.: 12
14 S037-102022
- S037-102022 - BOLT-W/WASHER
- Поз.: 13
15 S035-061522
- S035-061522 - BOLT-W/WASHER
- Поз.: 14
16 S205-061002
- S205-061002 - NUT-HEX
- Поз.: 15
17 S037-122052
- S037-122052 - BOLT-W/WASHER
- Поз.: 16
18 21E9-00170
- 21E9-00170 - CLIP-HARNESS
- Поз.: 17
19 S203-050002
- S203-050002 - NUT-HEX
- Поз.: 18
