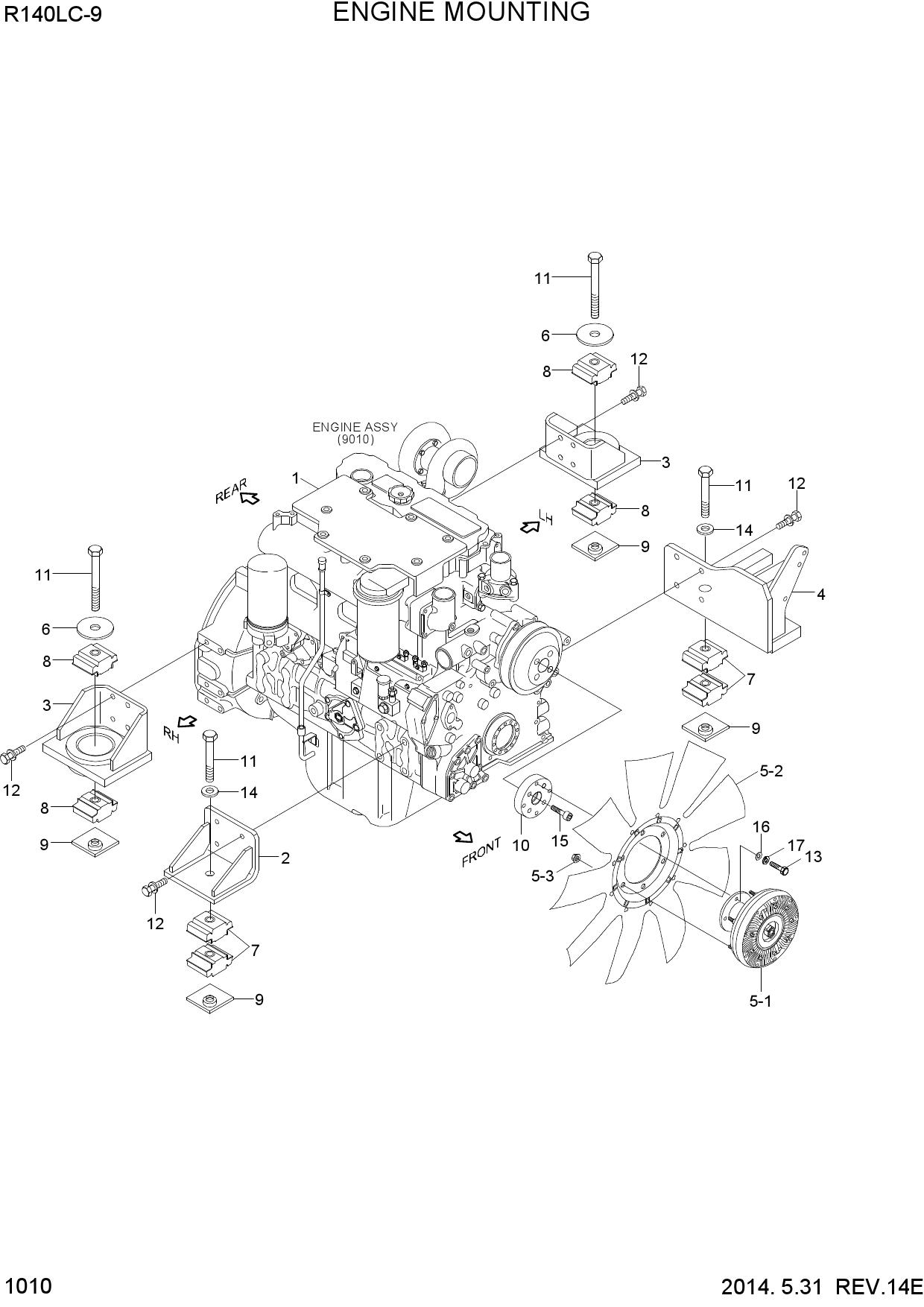

ENGINE MOUNTING
1 11Q4-01012
- 11Q4-01012 - ENGINE ASSY
- Поз.: 1
2 11Q4-01020
- 11Q4-01020 - ENGINE ASSY
- Поз.: 1
3 11Q4-01030
- 11Q4-01030 - ENGINE ASSY
- Поз.: 1
4 11Q4-00120
- 11Q4-00120 - BRACKET
- Поз.: 2
5 11Q4-00130
- 11Q4-00130 - BRACKET
- Поз.: 3
6 11Q4-00110
- 11Q4-00110 - BRACKET-COMP
- Поз.: 4
7 11Q6-00380
- 11Q6-00380 - FAN CLUTCH ASSY
- Поз.: 5
8 11Q6-00381
- 11Q6-00381 - FAN CLUTCH ASSY
- Поз.: 5
9 11Q6-01180
- 11Q6-01180 - CLUTCH-FAN
- Поз.: 5-1
10 11Q6-01220
- 11Q6-01220 - FAN-COOLING
- Поз.: 5-2
11 S285-081006
- S285-081006 - NUT-FLANGED
- Поз.: 5-3
12 11N4-00060-DA
- 11N4-00060-DA - WASHER-MOUNT
- Поз.: 6
13 11Q4-10450
- 11Q4-10450 - RUBBER-MOUNT
- Поз.: 7
14 11Q4-10460
- 11Q4-10460 - RUBBER-MOUNT
- Поз.: 8
15 11N4-00160
- 11N4-00160 - NUT-STOPPER
- Поз.: 9
16 11Q4-04000
- 11Q4-04000 - SPACER
- Поз.: 10
17 S017-201356
- S017-201356 - BOLT-HEX
- Поз.: 11
18 S037-123056
- S037-123056 - BOLT-W/WASHER
- Поз.: 12
19 S027-100306
- S027-100306 - BOLT-MINI HEX
- Поз.: 13
20 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 14
21 S109-100206
- S109-100206 - BOLT-SOCKET
- Поз.: 15
22 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 16
23 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 17
