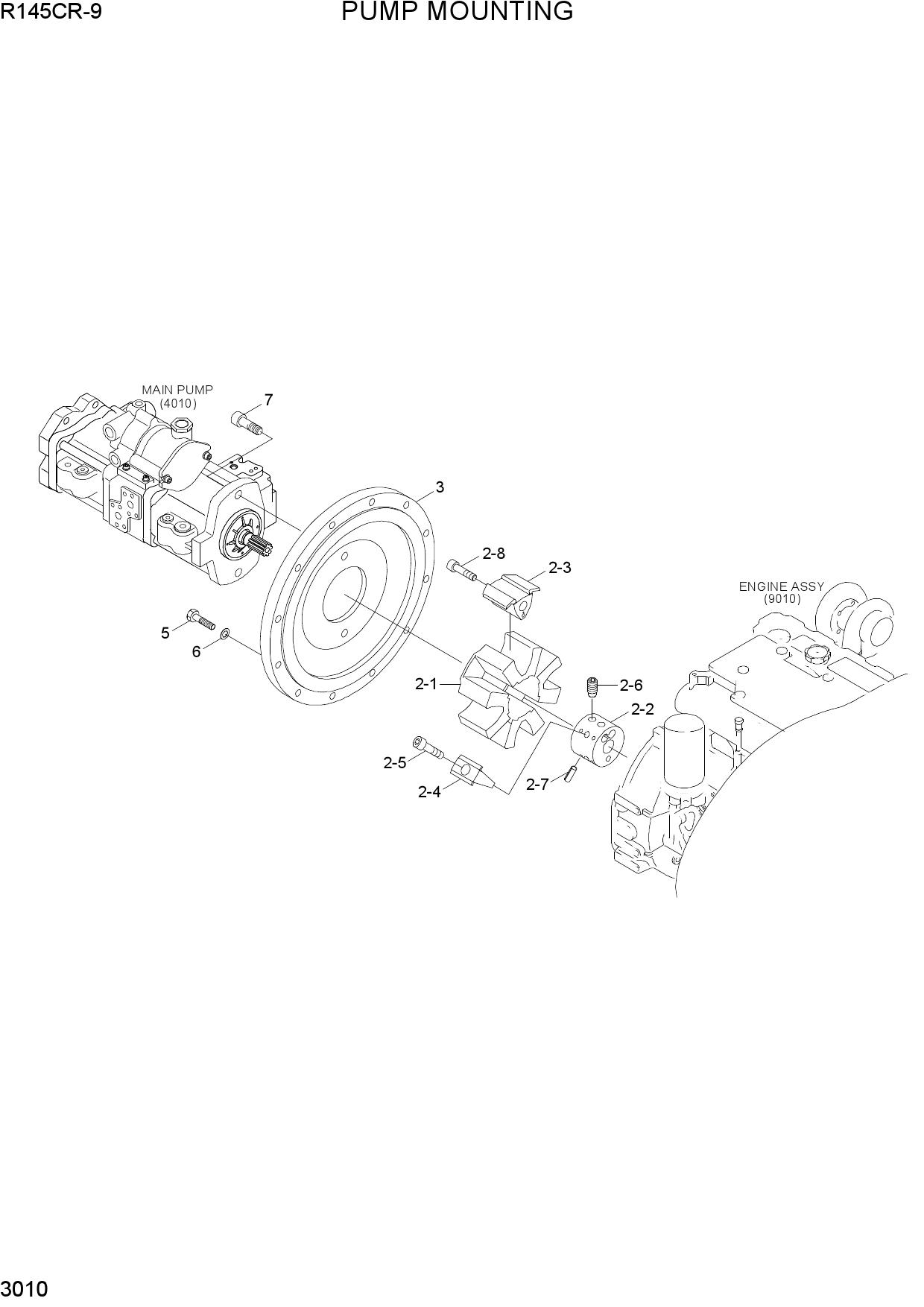

PUMP MOUNTING
1 11N3-16030
- 11N3-16030 - COUPLING ASSY
- Поз.: 2
2 13E6-16040
- 13E6-16040 - ELEMENT
- Поз.: 2-1
3 11N3-16010
- 11N3-16010 - HUB
- Поз.: 2-2
4 13E6-16050
- 13E6-16050 - INSERT-A
- Поз.: 2-3
5 13E6-16060
- 13E6-16060 - INSERT-R
- Поз.: 2-4
6 S107-160402
- S107-160402 - BOLT-SOCKET
- Поз.: 2-5
7 11E1-1511
- 11E1-1511 - BOLT-CLAMP
- Поз.: 2-6
8 S472-500102
- S472-500102 - PIN-SPRING
- Поз.: 2-7
9 S107-160602
- S107-160602 - BOLT-SOCKET
- Поз.: 2-8
10 11Q4-16000
- 11Q4-16000 - HOUSING
- Поз.: 3
11 S017-100556
- S017-100556 - BOLT-HEX
- Поз.: 5
12 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 6
13 S109-16045D
- S109-16045D - BOLT-SOCKET
- Поз.: 7
