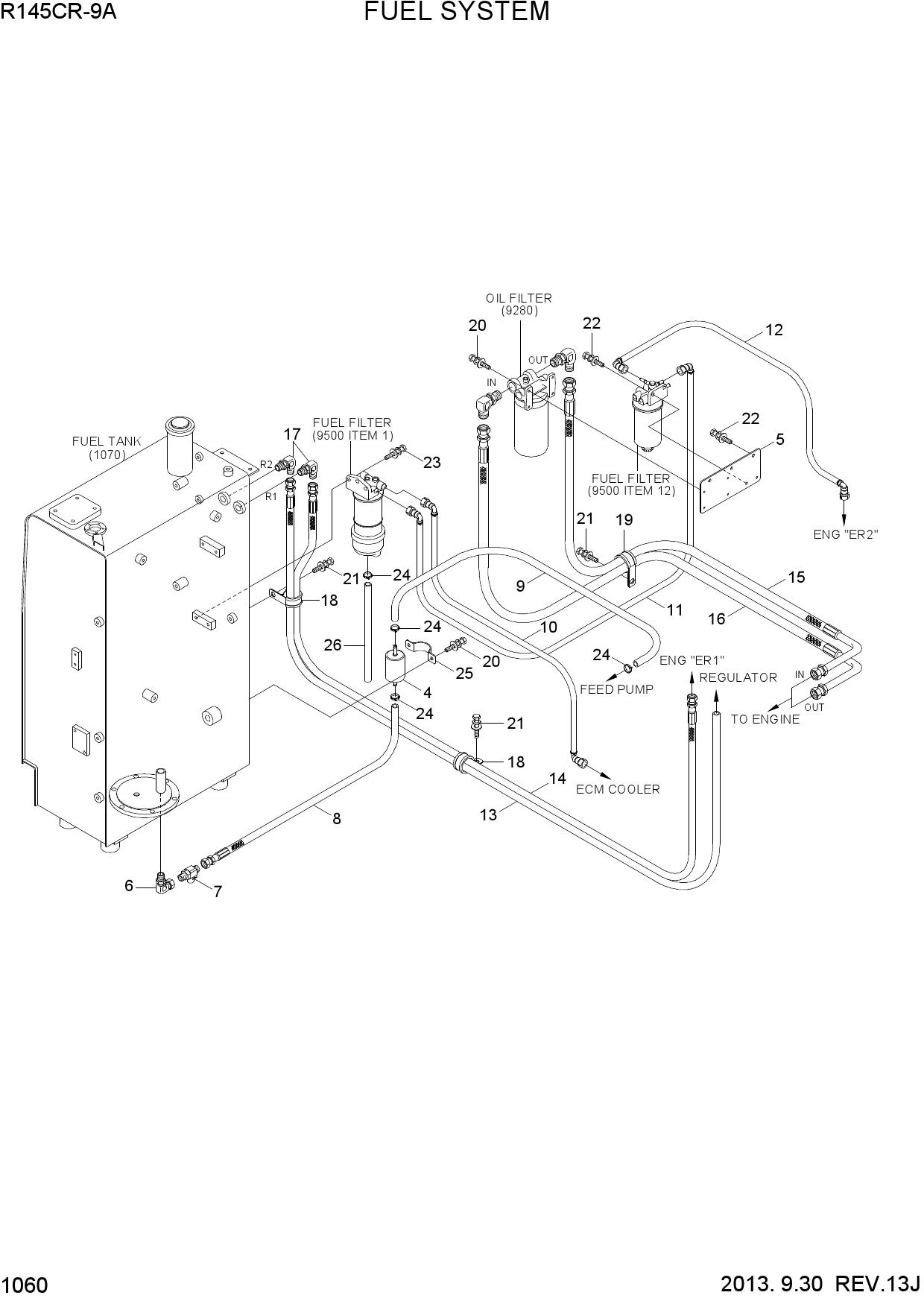

FUEL SYSTEM
1 11Q4-57270
- 11Q4-57270 - SCREEN
- Поз.: 4
2 11Q4-51120
- 11Q4-51120 - BRACKET
- Поз.: 5
3 11Q4-50030
- 11Q4-50030 - ELBOW-90
- Поз.: 6
4 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 7
5 S631-018004
- S631-018004 - O-RING
- Поз.: 7-1
6 P520-083010
- P520-083010 - HOSE-FUEL
- Поз.: 8
7 P001-095030
- P001-095030 - HOSE-FUEL
- Поз.: 9
8 11Q4-51170
- 11Q4-51170 - HOSE-FUEL
- Поз.: 10
9 11Q4-51200
- 11Q4-51200 - HOSE-FUEL
- Поз.: 11
10 11Q4-51180
- 11Q4-51180 - HOSE-FUEL
- Поз.: 12
11 11Q4-51190
- 11Q4-51190 - HOSE-FUEL
- Поз.: 13
12 11Q4-51130
- 11Q4-51130 - HOSE-FUEL
- Поз.: 14
13 11Q4-51131
- 11Q4-51131 - HOSE-FUEL
- Поз.: 14
14 11Q4-51140
- 11Q4-51140 - HOSE ASSY
- Поз.: 15
15 11Q4-51141
- 11Q4-51141 - HOSE ASSY
- Поз.: 15
16 11Q4-51150
- 11Q4-51150 - HOSE ASSY
- Поз.: 16
17 11Q4-51151
- 11Q4-51151 - HOSE ASSY
- Поз.: 16
18 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 17
19 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 18
20 31L7-10260
- 31L7-10260 - CLAMP-TUBE
- Поз.: 19
21 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 20
22 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 21
23 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 22
24 S037-103526
- S037-103526 - BOLT-W/WASHER
- Поз.: 23
25 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 24
26 11Q4-57230
- 11Q4-57230 - CLAMP-PIPE
- Поз.: 25
27 11FB-50301
- 11FB-50301 - HOSE-FUEL
- Поз.: 26
