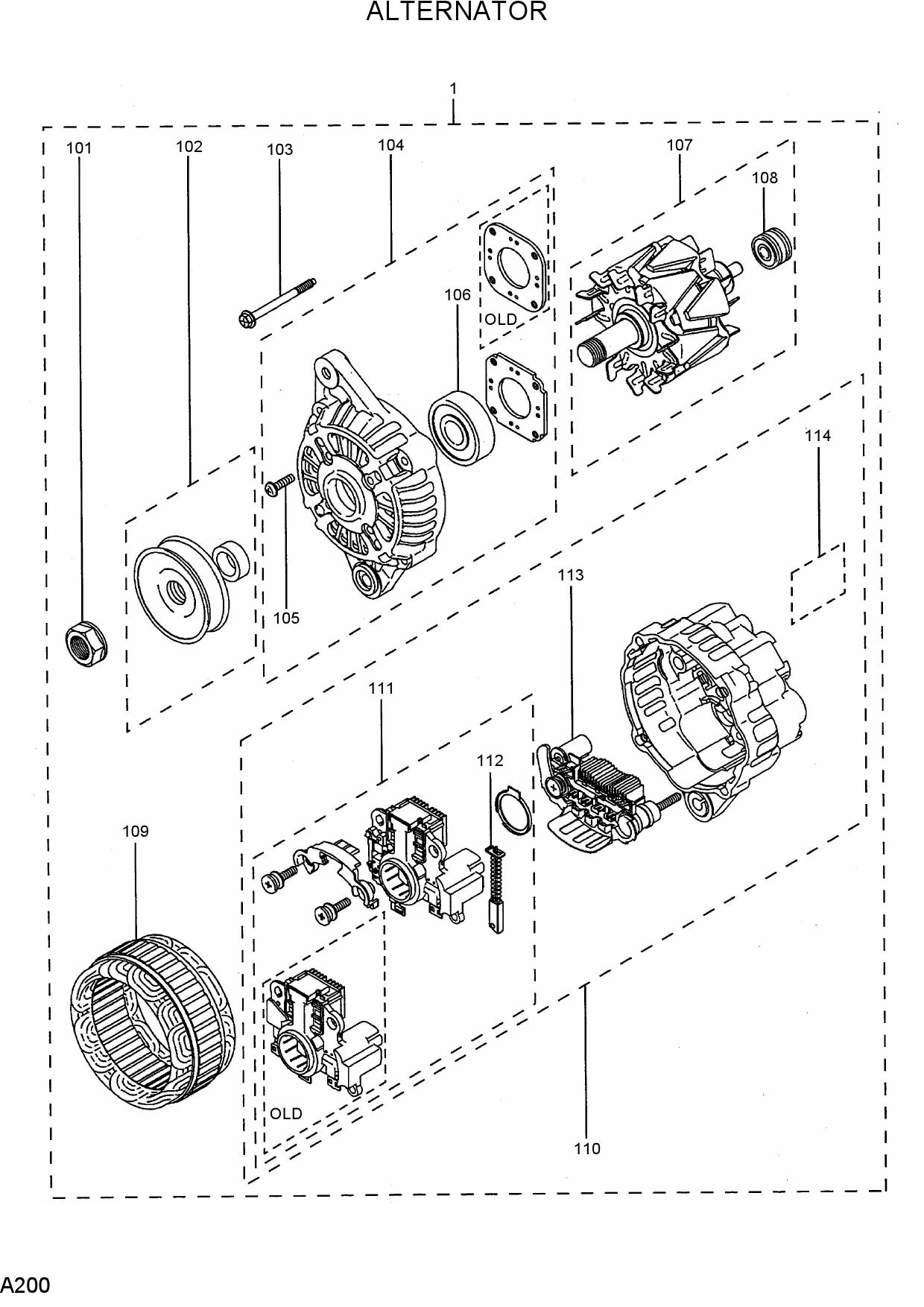

ALTERNATOR
1 XJAF-01560
- XJAF-01560 - ALTERNATOR ASSY
- Поз.: 1
2 XJAF-01851
- XJAF-01851 - NUT SET
- Поз.: 101
3 XJAF-01833
- XJAF-01833 - PULLEY ASSY
- Поз.: 102
4 XJAF-01830
- XJAF-01830 - BOLT SET-THRU
- Поз.: 103
5 XJAF-01836
- XJAF-01836 - BRACKET ASSY-FRONT
- Поз.: 104
6 XJAF-01831
- XJAF-01831 - SCREW SET
- Поз.: 105
7 XJAF-01849
- XJAF-01849 - BEARING-FRONT
- Поз.: 106
8 XJAF-01846
- XJAF-01846 - ROTOR ASSY
- Поз.: 107
9 XJAF-02234
- XJAF-02234 - BEARING-REAR
- Поз.: 108
10 XJAF-01827
- XJAF-01827 - STATOR ASSY
- Поз.: 109
11 XJAF-01839
- XJAF-01839 - BRACKET-REAR
- Поз.: 110
12 XJAF-01845
- XJAF-01845 - REGULATOR SET
- Поз.: 111
13 XJAF-01841
- XJAF-01841 - BRUSH SET
- Поз.: 112
14 XJAF-01844
- XJAF-01844 - RECTIFIER ASSY
- Поз.: 113
15 XJAF-00547
- XJAF-00547 - NUT SET
- Поз.: 114
