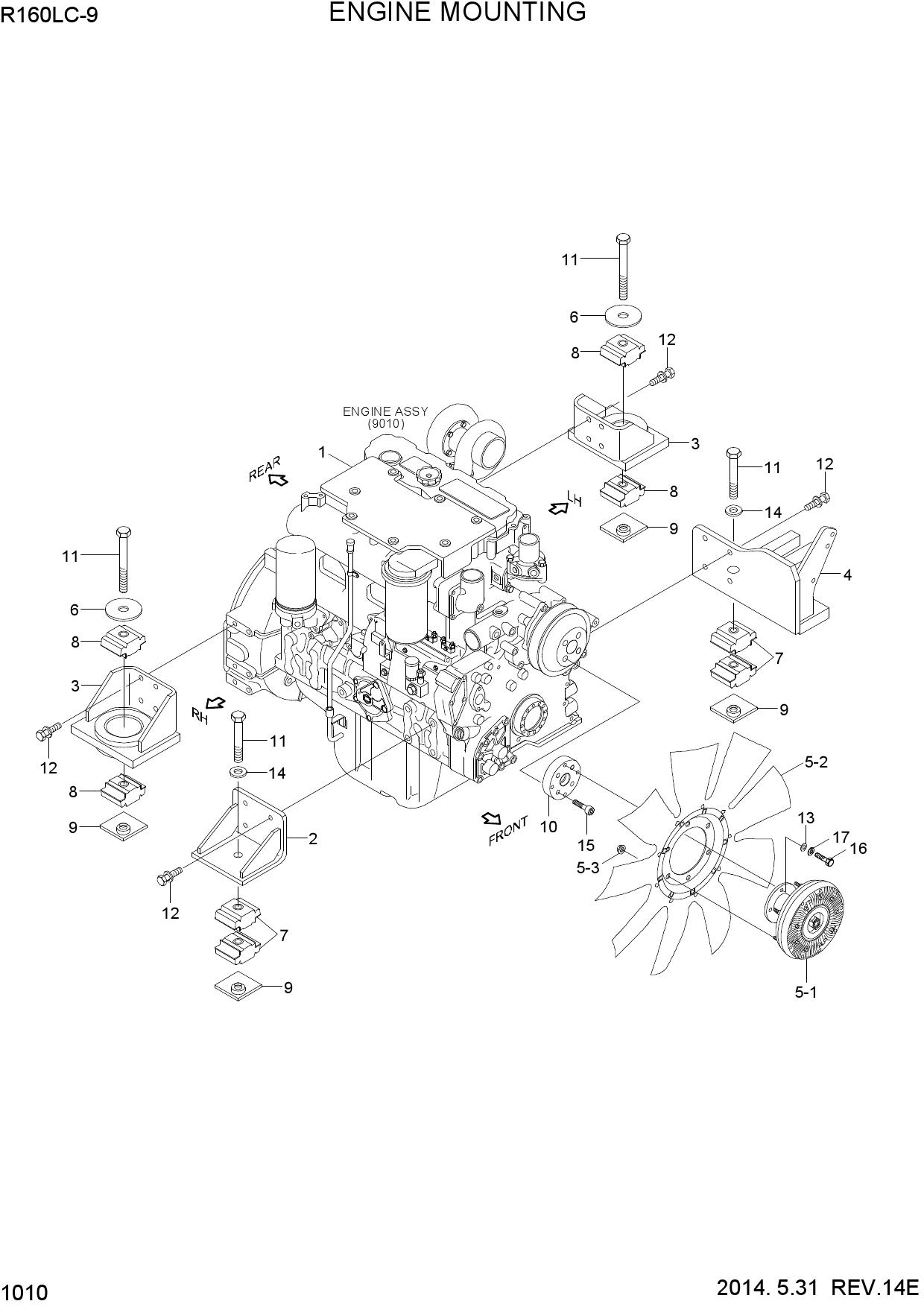

ENGINE MOUNTING
1 11Q5-00011
- 11Q5-00011 - ENGINE ASSY
- Поз.: 1
2 11Q5-00030
- 11Q5-00030 - ENGINE ASSY
- Поз.: 1
3 11Q4-00120
- 11Q4-00120 - BRACKET
- Поз.: 2
4 11Q4-00130
- 11Q4-00130 - BRACKET
- Поз.: 3
5 11Q4-00110
- 11Q4-00110 - BRACKET-COMP
- Поз.: 4
6 11Q6-00360
- 11Q6-00360 - FAN CLUTCH ASSY
- Поз.: 5
7 11Q6-00361
- 11Q6-00361 - FAN CLUTCH ASSY
- Поз.: 5
8 11Q6-01190
- 11Q6-01190 - CLUTCH-FAN
- Поз.: 5-1
9 11Q6-01230
- 11Q6-01230 - FAN-COOLING
- Поз.: 5-2
10 S285-081006
- S285-081006 - NUT-FLANGED
- Поз.: 5-3
11 11N4-00060-DA
- 11N4-00060-DA - WASHER-MOUNT
- Поз.: 6
12 11Q4-10450
- 11Q4-10450 - RUBBER-MOUNT
- Поз.: 7
13 11Q4-10460
- 11Q4-10460 - RUBBER-MOUNT
- Поз.: 8
14 11N4-00160
- 11N4-00160 - NUT-STOPPER
- Поз.: 9
15 11Q4-04000
- 11Q4-04000 - SPACER
- Поз.: 10
16 S017-20135D
- S017-20135D - BOLT-HEX
- Поз.: 11
17 S037-123056
- S037-123056 - BOLT-W/WASHER
- Поз.: 12
18 S403-10000B
- S403-10000B - WASHER-PLAIN
- Поз.: 13
19 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 14
20 S109-100206
- S109-100206 - BOLT-SOCKET
- Поз.: 15
21 S027-100306
- S027-100306 - BOLT-MINI HEX
- Поз.: 16
22 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 17
